M35DHW Iron Core Servo

Flash Hobby as one of the professional China M35DHW Iron Core Servo manufacturers and China M35DHW Iron Core Servo factory, we are strong strength and complete management. Also, we have own exporting license. We mainly deal in making a series of M35DHW Iron Core Servo and so on.
●Suggested Retail Price: US$23.69
●Size: 40x20x40.50mm

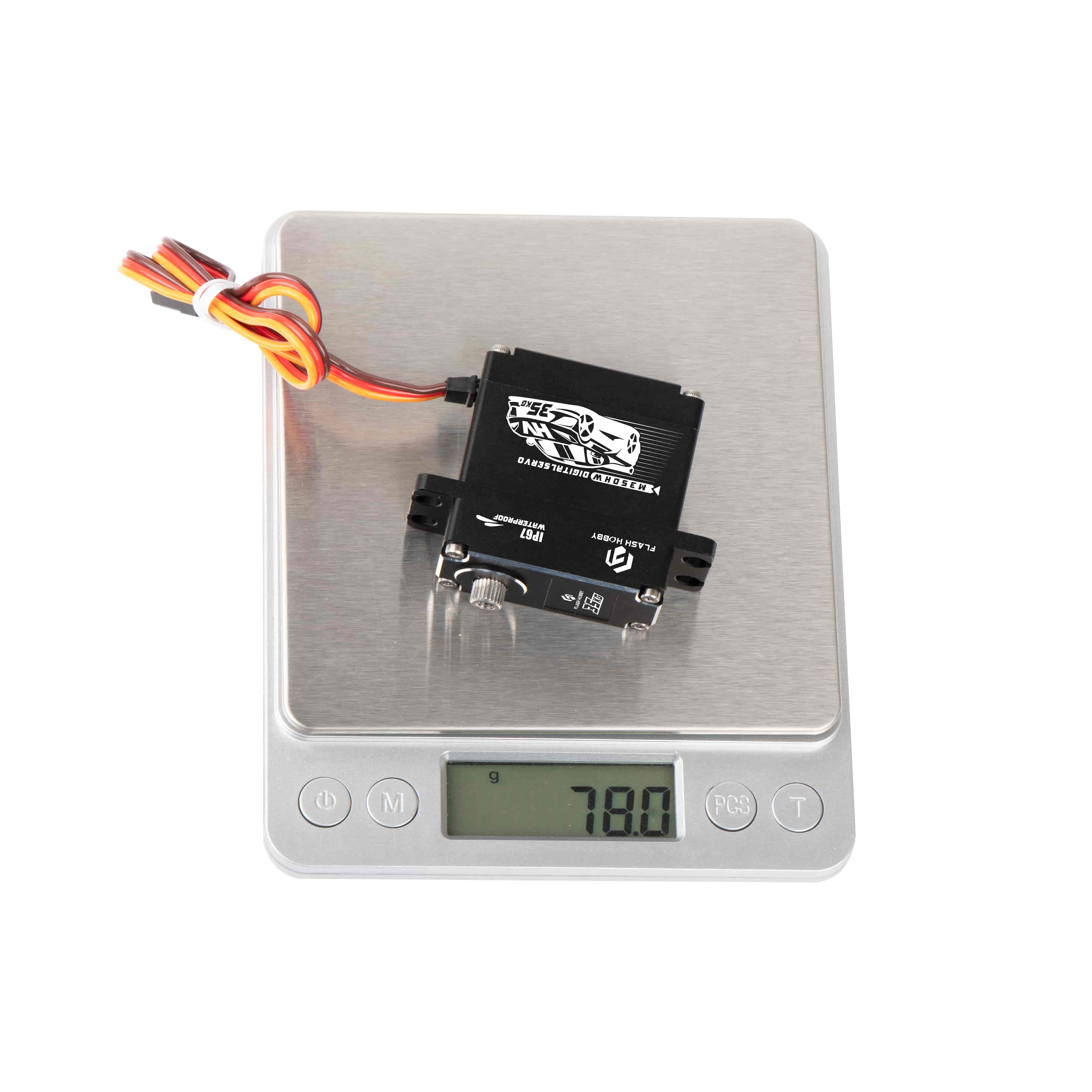

●Weight: 78g(without servo horn)
●Gear: Metal
●Torque/Speed: 24.9kg-cm/0.37sec/60°5.0V
30.0kg-cm/0.30sec/60°6.0V
35.0kg-cm/0.25sec/60°7.0V
●Motor Type: Iron Core Motor
●Signal Type: Digital Control
●Case Material: CNC AL6081 Aluminum Case
●Connector Wire Length: 300MM JR Plug

Model:M35DHW

Send Inquiry

Product Description

Hot Selling Low Price M35DHW Iron Core Servo. Flash Hobby is a M35DHW Iron Core Servo manufacturer and supplier in China.

FEATURE:

High Performance Digital Standard Servo
High Precision Steel Gear
High Quality Iron Core motor
Full CNC AL6082 Aluminium Hulls and Structure
Dual Ball Bearing
Super Long Life

Waterproof

Control System	PWM Control （1500usec in the central point）
Operation Voltage Range	4.8V -7.4V
Operation Temperature Range	-20C°~ +60C°
Circle	>80000 times without load
Operation Travel	60° ±1
Limit angle	"180°± 1 OR 270°± 1 For selection
Direction	Re-clock wise/ Pulse Travel 500— 2500 psec
Diver type	Mos Drive
Motor Type	Dc Motor
Potentiometer Type	Direct Drive
Amplifier Type	Digital Control
Dimension	40x20x40.50mm
Weight	78g （without servo horn）
Test Voltage	At 4.8V	At 6V	At 7.4V
Standing Torque	24.9kg-cm	30kg-cm	35.1kg-cm
Speed	0.37sec/60°	0.3sec/60°	0.25sec/60°
Idle Current	270mA	320mA	360mA
Running Current	1900mA	2300mA	2800mA
Dead band width	2 usee	2 usee	2 usee
Ball Bearing	2BB
Gear Material	Metal Gear
Case Material	Aluminum Case
Connector Wire Length	300MMJR Plug
Connector Wire Gauge	22AWG
Wire Info（Brown）	Negative
Wire Info （Red）	Positive
Wire Info （Yellow）	S Sinqle
