Home > Products > Servo > Magnetic Servo

Magnetic Servo

14Bit Magnetic Encoder Servo compatible with Sanwa SSR, NB4 and Futaba mode
View as

BLS3837MED 37KG BLS Servo

BLS3837MED 37KG BLS Servo

●Suggested Retail Price: US$59.60
●Size: 40x20x38.00mm
●Weight: 80g(without servo horn)
●Gear: Helical Steel Gears
●Operating speed:
0.10sec/60° @6.0V
0.08sec/60° @7.4V
0.07sec/60° @8.4V
Stall torque:
26.0kg-cm/361 oz-in @6.0V
31.0kg-cm/ 430 oz-in @7.4V
37.0kg-cm/ 514 oz-in @8.4V
●Motor Type: Brushless Motor
●Signal Type: Digital Control
●Case Material: CNC AL6061 Aluminum Case
●Connector Wire Length: 300MM JR Plug

Read MoreSend Inquiry
BLS3848MED 48KG BLS Servo

BLS3848MED 48KG BLS Servo

●Suggested Retail Price: US$63.85
●Size: 40x20x38.00mm
●Weight: 80g(without servo horn)
●Gear: Helical Steel Gears
●Operating speed:
0.13sec/60° @6.0V
0.10sec/60° @7.4V
0.09sec/60° @8.4V
●Stall torque:
36.0kg-cm/500 oz-in @6.0V
42.0kg-cm/ 583 oz-in @7.4V
48.0kg-cm/ 666 oz-in @8.4V
●Motor Type: Brushless Motor
●Signal Type: Digital Control
●Case Material: CNC AL6061 Aluminum Case
●Connector Wire Length: 300MM JR Plug

Read MoreSend Inquiry
BLS3858MED 58KG BLS Servo

BLS3858MED 58KG BLS Servo

●Suggested Retail Price: US$72.00
●Size: 40x20x38.00mm
●Weight: 80g(without servo horn)
●Gear: Helical Steel Gears
●Operating speed:
0.17sec/60° @6.0V
0.14sec/60° @7.4V
0.12sec/60° @8.4V
●Stall torque:
42.0kg-cm/583 oz-in @6.0V
49.0kg-cm/ 680 oz-in @7.4V
58.0kg-cm/ 805 oz-in @8.4V
●Motor Type: Brushless Motor
●Signal Type: Digital Control
●Case Material: CNC AL6061 Aluminum Case
●Connector Wire Length: 300MM JR Plug

Read MoreSend Inquiry
CLS3838MED 38KG CLS Servo

CLS3838MED 38KG CLS Servo

●Suggested Retail Price: US$48.59
●Size: 40x20x38.00mm
●Weight: 78.8g(without servo horn)
●Gear: Helical Steel Gears
●Operating speed:
0.12sec/60° @6.0V
0.10sec/60° @7.4V
0.09sec/60° @8.4V
●Stall torque:
29.0kg-cm/403 oz-in @6.0V
34.0kg-cm/ 472 oz-in @7.4V
38.0kg-cm/ 528 oz-in @8.4V
●Motor Type: Coreless Motor
●Signal Type: Digital Control
●Case Material: CNC AL6061 Aluminum Case
●Connector Wire Length: 300MM JR Plug

Read MoreSend Inquiry
CLS3850MED 50KG CLS Servo

CLS3850MED 50KG CLS Servo

●Suggested Retail Price: US$52.90
●Size: 40x20x38.00mm
●Weight: 78.8g(without servo horn)
●Gear:Helica Steel Gears
●Operating speed:
0.15sec/60° @6.0V
0.12sec/60° @7.4V
0.11sec/60° @8.4V
●Stall torque:
38.0kg-cm/528 oz-in @6.0V
45.0kg-cm/ 625 oz-in @7.4V
50.0kg-cm/ 694 oz-in @8.4V
●Motor Type: Coreless Motor
●Signal Type: Digital Control
●Case Material: CNC AL6061 Aluminum Case
●Connector Wire Length: 300MM JR Plug

Read MoreSend Inquiry

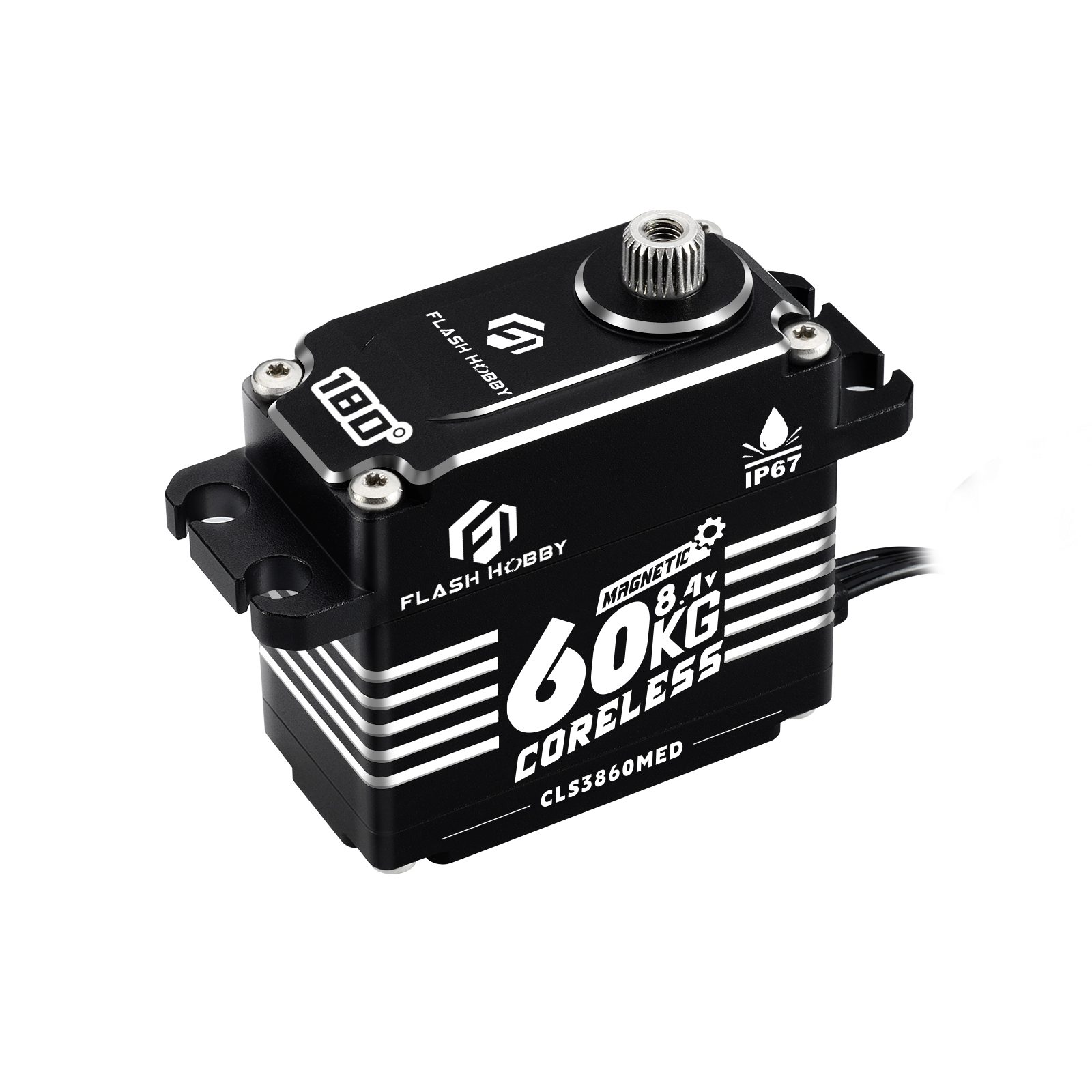

CLS3860MED 60KG CLS Servo

CLS3860MED 60KG CLS Servo

●Suggested Retail Price: US$60.30
●Size: 40x20x38.00mm
●Weight: 78.8g(without servo horn)
●Gear: steel helica gears
●Operating speed:
0.18sec/60° @6.0V
0.16sec/60° @7.4V
0.14sec/60° @8.4V
●Stall torque:
48.0kg-cm/528 oz-in @6.0V
56.0kg-cm/ 625 oz-in @7.4V
60.0kg-cm/ 694 oz-in @8.4V
●Motor Type: Coreless Motor
●Signal Type: Digital Control
●Case Material: CNC AL6061 Aluminum Case
●Connector Wire Length: 300MM JR Plug

Read MoreSend Inquiry
Magnetic Servo is produced by our factory. As the manufacturer and supplier in China, we offer advanced Magnetic Servo in high quality for wholesalers. If you want to buy, contact us for price list and we will send you quotation.
