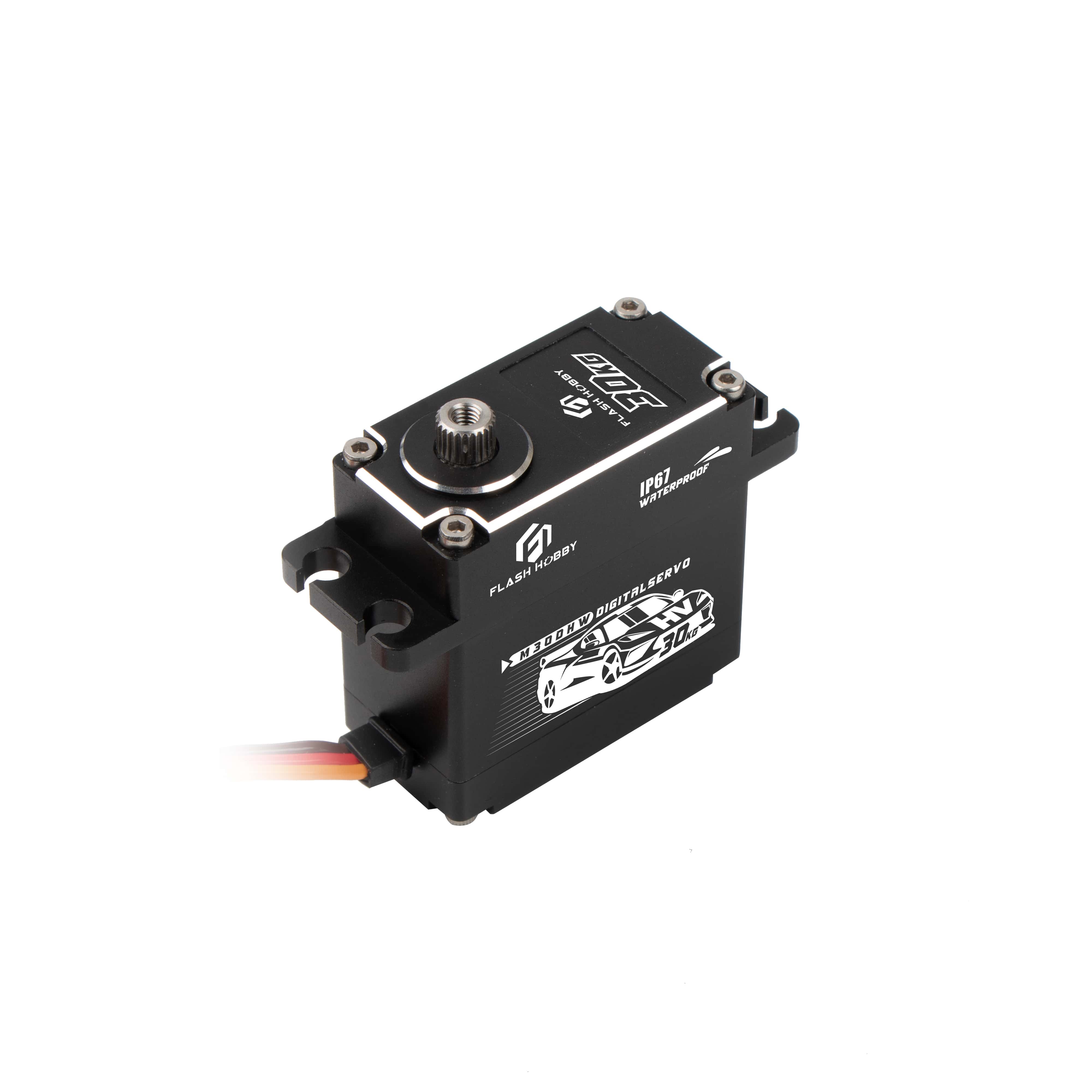

M30DHW Iron Core Servo

You are welcomed to come to Flash Hobby factory to buy the latest selling, low price, and high-quality M30DHW Iron Core Servo. We look forward to cooperating with you.
●Suggested Retail Price: US$23.69
●Size: 40x20x40.50mm
●Weight: 78g(without servo horn)
●Gear: Metal
●Torque/Speed: 22.3kg-cm/0.32sec/60°5.0V
26.6kg-cm/0.27sec/60°6.0V
30.0kg-cm/0.22sec/60°7.0V
●Motor Type: Iron Core Motor
●Signal Type: Digital Control
●Case Material: CNC AL6081 Aluminum Case
●Connector Wire Length: 300MM JR Plug

Model:M30DHW

Send Inquiry

Product Description

China Factory M30DHW Iron Core Servo In Stock. Flash Hobby is a M30DHW Iron Core Servo manufacturer and supplier in China.

FEATURE:

High Performance Digital Standard Servo
High Precision Steel Gear
High Quality Iron Core motor
Full CNC AL6082 Aluminium Hulls and Structure
Dual Ball Bearing
Super Long Life

Waterproof

Control System PWM Control 1500usec in the central point
Operation Voltage Range  4.8V -7.4V
Operation Temperature Range  -20C°~ +60C°
Circle  >80000 times without load
Operation Travel  60° ±1
Limit angle 180°± 1   OR  270°± 1 For Selection
Direction Re-clock wise/ Pulse Travel 500— 2500 psec
Diver type Mos Drive
Motor Type  DC Motor
Potentiometer Type Direct Drive
Amplifier Type  Digital Control
Dimension 40x20x40.50mm
Weight:  78g without servo horn
Test Voltage At 5V At 6V At 7V
Standing Torque 22.3kg-cm 26.6kg-cm 30.1kg-cm
Speed 0.32sec/60° 0.27sec/60° 0.22sec/60°
Idle Current 270mA 320mA 360mA
Running Current 1900mA 2300mA 2800mA
Dead band width  2 usee                       2 usee  2 usee
Ball Bearing  2BB
Gear Material  Metal Gear
Case Material  Aluminum Case
Connector Wire Length 300MMJR Plug
Connector Wire Gauge  22AWG
Wire InfoBrown Negative
Wire Info Red Positive
Wire Info Yellow S Sinqle
