BLDC Motor
BLDC Motor is a manufacturer who specializing in the producing and marketing of multirotor motor.
Our factory is equipped with 8 Motor Winding Machines, 3 Dynamic balancing machines, 6 Internal resistance device, 5 Multi-function tester, Flash Hobby has become a long-term and stable cooperative partner for many retailers.
Our factory is equipped with 8 Motor Winding Machines, 3 Dynamic balancing machines, 6 Internal resistance device, 5 Multi-function tester, Flash Hobby has become a long-term and stable cooperative partner for many retailers.
Products
- View as

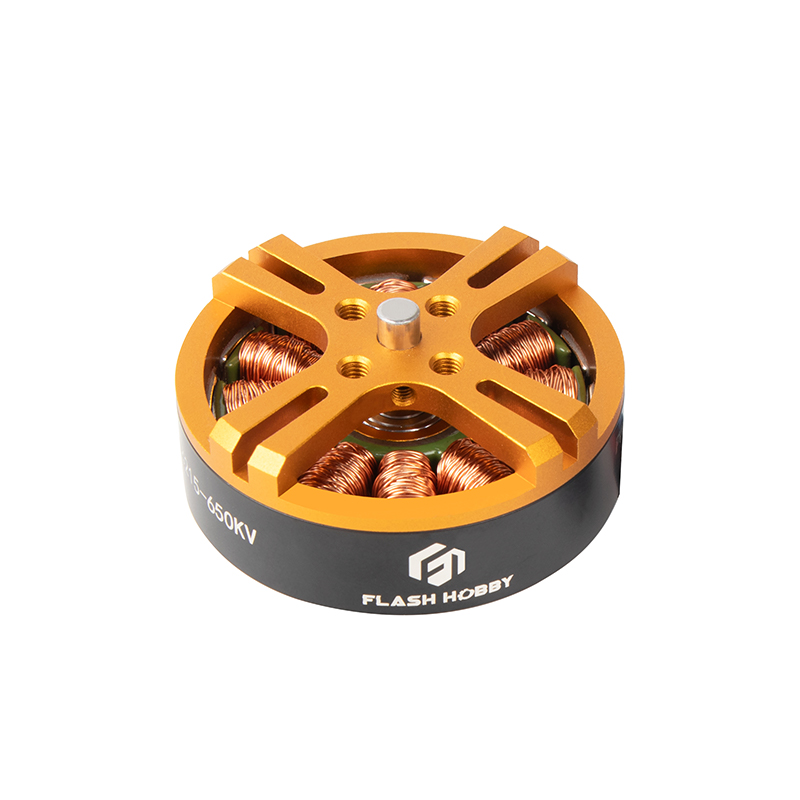

D4215 Brushless DC Motor
D4215 Brushless DC Motor
●Weight: 83g (including the cables)
●Motor Size:42*15mm
●Stator Diameter: 36mm
●Stator Height: 8mm
●Shaft Diameter: 4mm
●Mounting Screw Pattern: 16x19mm(M3*4)
●Configuration: 12N14P
●Motor Cable: 18#AWG 200mm
●KV Value: 650KV or customed KV
●Recommend: 10~12 inch prop application
●NSK Bearing
●6082 Aluminum bell
5215 Brushless Motor
5215 Brushless Motor
●Weight: 289.0g (including the cables)
●Motor Size: 60 x 35mm
●Shaft Diameter: 5.0mm
●Motor Mount: 19*25mm(M3*4)
●Configuration: 24N22P
●Motor Cable: 18#AWG 220mm
●KV Value: 340KVor customed KV
5210 Brushless Motor
5210 Brushless Motor
●Weight: 222.0g (including the cables)
●Motor Size: 60 x 30mm
●Shaft Diameter: 4.0mm
●Configuration: 24N/22P
●Motor Cable: 16#AWG 600mm
●KV Value: 340KVor customed KV
5208 Brushless DC Motor
5208 Brushless DC Motor
●Weight: 197.0g (including the cables)
●Motor Size: 60 x 28mm
●Shaft Diameter: 5.0mm
●Motor Mount: 19*25mm(M3*4)
●Configuration: 24N22P
●Motor Cable: 18#AWG 220mm
●KV Value: 330KV, 400KV or customed KV
●Recommend: 15~18" inch prop application
4114 Brushless DC Motor
4114 Brushless DC Motor
●Weight: 170.0g (including the cables)
●Motor Size: 47 x 32.5mm
●Shaft Diameter: 4.0mm
●Motor Mount: 19*25mm(M3*4)
●Configuration: 24N22P
●Motor Cable: 18#AWG 220mm
●KV Value: 330KV, 400KV or customed KV
BLDC Motor is produced by our factory. As the manufacturer and supplier in China, we offer advanced BLDC Motor in high quality for wholesalers. If you want to buy, contact us for price list and we will send you quotation.
