A4320 350KV Brushless Motor
A4320 Brushless Motor
●Weight: 318g (including the cables)
●Motor Size: 50.5 x 43mm
●Shaft Diameter: 6.0mm
*can be 5 or 6mm as per clients request
●Motor Mount: 30*30mm(M4*4)
●Configuration: 12N14P
●Motor Cable: 16#AWG 600mm
●KV Value: 350KV or customed KV
●Rated power: 432W
●Weight: 318g (including the cables)
●Motor Size: 50.5 x 43mm
●Shaft Diameter: 6.0mm
*can be 5 or 6mm as per clients request
●Motor Mount: 30*30mm(M4*4)
●Configuration: 12N14P
●Motor Cable: 16#AWG 600mm
●KV Value: 350KV or customed KV
●Rated power: 432W
Model:A4320
Send Inquiry

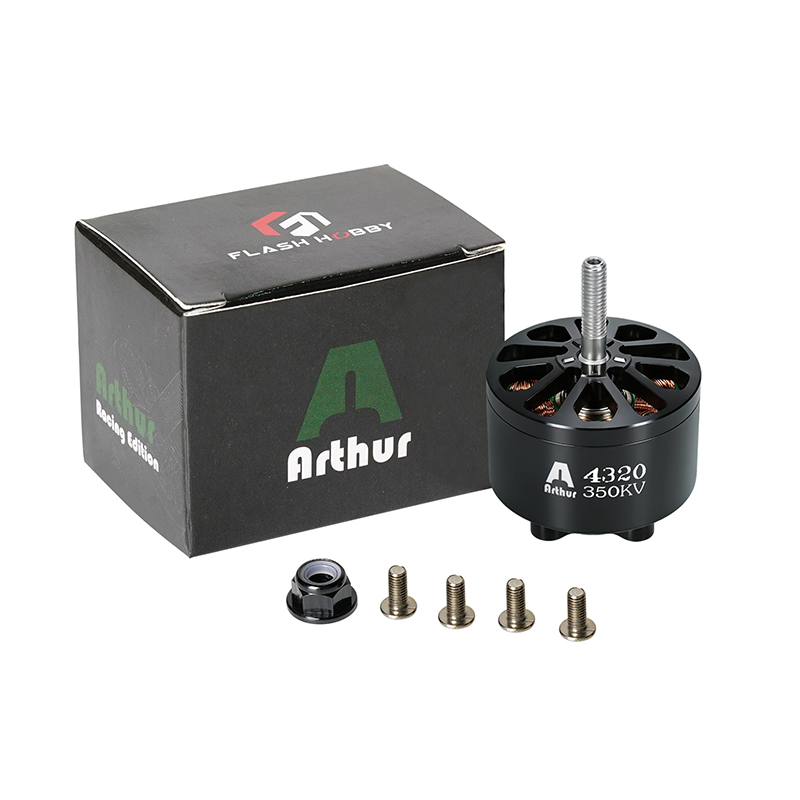

Arthur 4320 350KV Brushless motor
Features
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM 5x11x5mm Bearing
High Temperature Resistant Copper Wire Winding
Specification
A4320 350KV Motor

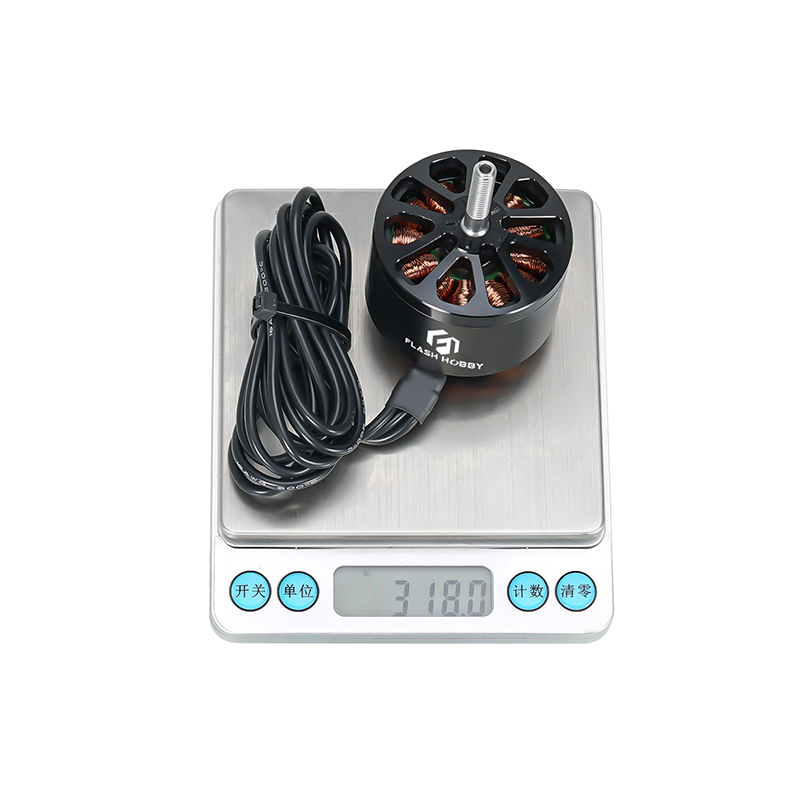

Weight: 318g (including the cables)
Motor Size:51.1x43.7mm
Shaft Diameter: ф6.0mm
Motor Mount: 30*30mm(M4*4)
Motor Cable: 16#AWG 600mm
Rated power: 432W

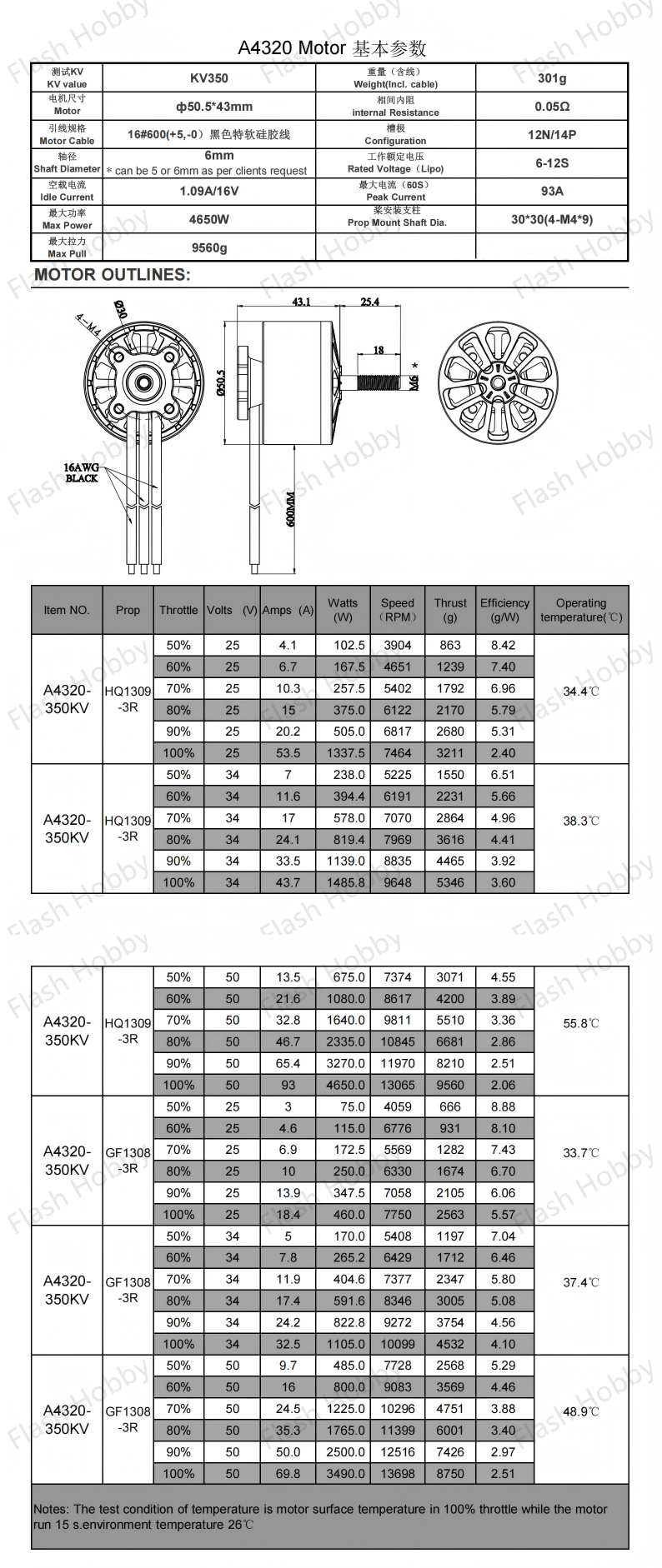

Technical Drawing
