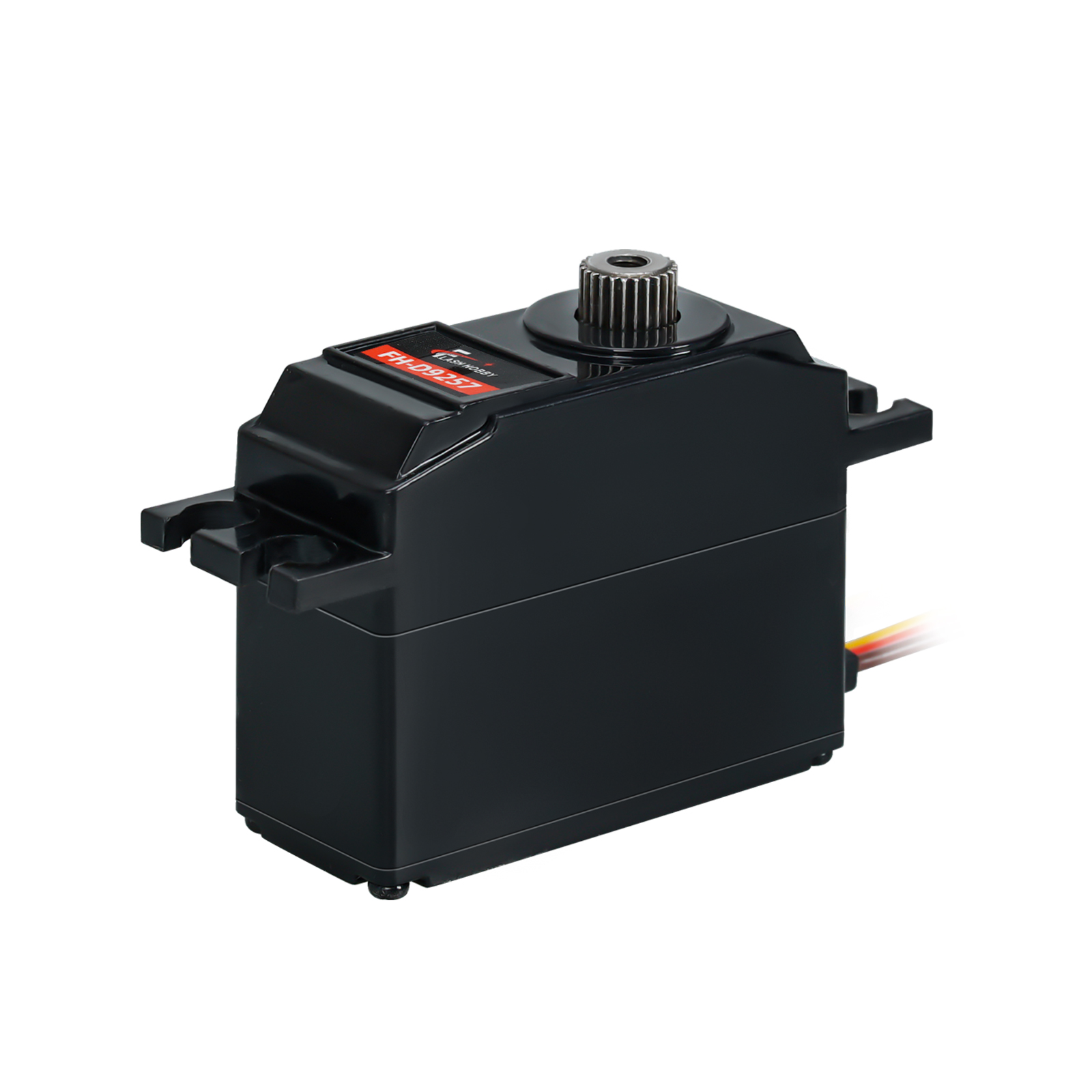

FH-D9257MG Tai Servo
FH-D9257MG Tai Servo
●Dimension: 36.0mm x 15.2mm x 28.8mm
● Weight: 25g
●Stall torque: 4 kg-cm(4.8V),4.5 kg-cm(6V)
● Operating speed: 0.08sec/60°(4.8V), 0.07sec/60°(6V)
● Operating voltage: 4.8V-6V
● No loading current:0.18A(4.8V),0.21A(6V)
● Loading current:1A(4.8V),1.5A(6V)
●Equipped with two ball bearings.

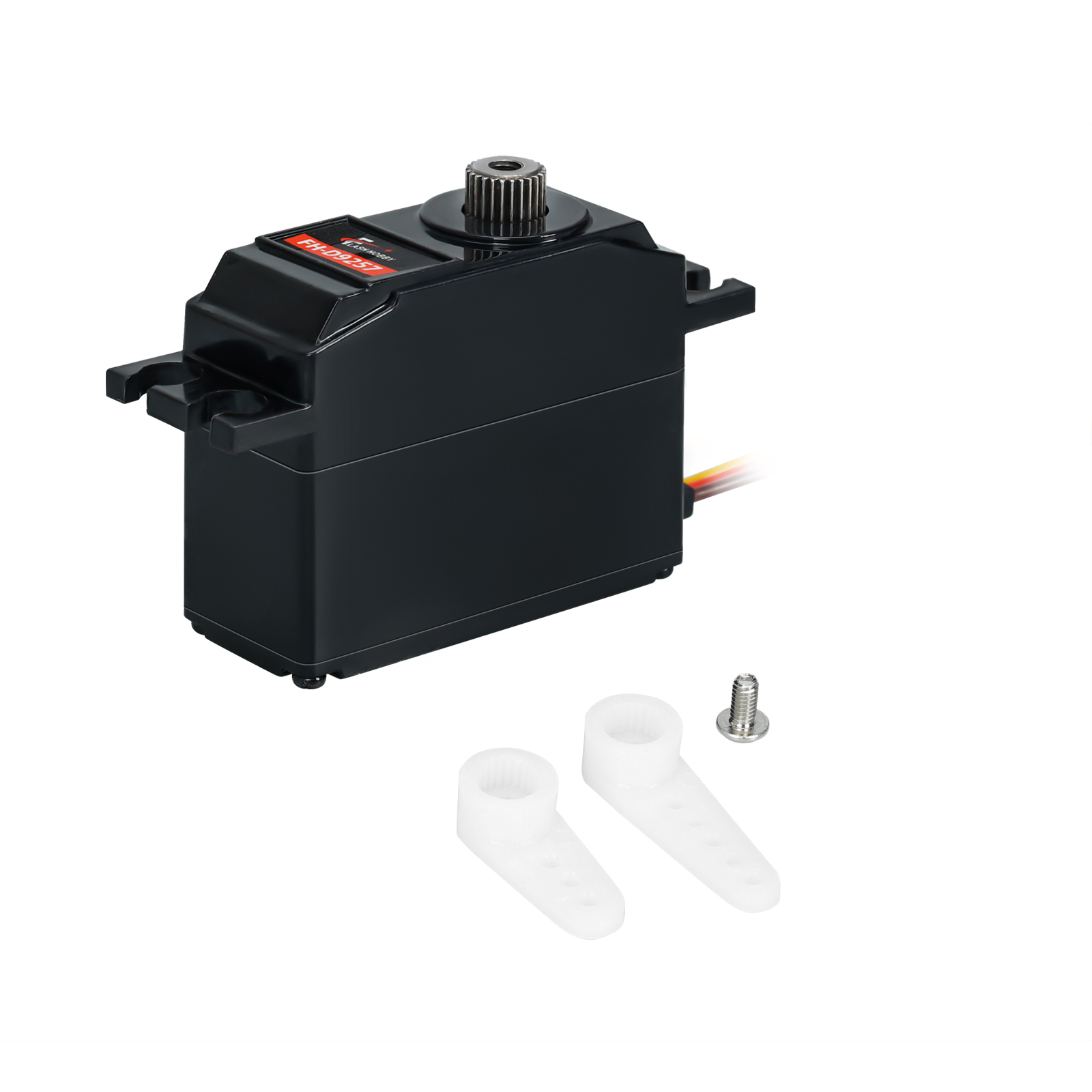

●Comes with a selection of servo arms/discs, mounting screws.
Send Inquiry
Product Description
FH-D9257MG Tai Servo, FH-D9257MG Flash hobby 9257 25g digital tail servo FH-D9257 RC servo for RC Aircraft
| Control System(控制系统） | Pulse Width Modulation Control 1520 μsec | |
| Operation Voltage Range（工作电压） | 4.8V ~6.0V | |
| Operation Temperature Range（工作温度） | -10C°~ +50C° | |
| Circle（寿命） | ＞12000 times | |
| Operation Travel（操作角度） | 120°±10° | |
| Limit angle (极限角度) | 180°± 10° | |
| Direction（信号脉宽范围） | Re-clock wise/ Pulse Travel 800→2200 μsec | |
| Diver type(马达驱动） | IC Drive | |
| Motor Type（马达类型） | Coreless | |
| Potentiometer Type(电位器处理方式） | Potentiometer | |
| Amplifier Type（信号处理方式） | Digital Control | |
| Dimensions（规格） | 36*15.2*28.8mm | |

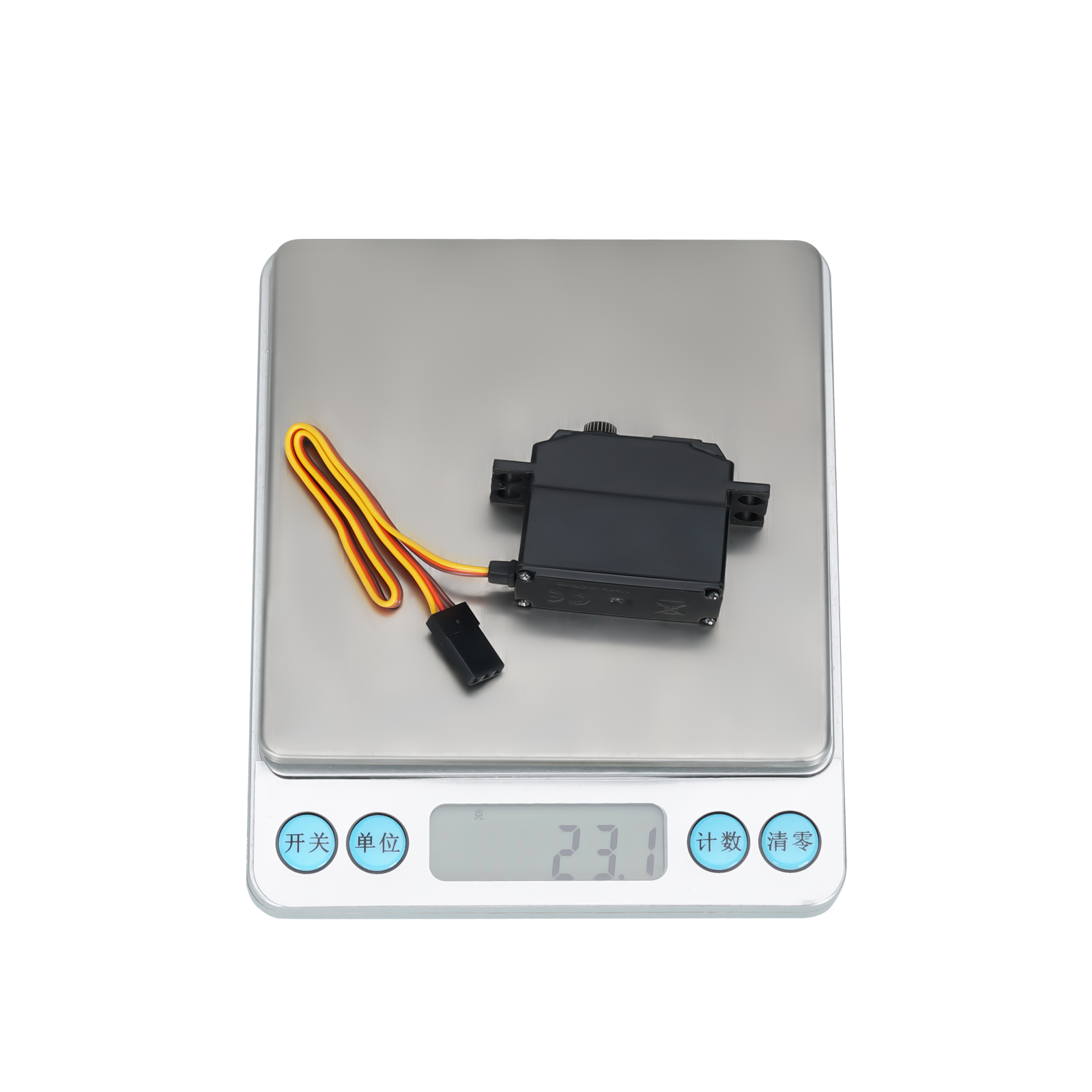

| Weight:（重量） | 25± 1g (without servo horn) | |
| Test Voltage:(测试电压) | At 4.8V | At 6.0V |
| Standing Torque(最大扭力) | 4.0 kg-cm | 4.5kg-cm |
| Speed(空载转速） | 0.08 sec/60° | 0.07 sec/60° |
| Idle Current(空载电流) | 120 mA | 150 mA |
| Running Current(负载电流) | 800mA | 900mA |
| Dead band width（死区） | 5 usec | 5 usec |
| Ball Bearing（轴承） | no | |

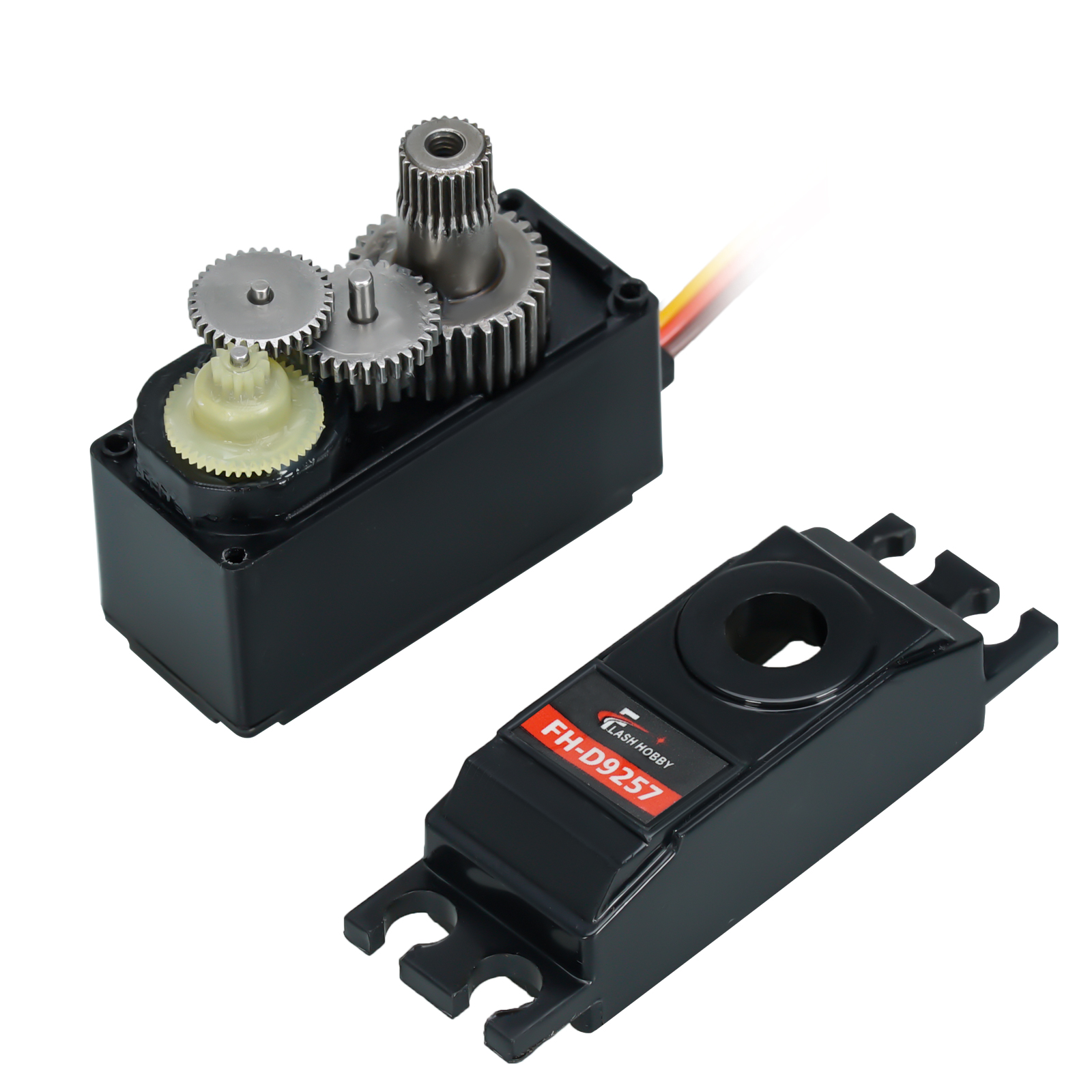

| Gear Material（齿轮材料） | Plastic gears | |
| Case Material（舵机外壳材料） | Nylon plus fiber | |
| Connector Wire Length（线长） | 250 ± 5 mm | |
| Connector Wire Gauge（线材型号） | 28awg PVC | |

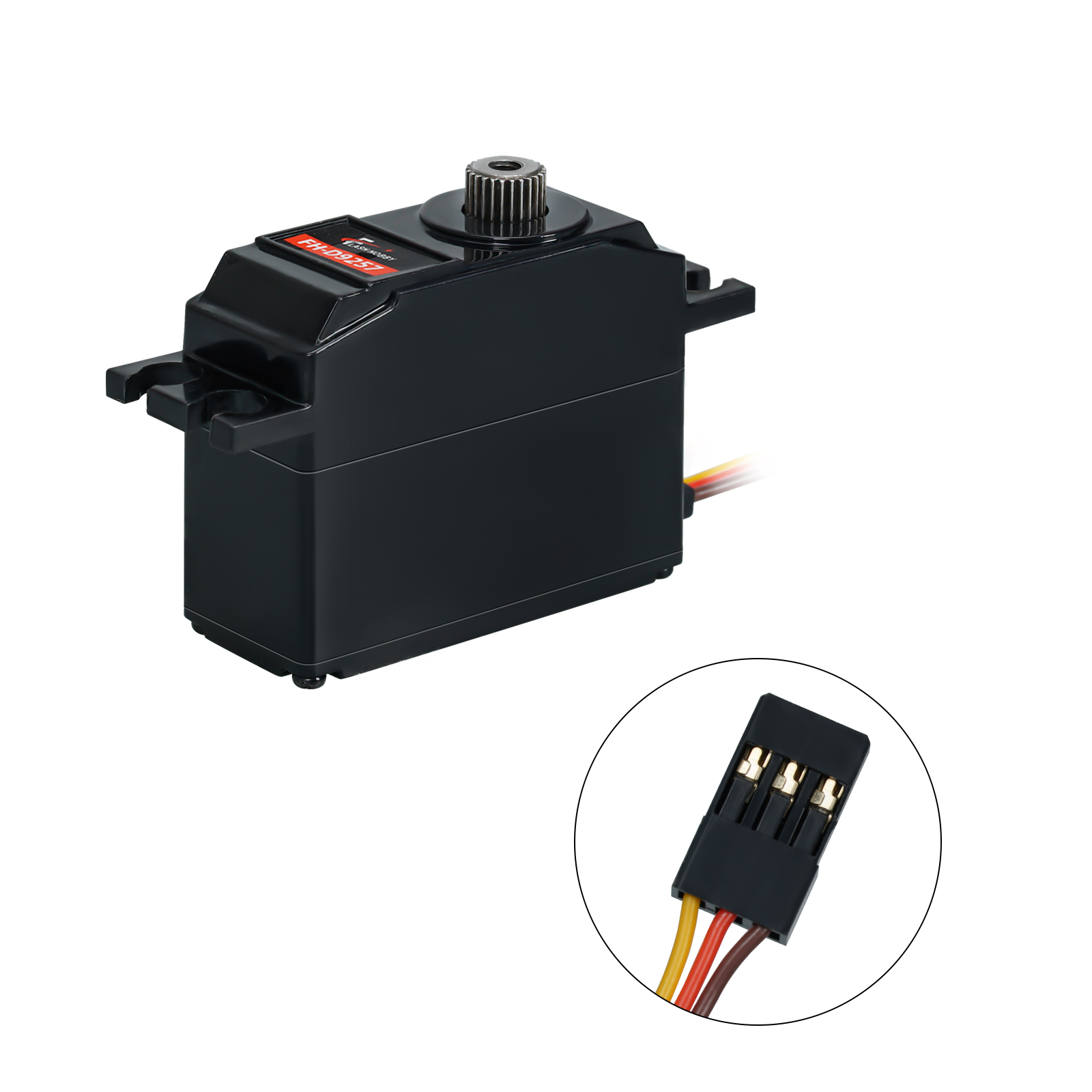

| Wire Info (Brown) | Negative | |
| Wire Info (Red) | Positive | |
| Wire Info (Yellow) | S Single | |

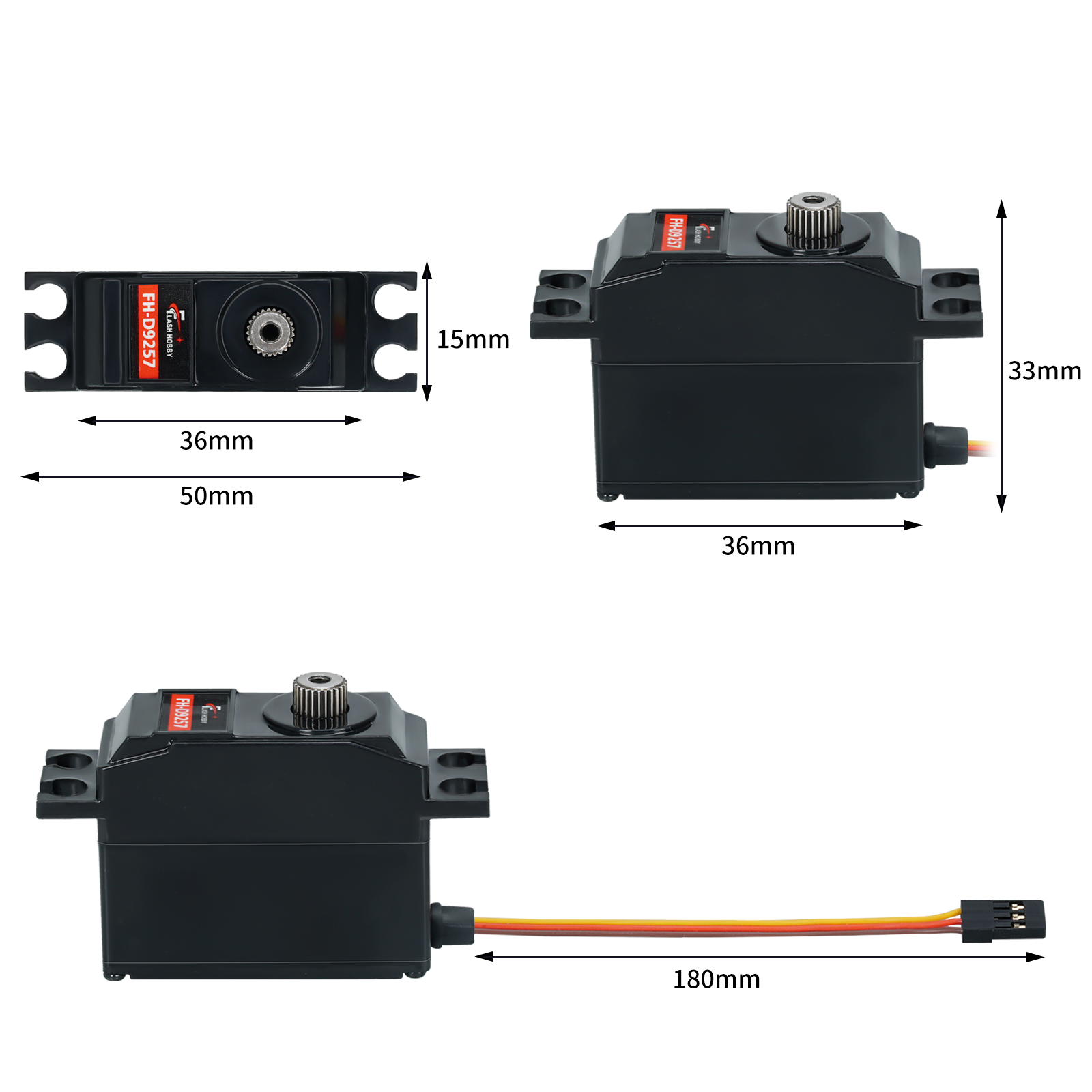

MOTOR Drawing:

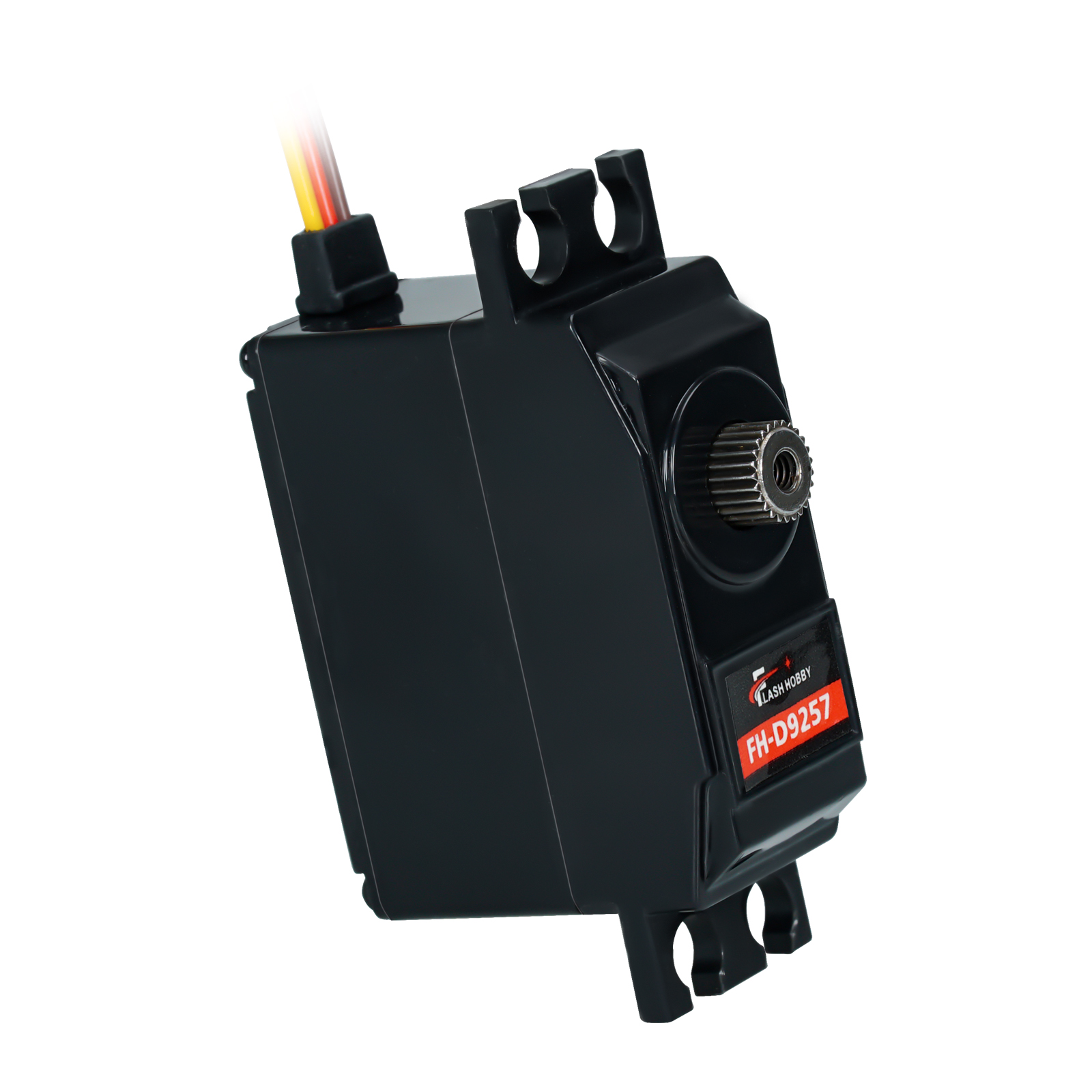

Product Details of FH-D9257MG Digital Tail Servo:
Application of FH-D9257MG Standard Servo:
