FH-2502 Micro Servo
FH-2502 Micro Servo
Weight: 2g
Size: 16 x 8.2 x 16.5mm
Speed: 0.08 sec/60 @ 4.8V
Torque: 0.2 kg-cm 4.8V
Connector Wire Length: 110mm
Motor: Coreless
Gear: Plastic
Weight: 2g
Size: 16 x 8.2 x 16.5mm
Speed: 0.08 sec/60 @ 4.8V
Torque: 0.2 kg-cm 4.8V
Connector Wire Length: 110mm
Motor: Coreless
Gear: Plastic
Model:FH-2502
Send Inquiry
Specifications:
FH-2502 Micro Servo
Dimensions: 16 x 8.2 x 16.5 mm

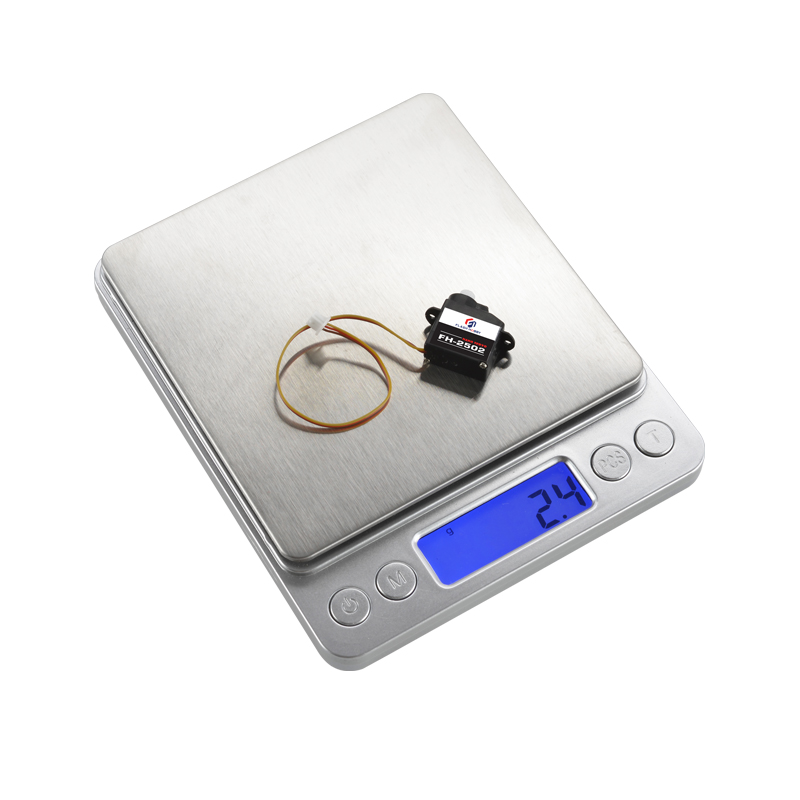

Weight: 2g (No including wire)
Working voltage: 3.7 ~ 4.2V
Torque:
3.7V: 0.12 kg-cm
4.2V: 0.16 kg-cm
Speed:
3.7V: 0.07 sec / 60 °
4.2V: 0.06 sec / 60 °
Motor type: Coreless motor
Gear type: Plastic gear
Wire gauge: JST1.25mm;JST1.0mm or JR, L = 110mm (brown-, red +, orange S)
| Control System(控制系统） | 1520us Pulse Width Modulation Control | |
| Operation Voltage Range（工作电压） | 3.6V ~ 4.2V | |
| Operation Temperature Range（工作温度） | -10C°~ +50C° | |
| Circle（寿命） | 6000 times | |
| Operation Travel（操作角度） | 120°±10° | |
| Limit angle (极限角度) | 180°± 10° | |
| Direction（信号脉宽范围） | Re-clock wise/ Pulse Travel 800→2200 μsec | |
| Diver type(马达驱动） | IC Drive | |
| Motor Type（马达类型） | Coreless | |
| Potentiometer Type(电位器处理方式） | Potentiometer | |
| Amplifier Type（信号处理方式） | Digital Control | |
| Dimensions（规格） | 16.0*8.2*16.5mm | |
| Weight:（重量） | 2.2± 0.2g (without servo horn) | |
| Test Voltage:(测试电压) | At 3.7V | At 4.2V |
| Standing Torque(最大扭力) | 95g-cm | 110g-cm |
| Speed(空载转速） | 0.07±0.01 sec/60° | 0.06±0.01 sec/60° |
| Idle Current(空载电流) | 60mA | 70mA |
| Running Current(负载电流) | 210mA | 310mA |
| Dead band width（死区） | 5 usec | 5 usec |
| Ball Bearing（轴承） | no | |
| Gear Material（齿轮材料） | Plastic gears | |
| Case Material（舵机外壳材料） | Nylon plus fiber | |
| Connector Wire Length（线长） | 110mm JST(JR) | |
| Connector Wire Gauge（线材型号） | 32 PVC | |
| Wire Info (Brown) | Negative | |
| Wire Info (Red) | Positive | |
| Wire Info (Yellow) | S Single | |
Drawing:
Product Details:
Application:
