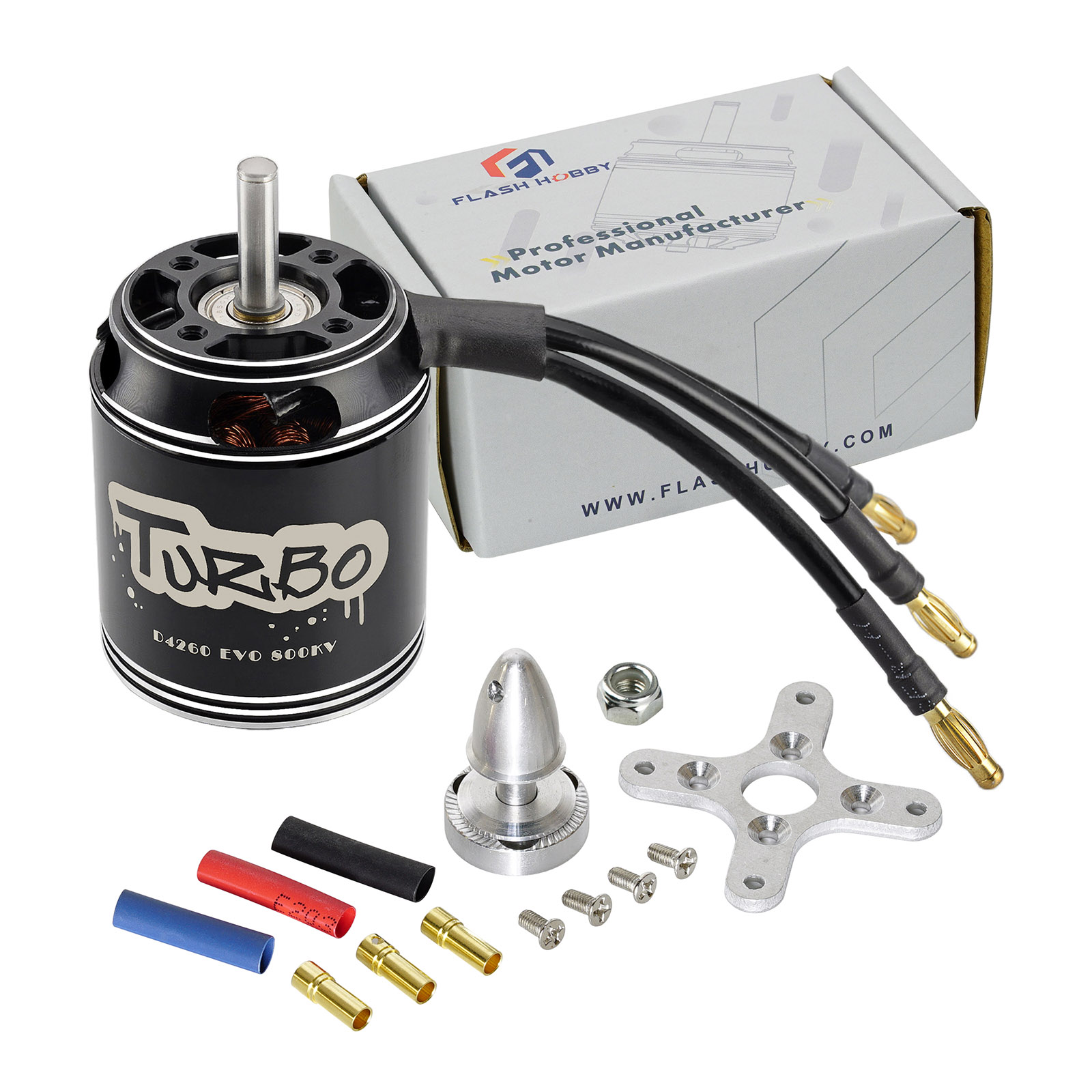

D4260EVO Fixed Wing Motor

Flash Hobby is a professional China D4260EVO Fixed Wing Motor manufacturer and supplier, if you are looking for the best D4260EVO Fixed Wing Motor with low price, consult us now!
●Weight: 286g(Including wires)
●Motor Size: 42.8 x60mm
●Shaft Size: 5.0*78.0mm
●Stator Diameter: 35mm
●Stator Height: 30mm
●Motor Mount: 25*25mm(M3*4)
●Configuration: 12N14P
●KV Value: 600KV, 800KV or customed KV

Model:D4260EVO

Send Inquiry

Product Description

Wholesale hot sale Factory D4260EVO Fixed Wing Motor with low price. Flash Hobby is a D4260EVO Fixed Wing Motor manufacturer and supplier in China.


D4260 EVO RC Brushless Motor Application

D4260 EVO RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter
Cradle Coffee Machine Milk Tea Machine electric drilling machine mowing machine robotic arm


D4260 EVO RC Brushless Motor Features:

48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing

High Temperature Resistant Copper Wire Winding


D4260 EVO RC Brushless Motor Specification

Weight: 286g(Including wires)
Motor Size: 42.8 x60mm
Shaft Size: 5.0*78.0mm
Stator Diameter: 35mm
Stator Height: 30mm
Motor Mount: 25*25mm(M3*4)
Configuration: 12N14P

KV Value for Selection:

KV Value: 600KV, 800KV or customed KV


KV: 600KV
Max watts: 1272.7W
Max Current: 59.92A
No Load current: 1.44A/10V
Resistance: 34.0mΩ
Battery: 5-6S Lipo
Suggested Prop: 14 inch prop

KV: 800KV
Max watts: 1354.0W
Max Current: 64.39A
No Load current: 2.45A/10V
Resistance: 21.2mΩ
Battery: 5-6S Lipo
Suggested Prop: 12 inch prop


D4260 EVO Motor Drawing:

D4260 EVO Motor Test Data:

MOTOR TECHNICAL DATA:
ltem NO. Volts(V) Prop Throttle(%) CURRENT (A) Power(W) Thrust  (g) PRM Efficiency    (g/W) Operating           temperature()
D4260-600KV(EVO) 22.72  APC 12x6 40% 12.17  276.5  1365  7575  4.9  48.0
22.64  50% 17.53  396.9  1773  8483  4.5
22.53  60% 24.19  545.0  2205  9345  4.0
22.33  70% 37.12  828.9  2901  10577  3.5
22.11  80% 46.55  1029.2  3514  11488  3.4
22.10  90% 52.61  1162.7  3860  11472  3.3
22.10  100% 56.77  1254.6  4015  11464  3.2
22.71  APC 14x7 40% 14.18  322.0  1672  6660  5.2  56.2
22.59  50% 21.93  495.4  2276  7630  4.6
22.40  60% 32.55  729.1  3080  8678  4.2
21.96  70% 40.34  885.9  3650  9699  4.1
21.66  80% 45.42  983.8  3739  9455  3.8
21.40  90% 52.90  1132.1  3874  9420  3.4
21.24  100% 59.92  1272.7  4080  9384  3.2
D4260-800KV(EVO) 22.46  APC 12x6 40% 21.40  480.6  1950  8823  4.1  57.6
22.32  50% 31.22  696.8  2456  9848  3.5
22.11  60% 38.67  855.0  2876  10929  3.4
21.69  70% 42.61  924.2  3388  11161  3.7
21.38  80% 51.77  1106.8  3680  11154  3.3
21.20  90% 56.70  1202.0  3874  11147  3.2
21.03  100% 64.39  1354.1  4152  11059  3.1
22.54  APC 12x6 40% 25.10  565.8  2398  7757  4.2  59.1
22.25  50% 41.97  933.8  3343  8925  3.6
22.06  60% 53.44  1178.9  3661  9283  3.1
21.80  70% 53.26  1161.1  3574  9230  3.1
21.63  80% 53.33  880.0  3632  9271  4.1
21.44  90% 53.51  940.6  3637  9255  3.9
20.91  100% 53.52  1119.1  3646  9215  3.3

APPLICATION:

CONNECTION:
