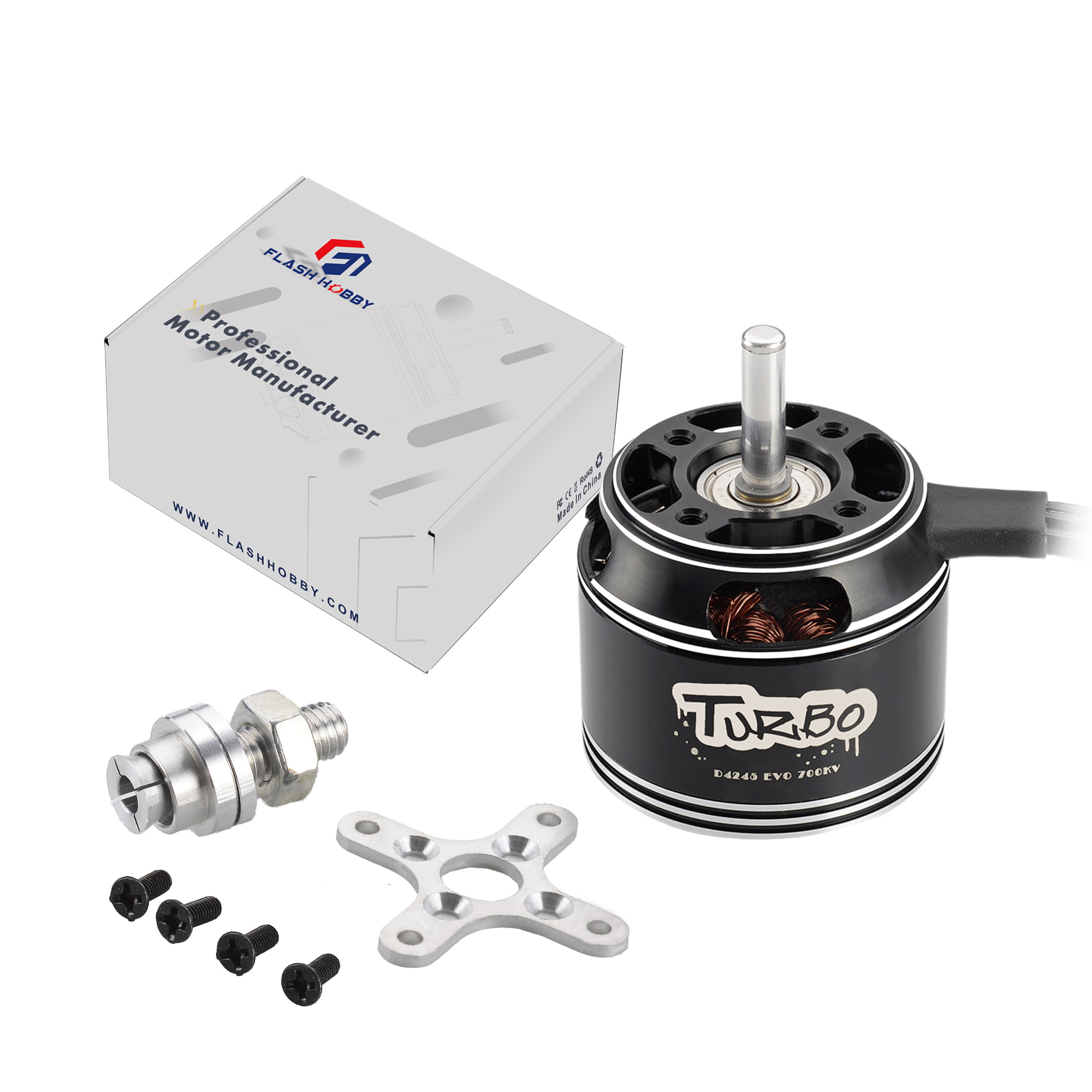

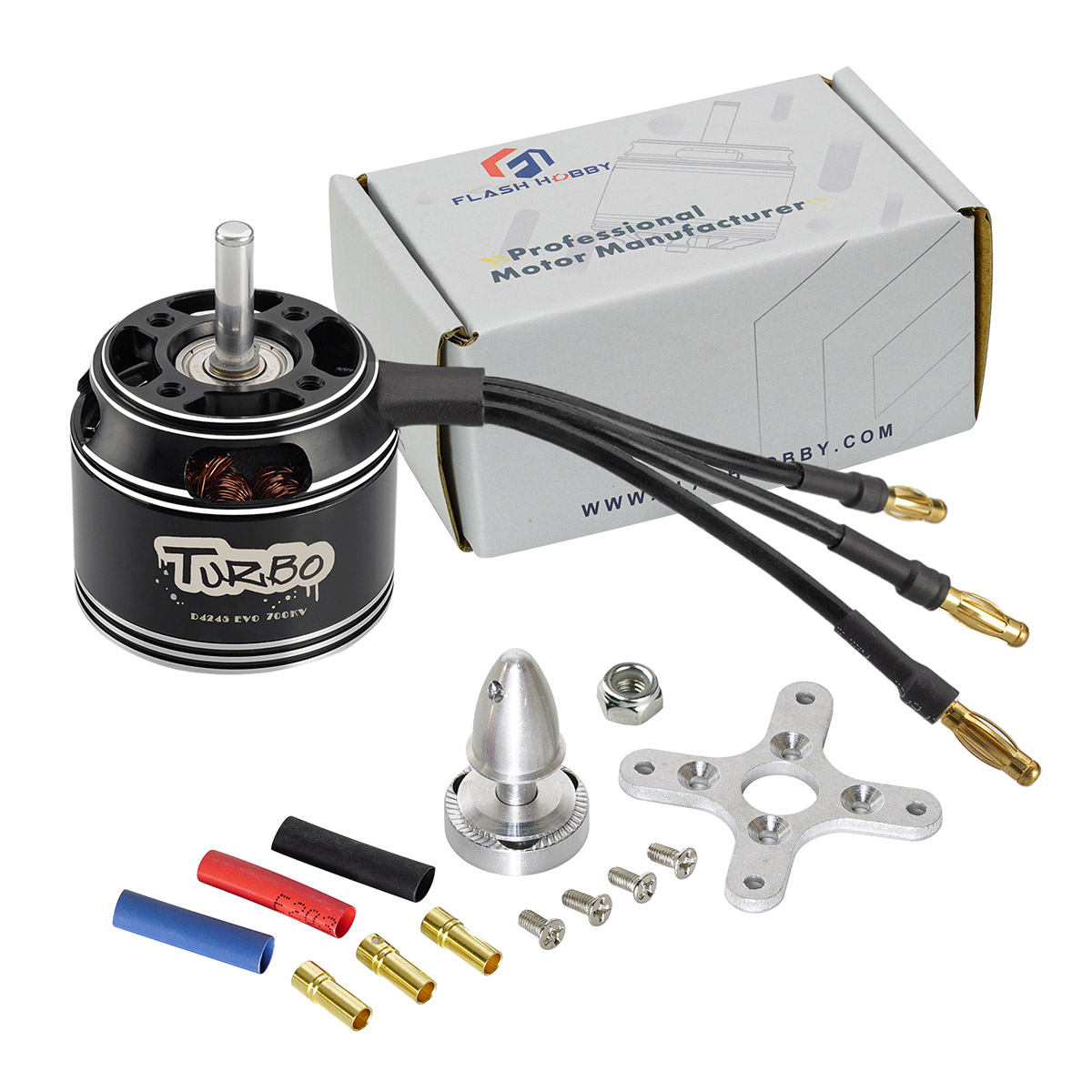

D4245EVO Fixed Wing Motor

High quality D4245EVO Fixed Wing Motor is offered by China manufacturer Flash Hobby. Buy D4245EVO Fixed Wing Motor which is of high quality directly with low price.
●Weight: 173.5g(Including wires)
●Motor Size: 42.8 x45mm
●Shaft Size: 5.063.0mm
●Stator Diameter: 35mm
●Stator Height: 15mm
●Motor Mount: 2525mm(M3*4)
●Configuration: 12N14P
●KV Value: 700KV, 800KV or customed KV

Model:D4245EVO

Send Inquiry

Product Description

Buy Hot D4245EVO Fixed Wing Motor made in China. Flash Hobby is a D4245EVO Fixed Wing Motor manufacturer and supplier in China.

D4245 EVO RC Brushless Motor Application

D4245EVO（3515） RC Outrunner Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter Cradle Coffee Machine Milk Tea Machine electric drilling machine mowing machine robotic arm

D4245 EVO RC Brushless Motor Features:
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing

High Temperature Resistant Copper Wire Winding

D4245 EVO RC Brushless Motor Specification

Weight: 173.5g(Including wires)
Motor Size: 42.8 x45mm
Shaft Size: 5.0*63.0mm
Stator Diameter: 35mm
Stator Height: 15mm
Motor Mount: 25*25mm(M3*4)
Configuration: 12N14P

KV Value for Selection:

KV Value: 700KV, 800KV or customed KV

KV: 700KV
Max watts: 1013W
Max Current: 55.63A
No Load current: 1.47A/10V
Resistance: 45.4mΩ
Battery: 5-6S Lipo
Suggested Prop: 14 inch prop

KV: 800KV
Max watts: 1210.7W
Max Current: 58.6A
No Load current: 1.70A/10V
Resistance: 30.4mΩ
Battery: 5-6S Lipo
Suggested Prop: 12 inch prop

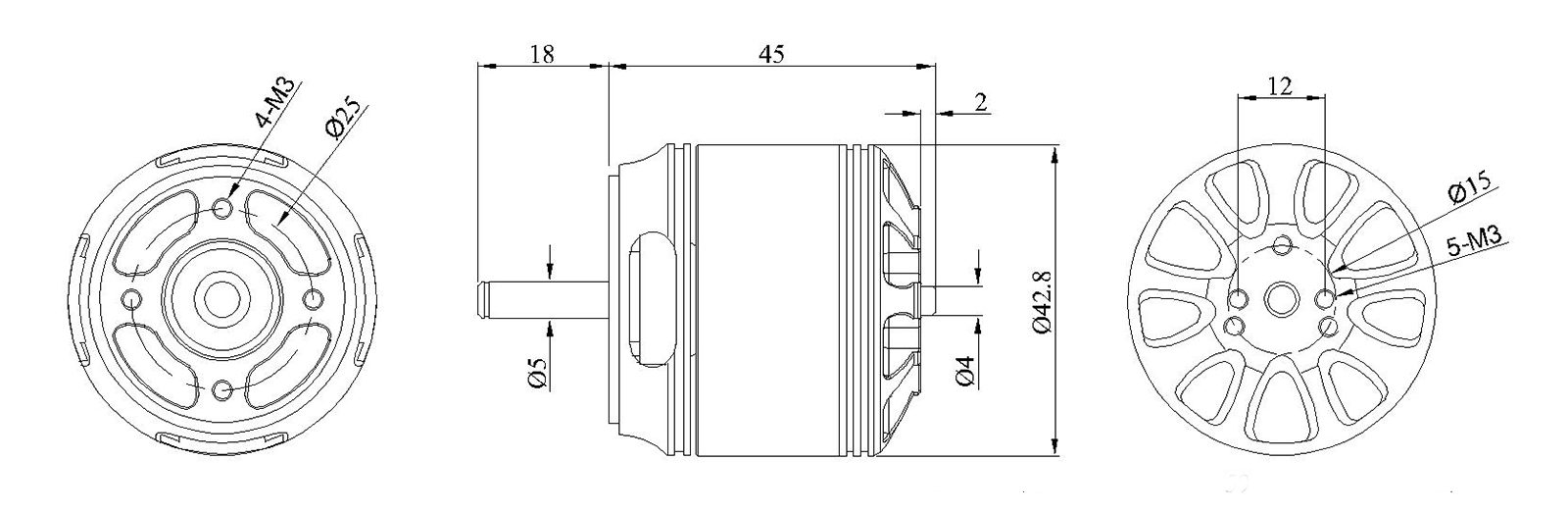

D4245 EVO Motor Drawing:

D4245 EVO Motor Test Data:

MOTOR TECHNICAL DATA:
ltem NO.	Volts(V)	Prop	Throttle(%)	CURRENT (A)	Power(W)	Thrust (g)	PRM	Efficiency (g/W)	Operating temperature(℃)
D4245-700KV(EVO)	18.50	APC 12x6	40%	6.12	113.2	835	5863	7.4	48.1℃
	18.45		50%	8.67	160.0	1012	6549	6.3
	18.39		60%	12.36	227.3	1305	7319	5.7
	18.28		70%	17.59	321.5	1661	8139	5.2
	18.17		80%	24.12	438.3	2012	8884	4.6
	18.09		90%	33.00	597.0	2425	9687	4.1
	17.88		100%	36.43	651.4	2557	9943	3.9
	18.86	APC 13x6.5	40%	6.76	127.5	896	4922	7.0	52.2℃
	18.82		50%	11.53	217.0	1286	5833	5.9
	18.60		60%	18.03	335.4	1666	6659	5.0
	18.40		70%	26.60	489.4	2068	7367	4.2
	18.14		80%	37.18	674.4	2506	7985	3.7
	18.02		90%	49.48	891.6	2883	8572	3.2
	17.97		100%	54.48	979.0	3025	8727	3.1
	18.86	APC 14x7	40%	6.76	127.5	898	4902	7.0	58.4℃
	18.75		50%	11.22	210.4	1306	5794	6.2
	18.66		60%	18.21	339.8	1842	6743	5.4
	18.55		70%	26.83	497.7	2341	7511	4.7
	18.47		80%	36.72	678.2	2820	8154	4.2
	18.31		90%	49.33	903.2	3324	8736	3.7
	18.21		100%	55.63	1013.0	3517	8946	3.5
	22.11	APC 12x6	40%	7.51	166.0	1011	6575	6.1	60.3℃
	22.01		50%	11.23	247.2	1350	7437	5.5
	21.88		60%	16.93	370.4	1780	8390	4.8
	21.76		70%	23.89	519.8	2192	9286	4.2
	21.65		80%	33.22	719.2	2657	10121	3.7
	21.49		90%	45.21	971.6	3077	10930	3.2
	21.31		100%	49.92	1063.8	3177	11184	3.0
D4245-800KV(EVO)	18.78	APC 12x6	40%	11.88	223.1	1171	7086	5.2	52.6℃
	18.46		50%	16.57	305.9	1474	7823	4.8
	18.19		60%	22.20	403.8	1754	8535	4.3
	18.06		70%	30.02	542.2	2182	9320	4.0
	17.84		80%	41.86	746.8	2590	10192	3.5
	17.66		90%	56.94	1005.6	3104	11017	3.1
	17.53		100%	59.60	1044.8	3180	11848	3.0
	18.83	APC 13x6.5	40%	13.89	261.5	1201	5855	4.6	56.47
	18.46		50%	20.67	381.6	1652	6546	4.3
	18.26		60%	32.59	595.1	2214	7099	3.7
	17.99		70%	46.29	832.8	2803	7672	3.4
	17.67		80%	50.36	880.0	2960	8488	3.4
	17.25		90%	56.02	940.6	3120	9287	3.3
	17.10		100%	58.96	1008.2	3250	9646	3.2
	22.25	APC 12x6	40%	15.31	340.6	1587	8014	4.7	61.1℃
	22.18		50%	22.10	490.2	2017	8925	4.1
	22.15		60%	31.32	693.7	2480	9848	3.6
	21.96		70%	41.63	914.2	2968	10806	3.2
	20.90		80%	53.00	1107.7	3478	11436	3.1
	20.70		90%	56.88	1177.4	3529	11287	3.0
	20.66		100%	58.60	1210.7	3635	11235	3.0
Notes: The test condition oftemperature is motor surface temperature in 100% throttle while the motor run 15 s.environment temperature 26℃
