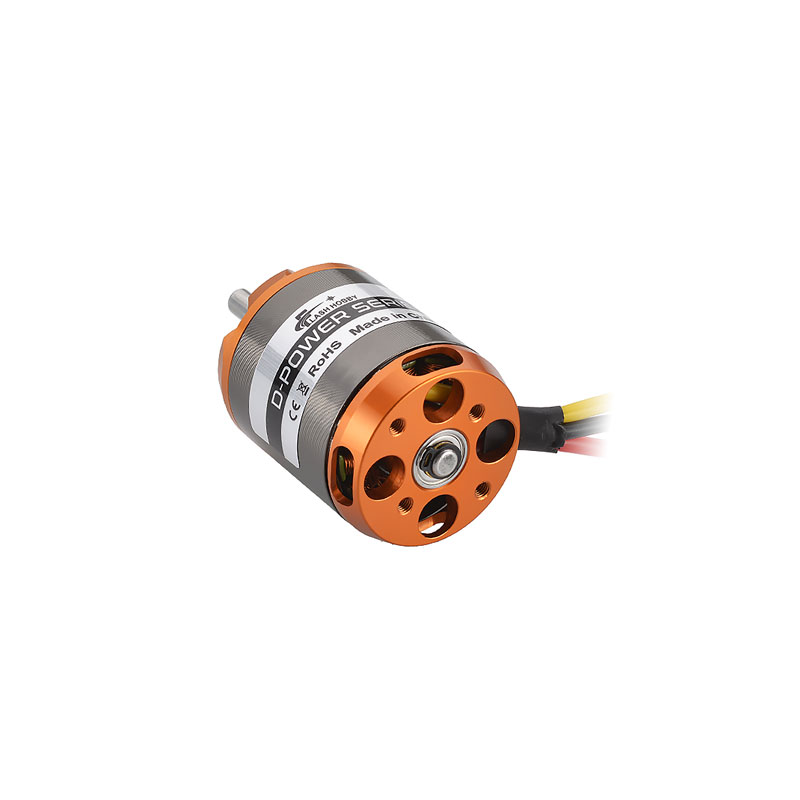

D3548 Fixed Wing Motor

D3548 Fixed Wing Motor Application

RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter
Cradle Coffee Machine Milk Tea Machine Electric Drilling Machine Mowing Machine Robotic Arm

D3548 RC Brushless Motor Features:
42H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing
High Temperature Resistant Copper Wire Winding

D3548 RC Brushless Motor Specification

Weight: 156g
Motor Size: 35*48mm
Shaft Size: 5.0*65.5mm
Motor Mount: 16*19mm(M3*4)
Configuration: 12N14P

KV Value for Selection:

KV Value: 1100KV, 900KV,790KV or customed KV

D3548-4-1100KV Motor Specification

Max pull：2150g

Volts：DC11.1~18.5V

Suggested ESC: 40A

Maximum Power：911W

Suggested Prop: 12inch prop

D3548-4-900KV Motor Specification

Max pull：1780g

Volts：DC11.1~18.5V

Suggested ESC: 40A

Maximum Power：770W

Suggested Prop: 11 inch prop

D3548-4-790KV Motor Specification

Max pull：1650g

Volts：DC11.1~18.5V

Suggested ESC: 40A

Maximum Power：717W

Suggested Prop: 12 inch prop

MOTOR Drawing:

Product Details:

Application:

Connected instructions

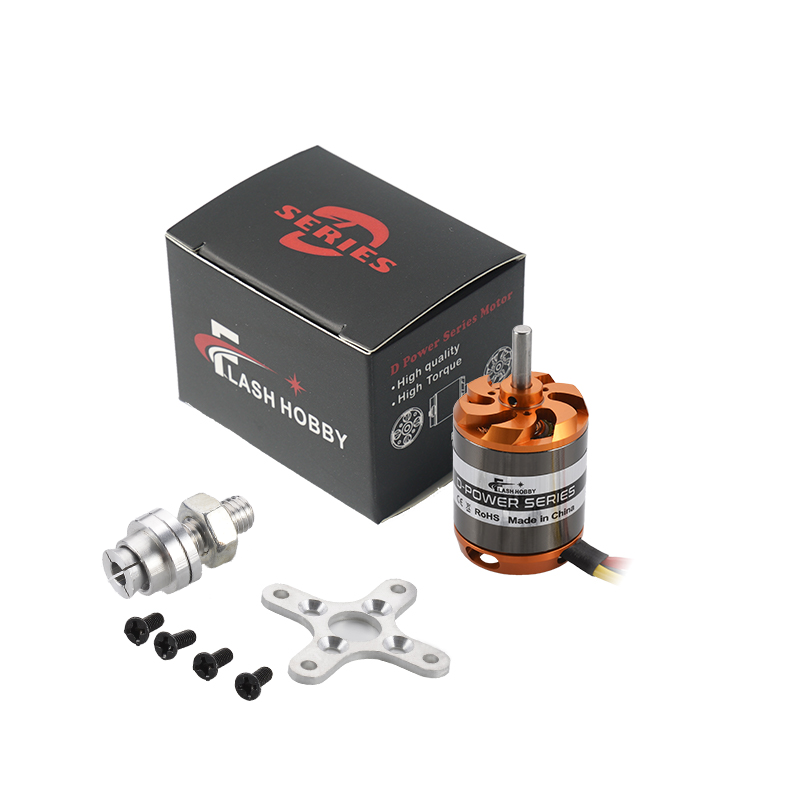

Packed With Accessory:

Flashhobby motor X1  M3X7*4  crosse*1,  Adapter*1

FAQ

1、What is the MOQ of the regular item?

A: There isn’t MOQ limited for the stock item. But if need to change the color or design, we will set up the MOQ as per the different request.

2、If the order quantity is large, if can apply the discount from dealer price?

A: Yes, we will offer our best offer as per the different request.

3、If need change anything when the order confirmed, pls how we can do?

A: If you have request, pls contact with us within 2 days when the order was confirmed, otherwise, it can’t be cancelled or change any design of motor.

4、How long the delivery time?

A: It is about 7 days when the order is confirmed for the regular item.

5、What is the leadtime of OEM/OMD order?

A: Normally it is 15-30 days.

6、What is the MOQ of OEM/OMD order?

A: Single color Motor MOQ-200PCS;

 Multicolor Motor MOQ-1000PCS.
