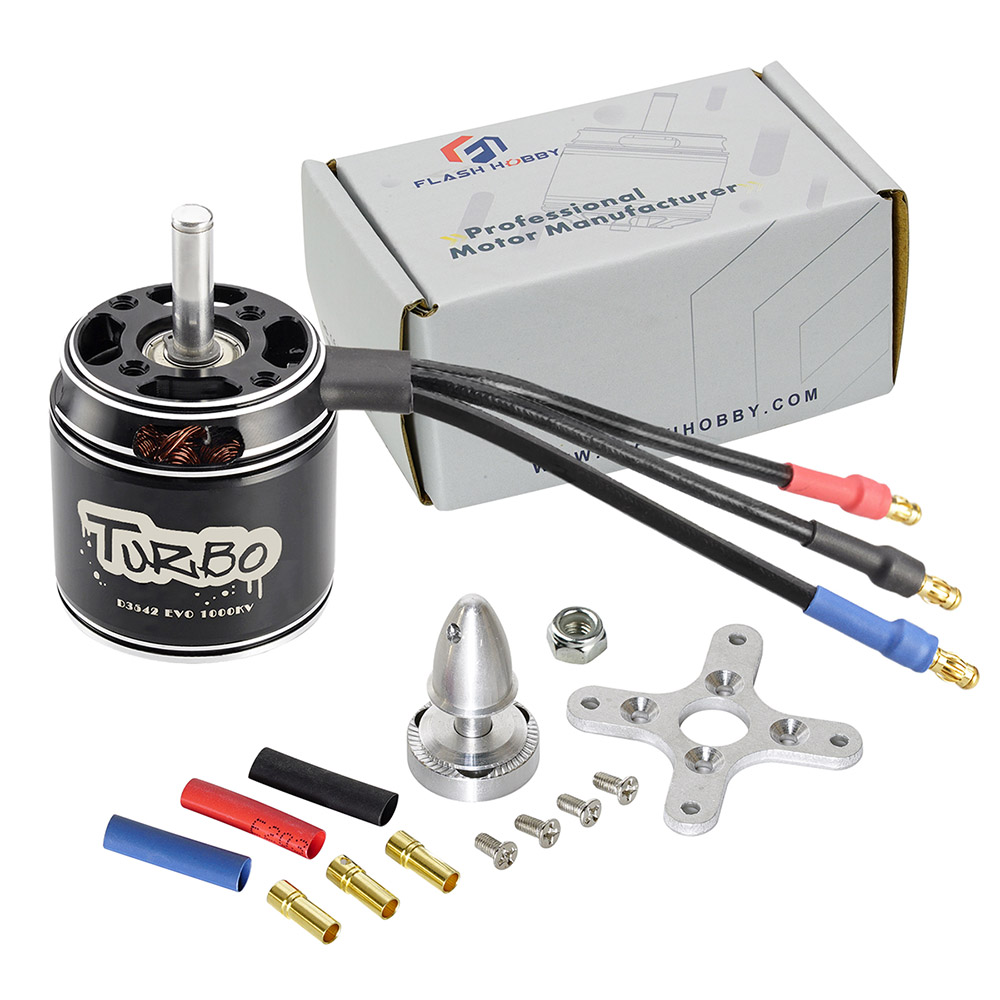

D3542EVO Fixed Wing Motor

You can rest assured to buy D3542EVO Fixed Wing Motor from Flash Hobby factory and we will offer you the best after-sale service and timely delivery.
●Weight: 136g(Including wires)
●Motor Size: 35.3 x42mm
●Shaft Size: 5.059.5mm
●Stator Diameter: 28mm
●Stator Height: 20mm
●Motor Mount: 1925mm(M3*4)
●Configuration: 12N14P
●KV Value: 1000KV, 1250KV,1400KV or customed KV

Model:D3542EVO

Send Inquiry

Product Description

Factory Directly Supply Quality D3542EVO Fixed Wing Motor made in China. Flash Hobby is a D3542EVO Fixed Wing Motor manufacturer and supplier in China.

D3542 EVO RC Brushless Motor Application

D3542EVO（2820） RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter Cradle Coffee Machine Milk Tea Machine electric drilling machine mowing machine robotic arm

D3542 EVO RC Brushless Motor Features:
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing

High Temperature Resistant Copper Wire Winding

D3542 EVO RC Brushless Motor Specification

Weight: 136g(Including wires)
Motor Size: 35.3 x42mm
Shaft Size: 5.0*59.5mm
Stator Diameter: 28mm
Stator Height: 20mm
Motor Mount: 19*25mm(M3*4)
Configuration: 12N14P

KV Value for Seleciton:

KV Value: 1000KV, 1250KV,1400KV or customed KV

KV: 1000KV
Max watts: 585.2W
Max Current: 50.28A
No Load current: 2.05A/10V
Resistance: 34.4mΩ
Battery: 3-4S Lipo
Suggested Prop: 13 inch prop

KV: 1250KV
Max watts: 961.7W
Max Current: 62.94A
No Load current: 2.66A/10V
Resistance: 24.0mΩ
Battery: 3-4S Lipo
Suggested Prop: 10 inch prop

KV: 1400KV
Max watts: 613.4W
Max Current: 53.02A
No Load current: 3.34A/10V
Resistance: 19.0mΩ
Battery: 3-4S Lipo
Suggested Prop: 10 inch prop

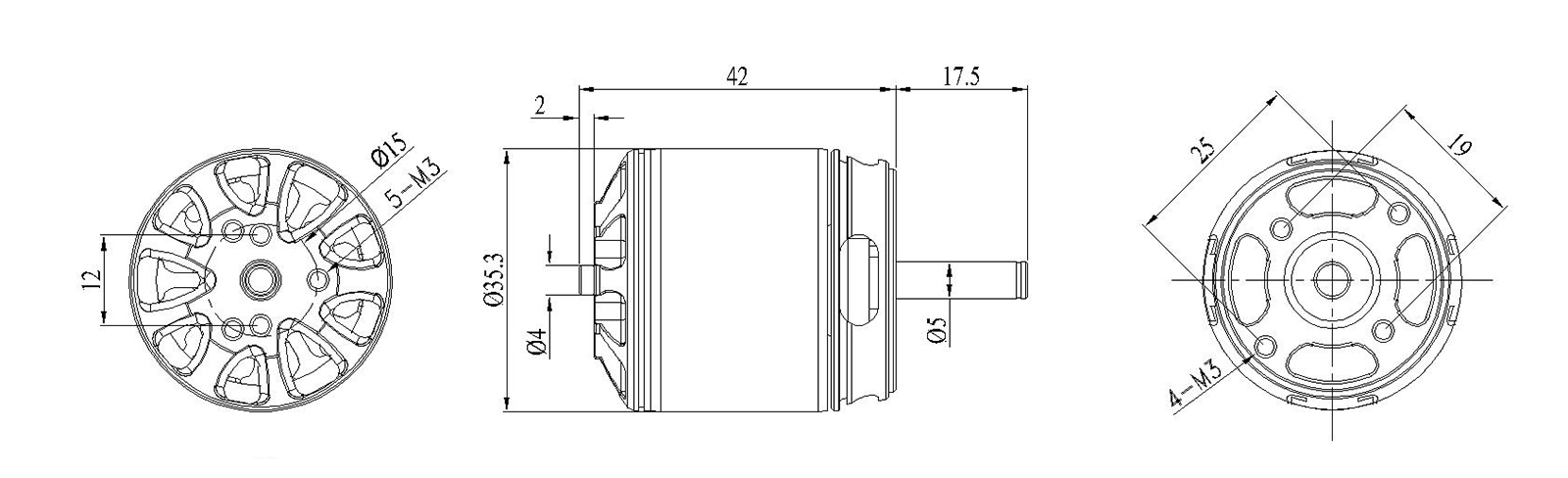

D3542 EVO Motor Drawing:

D3542 EVO Motor Test Data:

MOTOR TECHNICAL DATA:
ltem NO.	Volts(V)	Prop	Throttle(%)	CURRENT (A)	Power(W)	Thrust (g)	PRM	Efficiency (g/W)	Operating temperature(℃)
D3542-1000KV(EVO)	12.47	10x5	40%	7.29	90.9	591	6204	5.6	41.5℃
	12.43		50%	9.69	120.4	723	6871	5.4
	12.39		60%	11.97	148.3	828	7409	5.2
	12.35		70%	14.16	174.9	947	7865	4.8
	12.29		80%	17.53	215.4	1088	8495	4.8
	12.18		90%	23.58	287.2	1346	9342	4.6
	12.13		100%	26.84	325.6	1451	9703	4.4
	12.44	APC 11x7	40%	8.32	103.5	623	5289	6.0	43.8℃
	12.40		50%	11.38	141.1	771	5887	5.5
	12.34		60%	14.87	183.5	914	6381	5.0
	12.25		70%	19.84	243.0	1090	6994	4.5
	12.13		80%	26.48	321.2	1304	7632	4.1
	11.97		90%	35.49	424.8	1523	8269	3.6
	11.87		100%	40.27	478.0	1615	8517	3.4
	12.46	APC 12x6	40%	8.08	100.7	691	5470	6.9	44.3℃
	12.42		50%	11.10	137.9	829	6120	6.0
	12.36		60%	14.23	175.9	1002	6622	5.7
	12.29		70%	18.24	224.2	1196	7175	5.3
	12.18		80%	24.08	293.3	1444	7868	4.9
	12.04		90%	32.14	387.0	1736	8514	4.5
	11.96		100%	36.70	438.9	1867	8805	4.3
	12.45	APC 13x6.5	40%	8.88	110.6	737	4534	6.7	47.3℃
	12.38		50%	12.75	157.8	948	5121	6.0
	12.29		60%	18.04	221.7	1204	5696	5.4
	12.15		70%	25.77	313.1	1392	6325	4.4
	11.98		80%	34.80	416.9	1777	6820	4.3
	11.77		90%	44.94	528.9	2033	7267	3.8
	11.65		100%	50.28	585.8	2136	7417	3.6
D3542-1250KV(EVO)	12.48	APC9x6	40%	10.18	127.0	639	7631	5.0	44.2℃
	12.42		50%	13.52	167.9	784	8457	4.7
	12.37		60%	16.59	205.2	909	9072	4.4
	12.31		70%	19.45	239.4	983	9589	4.1
	12.25		80%	23.55	288.5	1097	10238	3.8
	12.10		90%	30.98	374.9	1395	11177	3.7
	12.04		100%	34.89	420.1	1530	11619	3.6
	12.47	APC10x6	40%	11.12	138.7	717	7114	5.2	48.4℃
	12.41		50%	14.94	185.4	891	7884	4.8
	12.33		60%	18.72	230.8	1048	8451	4.5
	12.27		70%	22.13	271.5	1160	8995	4.3
	12.16		80%	28.18	342.7	1387	9695	4.0
	12.00		90%	36.68	440.2	1646	10572	3.7
	11.90		100%	41.92	498.8	1789	10923	3.6
	16.34	APC10x6	40%	15.76	257.5	1079	8558	4.2	52.3℃
	16.24		50%	21.35	346.7	1331	9450	3.8
	16.14		60%	26.91	434.3	1550	10140	3.6
	16.02		70%	33.31	533.6	1788	10871	3.3
	15.82		80%	43.24	684.1	2078	11807	3.0
	15.47		90%	56.42	872.8	2438	12614	2.8
	15.28		100%	62.94	961.7	2567	12919	2.7
D3542-1400KV(EVO)	12.33	APC9x6	40%	12.92	159.3	757	8159	4.8	47.5℃
	12.26		50%	17.26	211.6	926	9036	4.4
	12.19		60%	21.29	259.5	1085	9721	4.2
	12.12		70%	25.24	305.9	1233	10239	4.0
	12.02		80%	30.55	367.2	1408	10920	3.8
	11.85		90%	39.43	467.2	1670	11878	3.6
	11.74		100%	44.78	525.7	1815	12293	3.5
	12.32	APC 10x5	40%	14.08	173.5	840	7573	4.8	55.1℃
	12.23		50%	18.97	232.0	1021	8382	4.4
	12.15		60%	23.71	288.1	1196	9005	4.2
	12.06		70%	28.34	341.8	1361	9529	4.0
	11.93		80%	35.67	425.5	1593	10302	3.7
	11.71		90%	46.11	539.9	1861	11112	3.4
	11.57		100%	53.02	613.4	2036	11465	3.3
Notes: The test condition oftemperature is motor surface temperature in 100% throttle while the motor run 15 s.environment temperature 26℃
