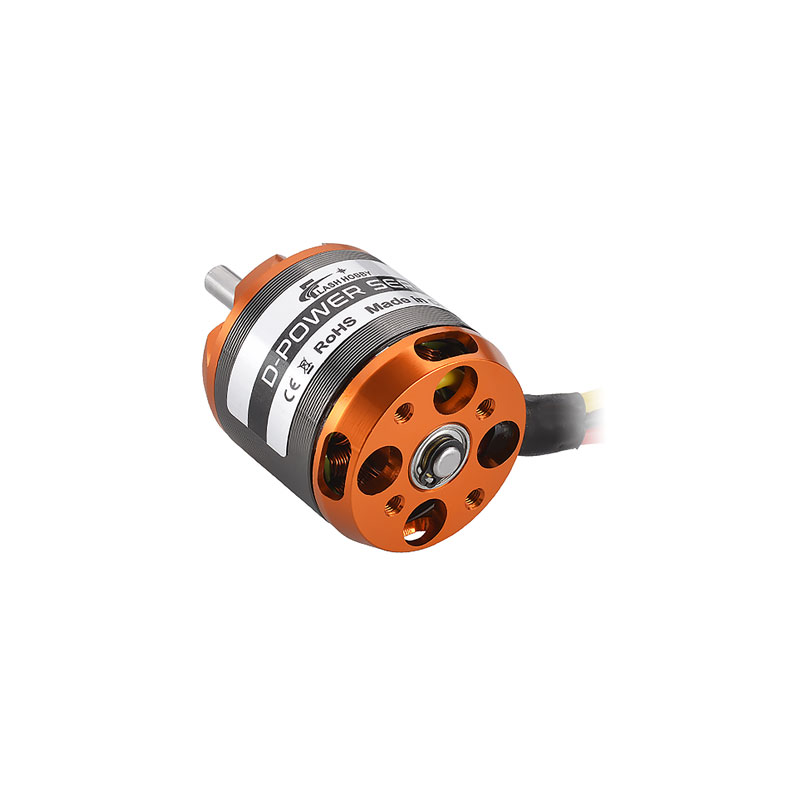

D3542 Fixed Wing Motor
  • D3542 Fixed Wing Motor - 0 D3542 Fixed Wing Motor - 0
  • D3542 Fixed Wing Motor - 1 D3542 Fixed Wing Motor - 1
  • D3542 Fixed Wing Motor - 2 D3542 Fixed Wing Motor - 2

D3542 Fixed Wing Motor

D3542 Fixed Wing Motor
●Weight: 130g
●Motor Size: 35*42mm
●Shaft Size: 5.0*59.5mm
●Motor Mount: 16*19mm(M3*4)
●Working Temperature Range:-0℃~+80℃
●Control Method:Use ESC And Adjust PWM signal For Control,PWM Adjustment Range 900- 2100US
●Motor Type: Outrunner Brushless Motor,Three-phase Motor
●KV Value: 1450KV, 1250KV,1000KV,910KV or customed KV

Send Inquiry

Product Description

D3542 Fixed Wing Motor Application


D3542 Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter
Cradle Coffee Machine Milk Tea Machine Electric Drilling Machine Mowing Machine Robotic Arm


D3542 RC Brushless Motor Features:
42H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing
High Temperature Resistant Copper Wire Winding

RC Brushless Motor Specification

Weight: 130g
Motor Size: 35*42mm
Shaft Size: 5.0*59.5mm
Motor Mount: 16*19mm(M3*4)
Configuration: 12N14P

KV Value for Selection:

KV Value: 1450KV, 1250KV,1000KV,910KV or customed KV


D3542-4-1450KV Motor Specification

Max pull1420g

VoltsDC7.4~15.0V

Suggested ESC: 40A~70A

Maximum Power690W

Suggested Prop: 12inch prop


D3542-5-1250KV Motor Specification

Max pull1350g

VoltsDC7.4~15.0V

Suggested ESC: 40A~70A

Maximum Power690W

Suggested Prop: 8 inch prop


D3542-6-1000KV Motor Specification

Max pull1260g

VoltsDC7.4~15.0V

Suggested ESC: 40A~70A

Maximum Power543W

Suggested Prop: 10 inch prop





MOTOR Drawing:









Product Details:







Application:


Connected instructions



Packed(With Accessory)



Flashhobby motor X1  M3X7*4  crosse*1,  Adapter*1




FAQ

1What is the MOQ of the regular item?

A: There isnt MOQ limited for the stock item. But if need to change the color or design, we will set up the MOQ as per the different request.

2If the order quantity is large, if can apply the discount from dealer price?

A: Yes, we will offer our best offer as per the different request.

3If need change anything when the order confirmed, pls how we can do?

A: If you have request, pls contact with us within 2 days when the order was confirmed, otherwise, it cant be cancelled or change any design of motor.

4How long the delivery time?

A: It is about 7 days when the order is confirmed for the regular item.

5What is the leadtime of OEM/OMD order?

A: Normally it is 15-30 days.

6、What is the MOQ of OEM/OMD order?

A: Single color Motor MOQ-200PCS;

    Multicolor Motor MOQ-1000PCS.
