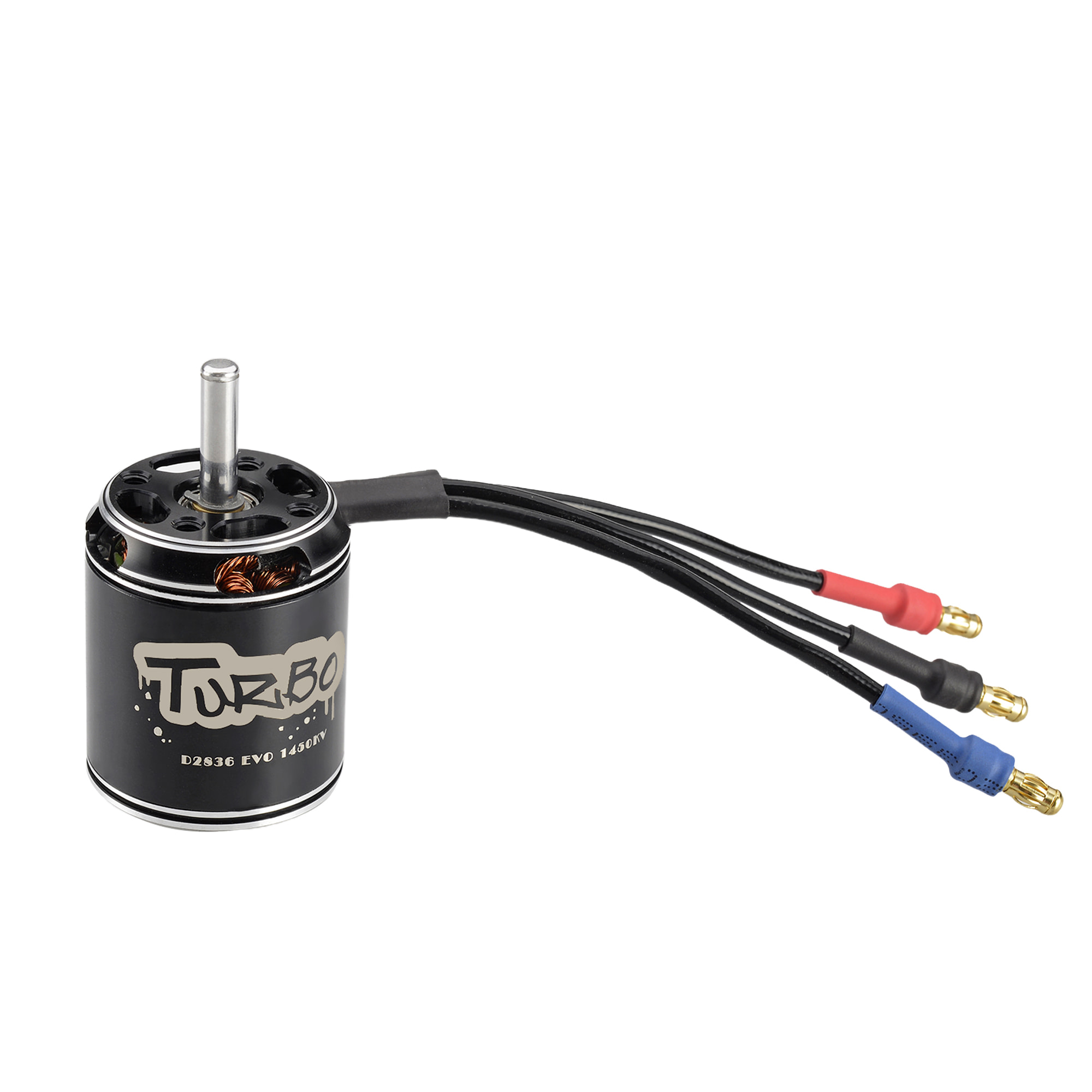

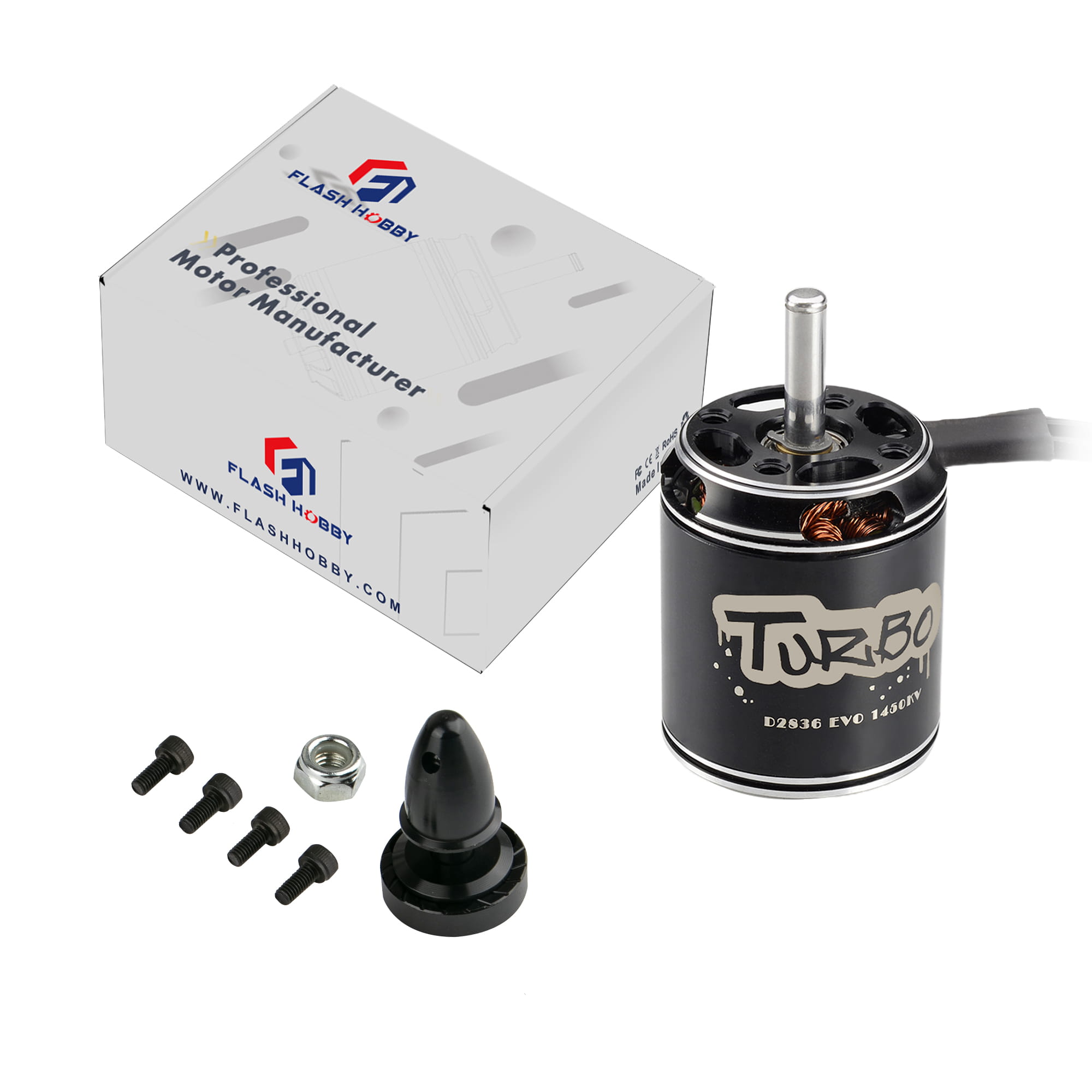

D2836EVO Fixed Wing Motor

Flash Hobby is a D2836EVO Fixed Wing Motor manufacturer and supplier in China.
●Weight: 88.6g(Including wires)
●Motor Size: 28 x36mm
●Shaft Size: 4.051.0mm
●Stator Diameter: 22mm
●Stator Height: 17mm
●Motor Mount: 1619mm(M3*4)
●Configuration: 12N14P
●KV Value: 750KV, 850KV,1100KV,1450KV or customed KV

Model:D2836EVO

Send Inquiry

Product Description

Flash Hobby is a leading China D2836EVO Fixed Wing Motor manufacturer, supplier and exporter. Adhering to the pursuit of perfect quality of products, so that our D2836EVO Fixed Wing Motor have been satisfied by many customers. Extreme design, quality raw materials, high performance and competitive price are what every customer wants, and that's also what we can offer you. Of course, also essential is our perfect after-sales service. If you are interested in our D2836EVO Fixed Wing Motor services, you can consult us now, we will reply to you in time!

D2836 RC Brushless Motor Application

D2836EVO（2217） RC Brushless Motor for UAV Aircraft, Multicopters, RC Plane, Helicopter, Cradle Coffee Machine Milk Tea Machine Electric Drilling Machine Mowing Machine Robotic Arm,Crawler

D2836 RC Brushless Motor Features:
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing

High Temperature Resistant Copper Wire Winding

RC Brushless Motor Specification

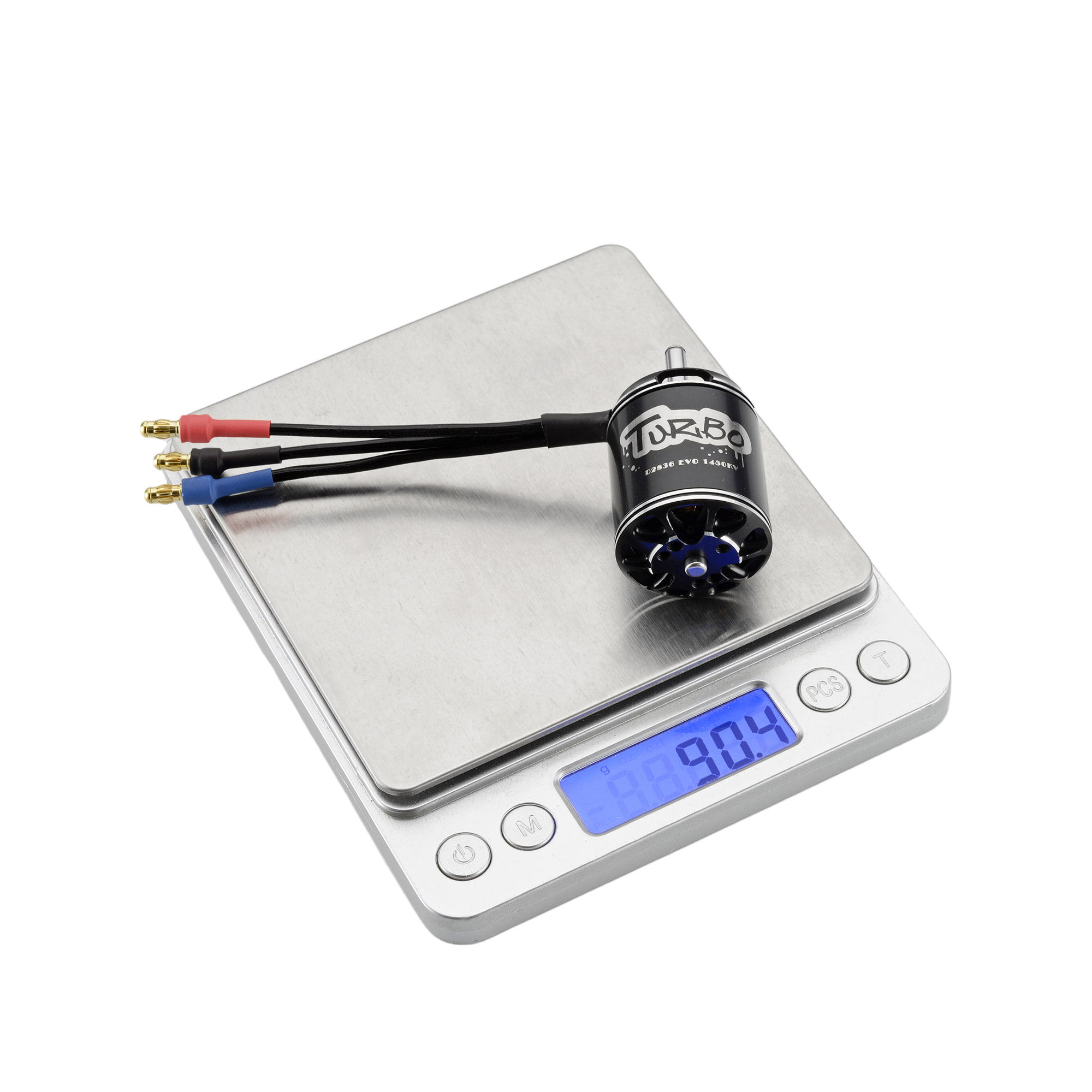

Weight: 88.6g(Including wires)
Motor Size: 28 x36mm
Shaft Size: 4.0*51.0mm
Stator Diameter: 22mm
Stator Height: 17mm
Motor Mount: 16*19mm(M3*4)
Configuration: 12N14P

KV value for Selection

KV Value: 750KV, 850KV,1100KV,1450KV or customed KV

KV: 750KV
Max watts: 194.9W
Max Current: 11.95A
No Load current: 0.74A
Resistance: 124mΩ
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop

KV: 850KV
Max watts: 244.5W
Max Current: 15.11A
No Load current: 0.92A
Resistance: 97.4mΩ
Battery: 3-4S Lipo
Suggested Prop: 10 inch prop

KV: 1100KV
Max watts: 462.7W
Max Current: 30.3A
No Load current: 1.37A
Resistance: 57.9mΩ
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop

KV: 1450KV
Max watts: 739.6W
Max Current: 48.69A
No Load current: 2.24A
Resistance: 33.5mΩ
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop

D2836 EVO Motor Drawing

D2836 EVO Motor TEST DATA:

MOTOR TECHNICAL DATA:
ltem NO.	Volts(V)	Prop	Throttle(%)	CURRENT (A)	Power(W)	Thrust (g)	PRM	Efficiency (g/W)	Operating temperature(℃)
D2836-750KV(EVO)	12.46	APC 9x6	40%	1.95	24.3	220	5441	9.1	30.8℃
	12.45		50%	2.44	30.4	260	5932	8.6
	12.44		60%	2.83	35.2	288	6341	8.2
	12.43		70%	3.21	39.9	318	6639	8.0
	12.41		80%	3.61	44.8	346	6929	7.7
	12.39		90%	4.77	59.1	424	7666	7.2
	12.38		100%	4.88	60.4	425	7766	7.0
	16.59	APC 9x6	40%	3.44	57.1	414	5962	7.2	39.5℃
	16.56		50%	4.52	74.9	498	6612	6.7
	16.53		60%	5.55	91.7	569	7107	6.2
	16.50		70%	6.65	109.7	650	7573	5.9
	16.44		80%	8.54	140.4	764	8323	5.4
	16.33		90%	11.60	189.4	953	9182	5.0
	16.31		100%	11.95	194.9	966	9260	5.0
D2836-850KV(EVO)	12.35	APC 12x6	40%	2.80	34.6	265	3552	7.7	38.8℃
	12.31		50%	4.46	54.9	350	4030	6.4
	12.29		60%	5.61	68.9	454	4604	6.6
	12.26		70%	7.12	87.3	583	5217	6.7
	12.21		80%	9.44	115.3	727	5727	6.3
	12.14		90%	12.95	157.2	825	6296	5.2
	12.13		100%	13.19	160.0	827	6316	5.2
	16.59	10x5	40%	3.46	57.4	387	5102	6.7	39.3℃
	16.56		50%	4.98	82.5	494	5745	6.0
	16.52		60%	6.47	106.9	611	6429	5.7
	16.44		70%	8.51	139.9	736	7077	5.3
	16.34		80%	11.12	181.7	875	7760	4.8
	16.19		90%	14.66	237.3	1026	8409	4.3
	16.18		100%	15.11	244.5	1028	8466	4.2
	16.56	APC 11x7	40%	4.06	67.2	383	4217	5.7	39℃
	16.51		50%	6.02	99.4	497	4794	5.0
	16.45		60%	8.16	134.2	630	5444	4.7
	16.31		70%	11.64	189.8	738	5944	3.9
	16.19		80%	14.58	236.1	859	6394	3.6
	15.95		90%	19.66	313.6	1016	6826	3.2
	15.91		100%	19.79	314.9	1011	6827	3.2
D2836-1100KV(EVO)	12.38	APC 9x6	40%	5.76	71.3	438	6409	6.1	40.3℃
	12.32		50%	7.64	94.1	561	7095	6.0
	12.25		60%	9.51	116.5	661	7642	5.7
	12.19		70%	11.46	139.7	735	8163	5.3
	12.03		80%	14.81	178.2	867	8907	4.9
	11.71		90%	19.42	227.4	998	9666	4.4
	11.66		100%	19.95	232.6	1008	9725	4.3
	16.26	APC8x6	40%	6.71	109.1	509	8519	4.7	41.2℃
	16.19		50%	8.93	144.6	615	9367	4.3
	16.12		60%	11.02	177.6	691	10035	3.9
	16.04		70%	13.13	210.6	783	10635	3.7
	15.78		80%	16.62	262.3	920	11320	3.5
	15.47		90%	21.54	333.2	1049	12247	3.1
	15.32		100%	24.46	374.7	1138	12580	3.0
	16.26	APC 9x6	40%	7.72	125.5	667	7637	5.3	42.4℃
	16.17		50%	10.41	168.3	794	8453	4.7
	16.07		60%	13.03	209.4	912	9119	4.4
	15.84		70%	15.92	252.2	956	9719	3.8
	15.63		80%	20.92	327.0	1210	10617	3.7
	15.35		90%	27.22	417.8	1456	11466	3.5
	15.27		100%	30.30	462.7	1623	11804	3.5
D2836-1450KV(EVO)	12.25	APC9x6	40%	9.81	120.2	618	7540	5.1	43.5℃
	12.04		50%	13.06	157.2	743	8280	4.7
	11.91		60%	16.21	193.1	879	8883	4.6
	11.82		70%	19.69	232.7	995	9475	4.3
	11.63		80%	24.92	289.8	1178	10239	4.1
	11.60		90%	32.92	381.9	1429	11194	3.7
	11.58		100%	37.35	432.5	1535	11602	3.5
	15.97	APC8x4	40%	12.13	193.7	704	10860	3.6	44.2℃
	15.82		50%	16.29	257.7	847	11467	3.3
	15.67		60%	19.77	309.8	945	12423	3.1
	15.70		70%	25.24	396.3	1108	13360	2.8
	15.48		80%	32.96	510.2	1292	14290	2.5
	15.26		90%	43.38	662.0	1497	14668	2.3
	15.19		100%	48.69	739.6	1582	16579	2.1
Notes: The test condition oftemperature is motor surface temperature in 100% throttle while the motor run 15 s.environment temperature 26℃
