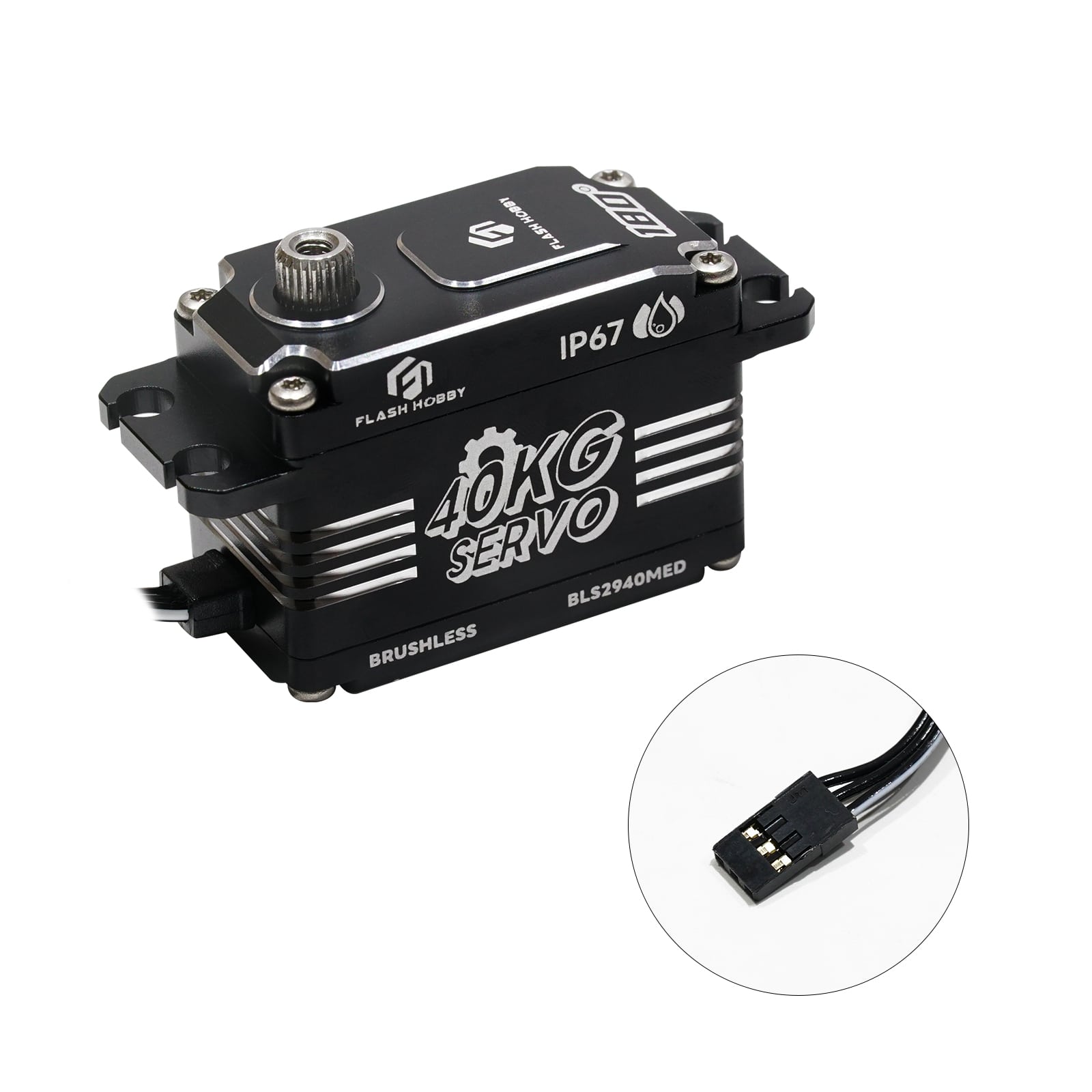

BLS2940MED BLS Servo

BLS2940MED BLS Servo
●Suggested Retail Price: US$76.80
●Size: 40x20x29.5mm
●Weight: 71g±5g(without servo horn)
●Gear: steel gears
●Operating speed: 0.08sec/60° @6.0V
0.07sec/60° @7.4V
0.06sec/60° @8.4V
Stall torque: 32.0kg-cm/444 oz-in @6.0V
37.0kg-cm/ 513 oz-in @7.4V
40.0kg-cm/ 555 oz-in @8.4V
●Motor Type: Brushless Motor
●Signal Type: Digital Control
●Case Material: CNC AL6061 Aluminum Case
●Connector Wire Length: 300MM JR Plug

Model:BLS2940MED

Send Inquiry

Product Description

BLS2940MED Digital Magnetic Sensor Waterproof Dual Ball Bearing 40KG Low Profile Fast Speed Brushless Servo For RC RWD Drift

BLS2940MED BLS Servo Feature

●Programmable PWM Low Profile Digital Servo
●32-Bit MCU with14Bit Magnetic Encoder
●High Precision Steel Gear
●High Quality Brushless Motor
●25-Tooth Output Spline
●Wide Operating Voltage (6.0 ~ 8.4 Volts DC)
●Reliable Dual Ball Bearing
●Water Resistant and Waterproof Case
●Ideal for 1/10, 1/12 On Road, Touring, Drifting, Airplane, Boat, Robot etc.

Programmable Functions
●End Point Adjustments
●Direction
●Fail Safe
●Dead Band
●Speed (Slower)
●Soft Start Rate
●Overload Protection
●Data Save / Load
●Program Reset
