Spaceman 100A

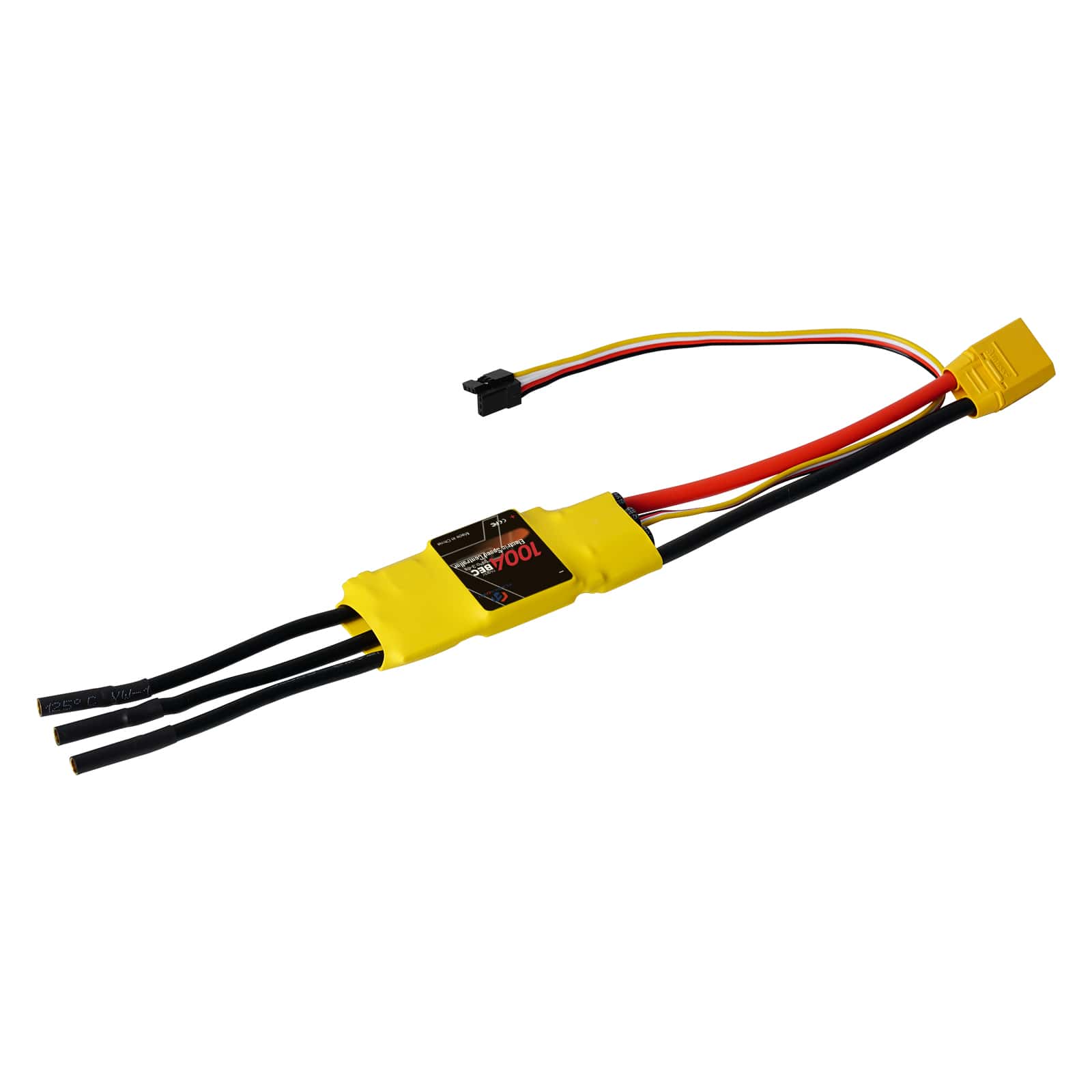

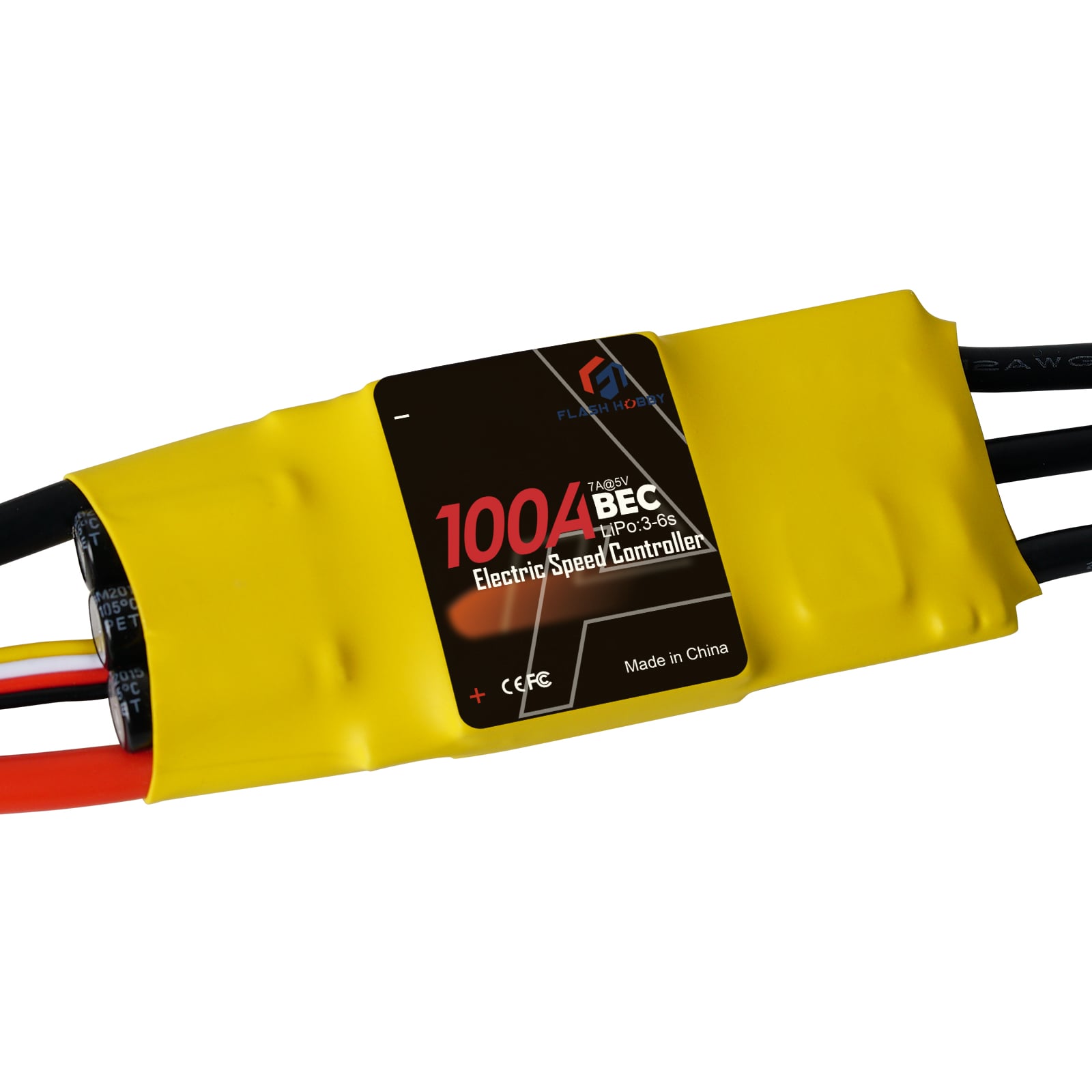

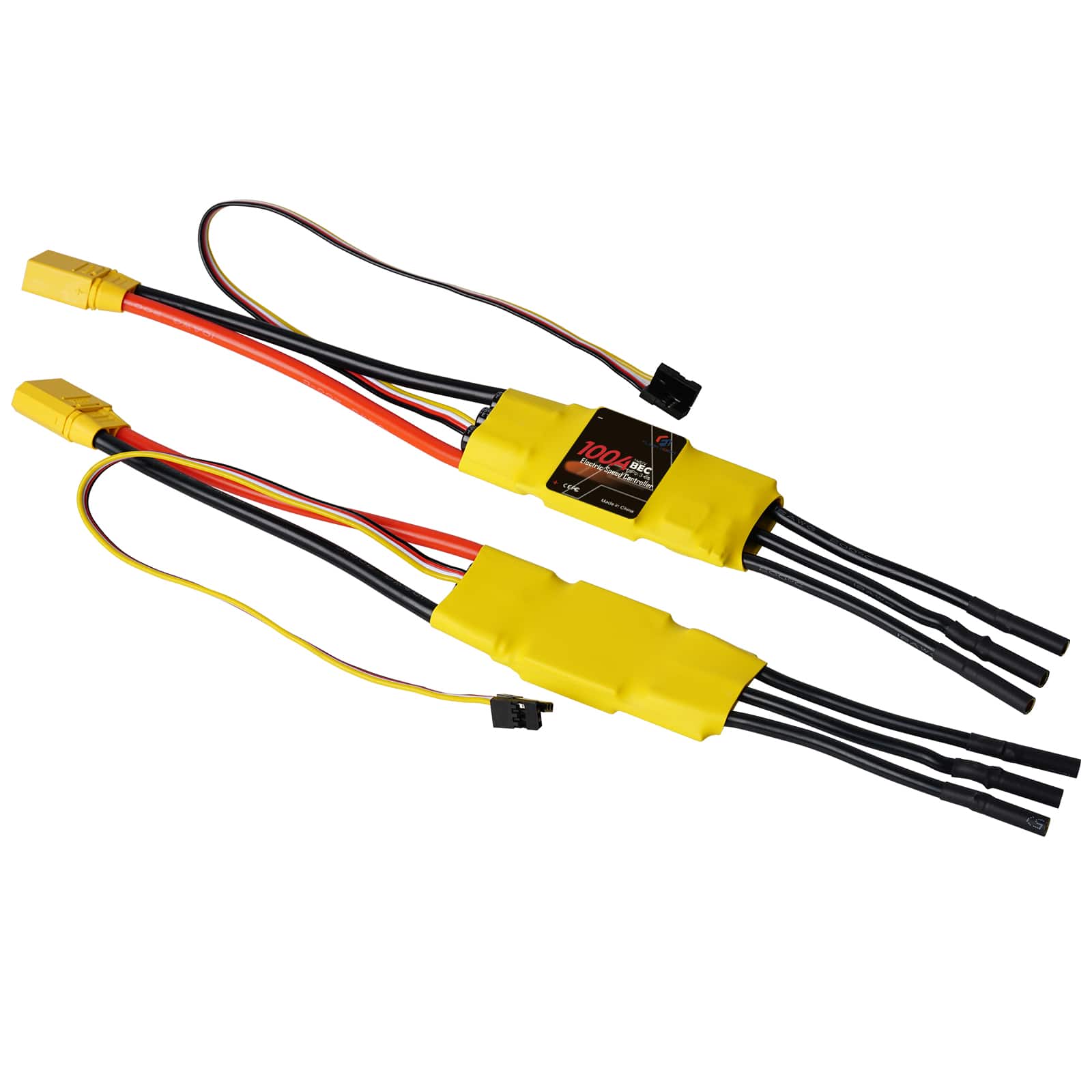

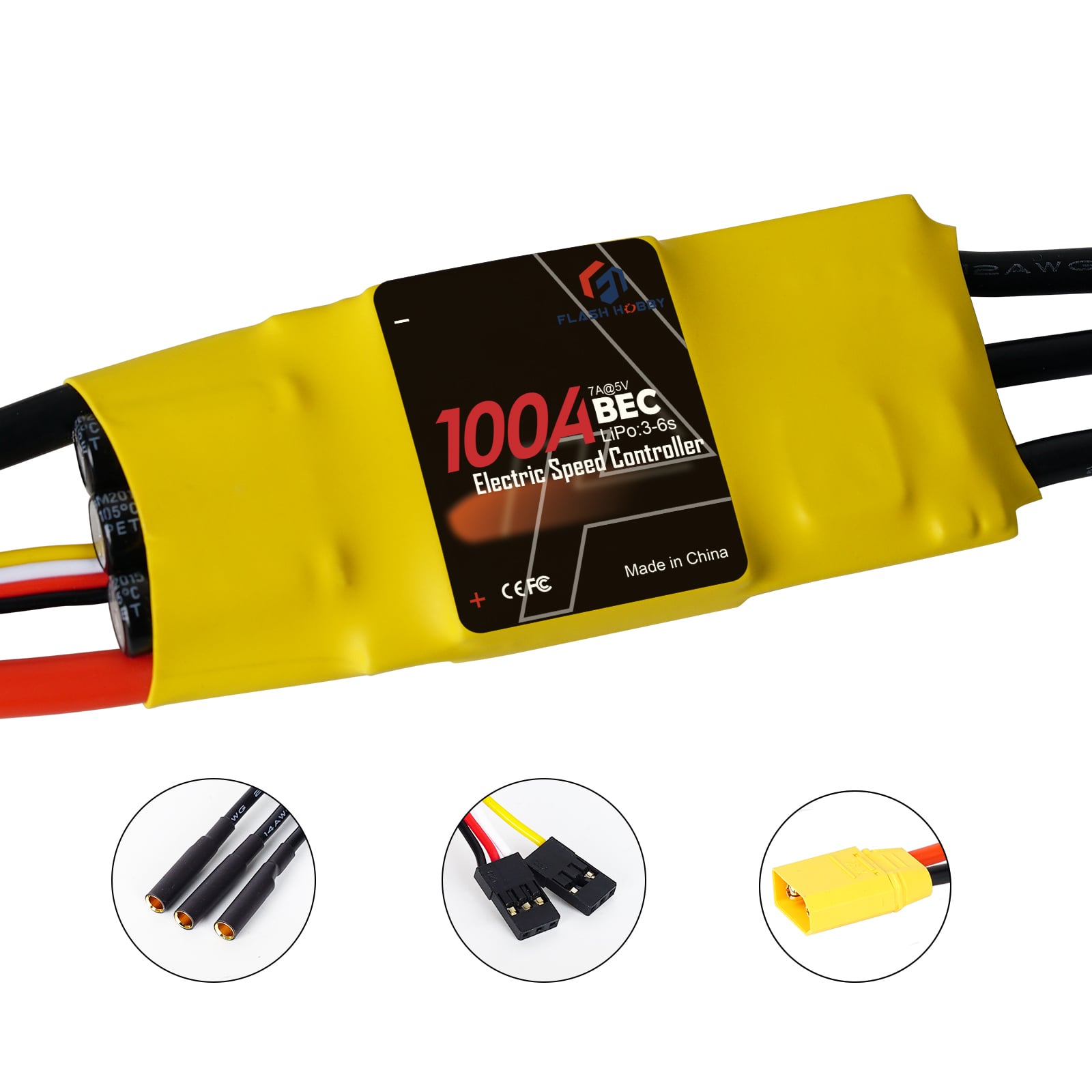

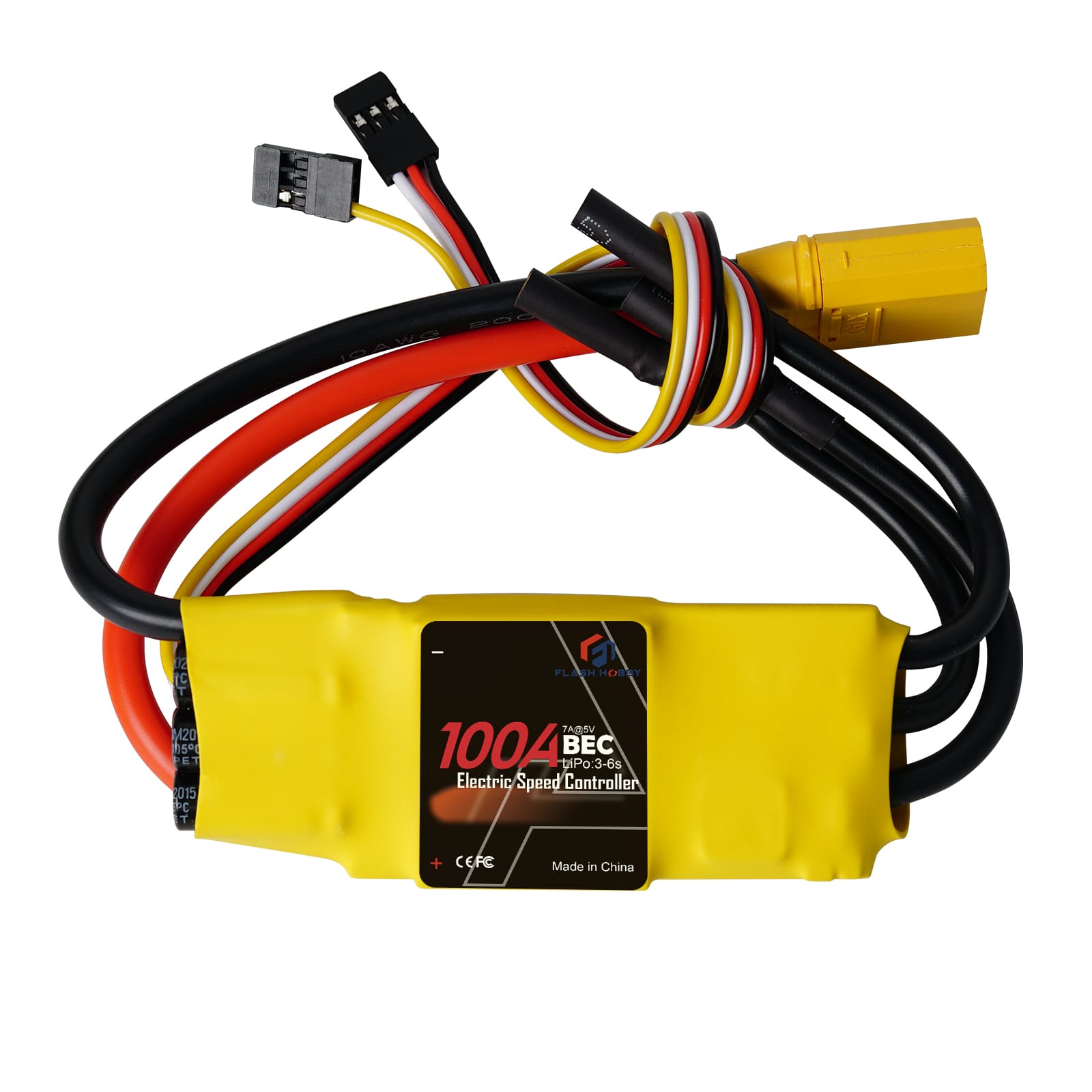

Wholesale low price Spaceman 80A made in China. Flash Hobby is a Spaceman 100A manufacturer and supplier in China.  Spaceman Series 100A 3-6S Speed Controller 5V7A UBEC Brushless HeliCopter Airplane

Item: 300100

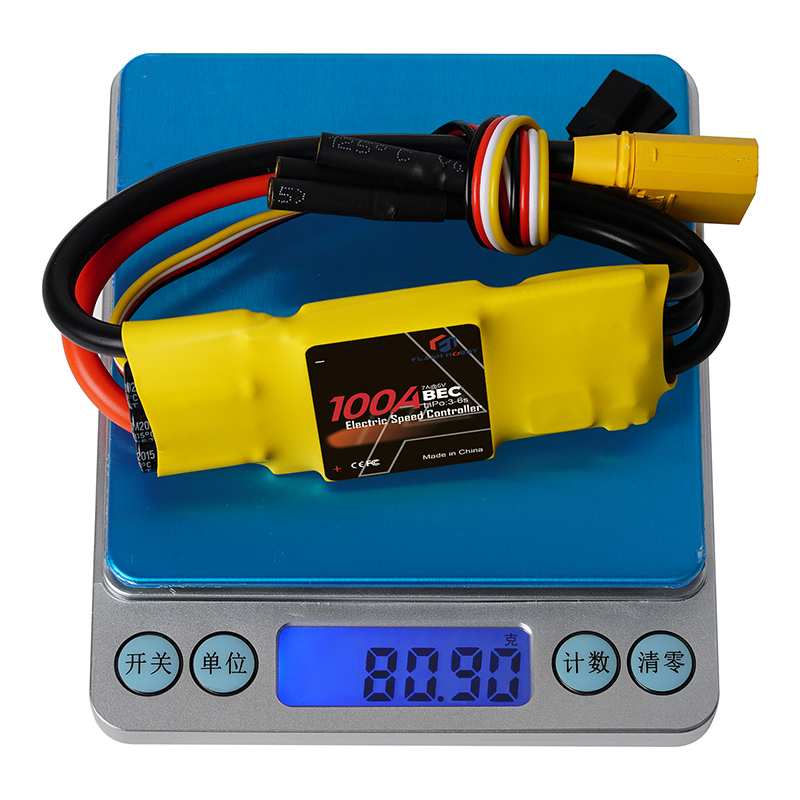

Weight: 80.90g

Size: 85*36*9mm

BEC Mode: Switch

BEC: 5V/7A

BEC Output Capability: 6~8 servos(3-6S)

Continuous:100A

Burst(≤10s):120A

Refresh rate of the throttle signal: 50Hz to 432Hz

ProgrammableItems    (The option written in bold font is the default setting)

1.  Brake Setting： Enabled / Disabled

2.  Battery Type： Lipo / NiMH

3.  Low Voltage Protection Mode(Cut-Off Mode)： Soft Cut-Off (Gradually reduce the output power) /Cut-Off (Immediately stop the output power)

4.  Low Voltage Protection Threshold(Cut-Off Threshold)： Low / Medium / High

1)  For lithium battery, the battery cell number is calculated automatically. Low / medium / high cutoff voltage for each cell is: 2.85V/3.15V/3.3V.  For  example:  For  a  3S  Lipo,  when  “Medium”  cutoff  threshold  is  set,  the  cut-off  voltage  will  be: 3.15*3=9.45V

2)  For NiMH battery, low / medium / high cutoff voltages are 0%/50%/65% of the startup voltage (i.e. the initial voltage of battery pack), and 0% means the low voltage cut-off function is disabled. For example: For a 6 cells NiMH battery, fully charged voltage is 1.44*6=8.64V, when “Medium” cut-off threshold is set, the cut-off voltage will be: 8.64*50%=4.32V。

5.  Startup Mode：Normal /Soft /Super-Soft (300ms / 1.5s / 3s)

6.   Timing： Low / Medium / High,( 3.75°/15°/26.25°)

Usually, low timing is suitable for most motors. To get higher speed, High timing value can be chosen.
