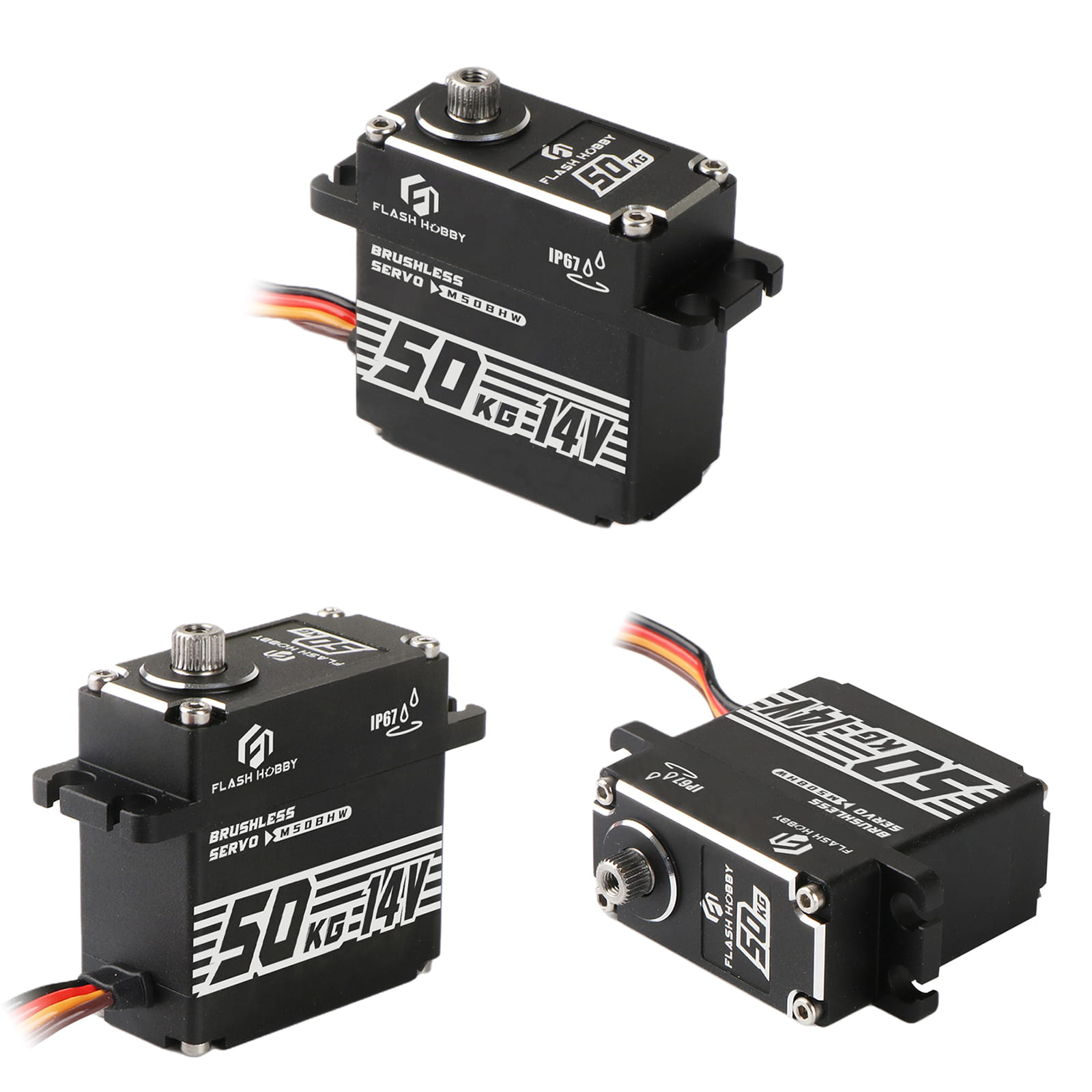

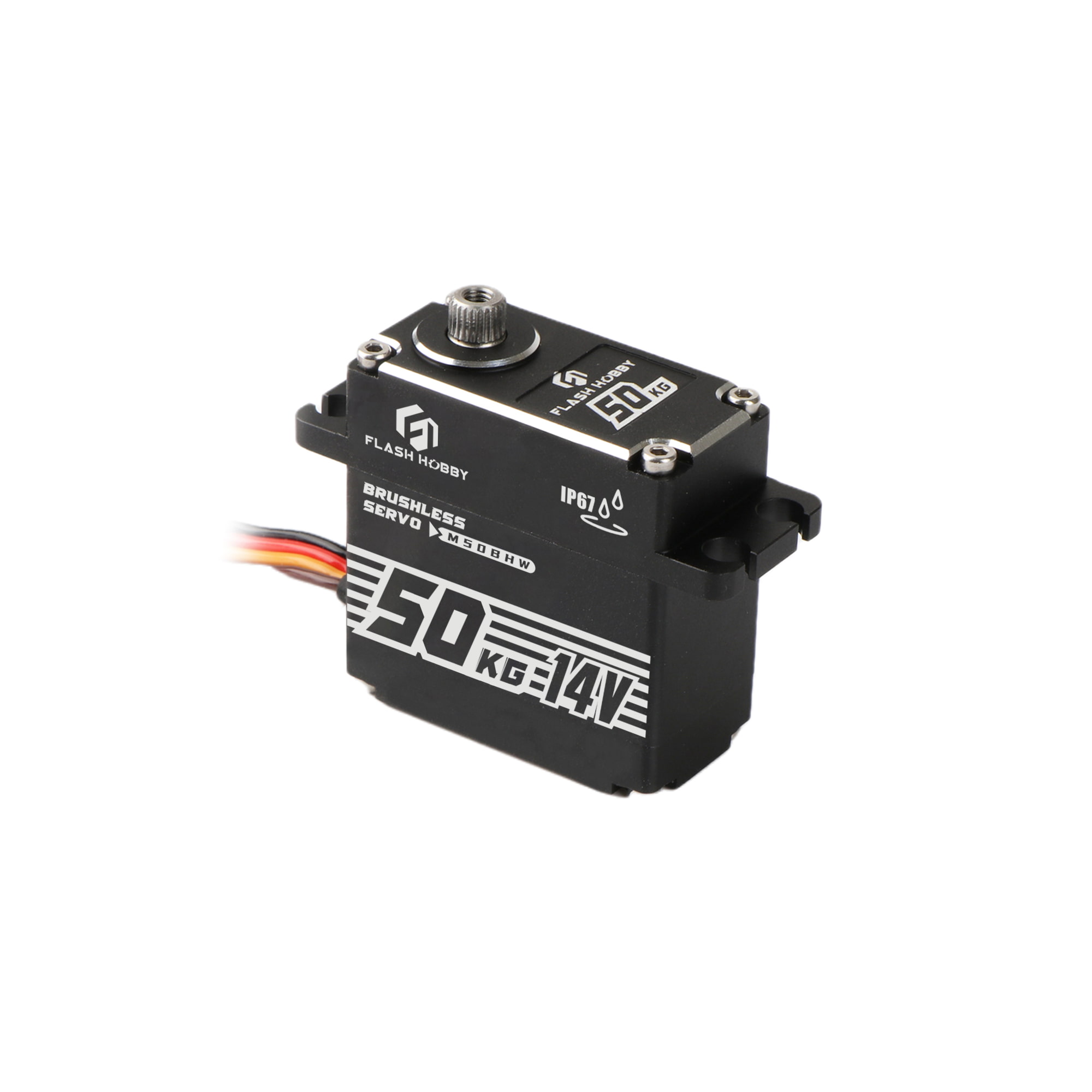

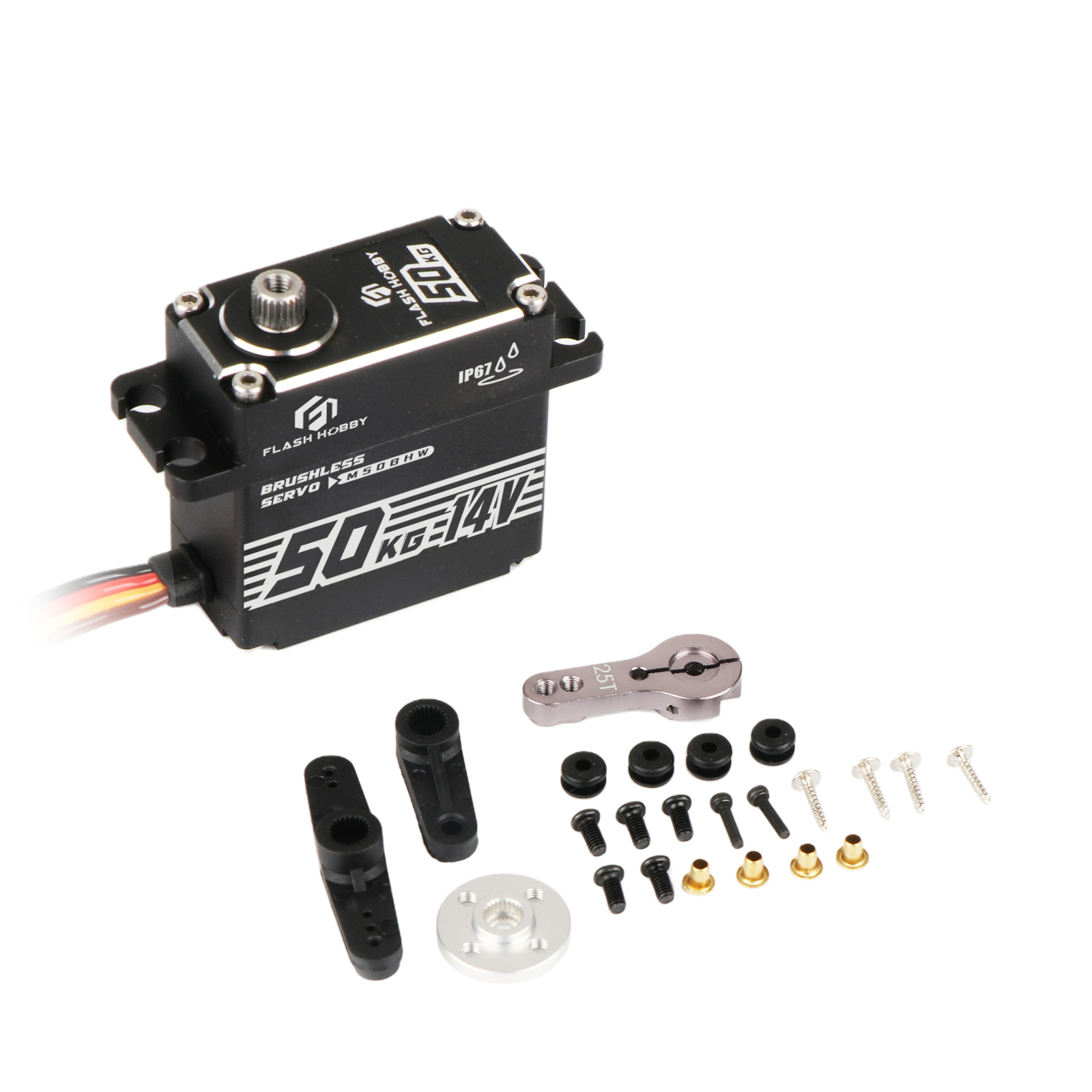

M50BHW 50kg Brushless Servo

Flash Hobby as the professional manufacturer, we would like to provide you M50BHW 50kg Brushless Servo. And we will offer you the best after-sale service and timely delivery.
●Suggested Retail Price: US$49.99
●Diver type:Mos Drive
●Motor Type:Brushless motor
●Potentiometer Type:Direct Drive
●Amplifier Type:Digital Control
●Dimensions:40x20x48.6mm
●Weight::83g (without servo horn)
●Standing Torque:0.12sec/60°,37kg-cm@10.0V
0.09sec/60°,50kg-cm@14V
●Idle Current:300mA@10.0V ; 400mA@14V
●Running Current:4000mA@10.0V ; 5500mA@14V
●Ball Bearing:2BB
●Connector Wire Length: 300MMJR JST Plug

Model:M50BHW

Send Inquiry

Product Description

Wholesale quality discount M50BHW 50kg Brushless Servo. Flash Hobby is a M50BHW 50kg Brushless Servo manufacturer and supplier in China.

FEATURE:

High Performance Digital Standard Servo
High Precision Steel Gear
High Quality Brushless motor
Full CNC AL6082 Aluminium Hulls and Structure
Dual Ball Bearing
Super Long Life

Waterproof

Control System	PWM Control (1500usec in the central point)
Operation Voltage Range	10V ~15V
Operation Temperature Range	-20C°~ +60C°
Circle	＞one million times without load
Operation Travel	60°±1
Limit angle	180° 270° 360°± 1
Direction	Re-clock wise/ Pulse Travel 500→2500 μsec
Diver type	Mos Drive
Motor Type	Brushless Motor
Potentiometer Type	Direct Drive
Amplifier Type	Digital Control
Dimension	40x20x40.5mm

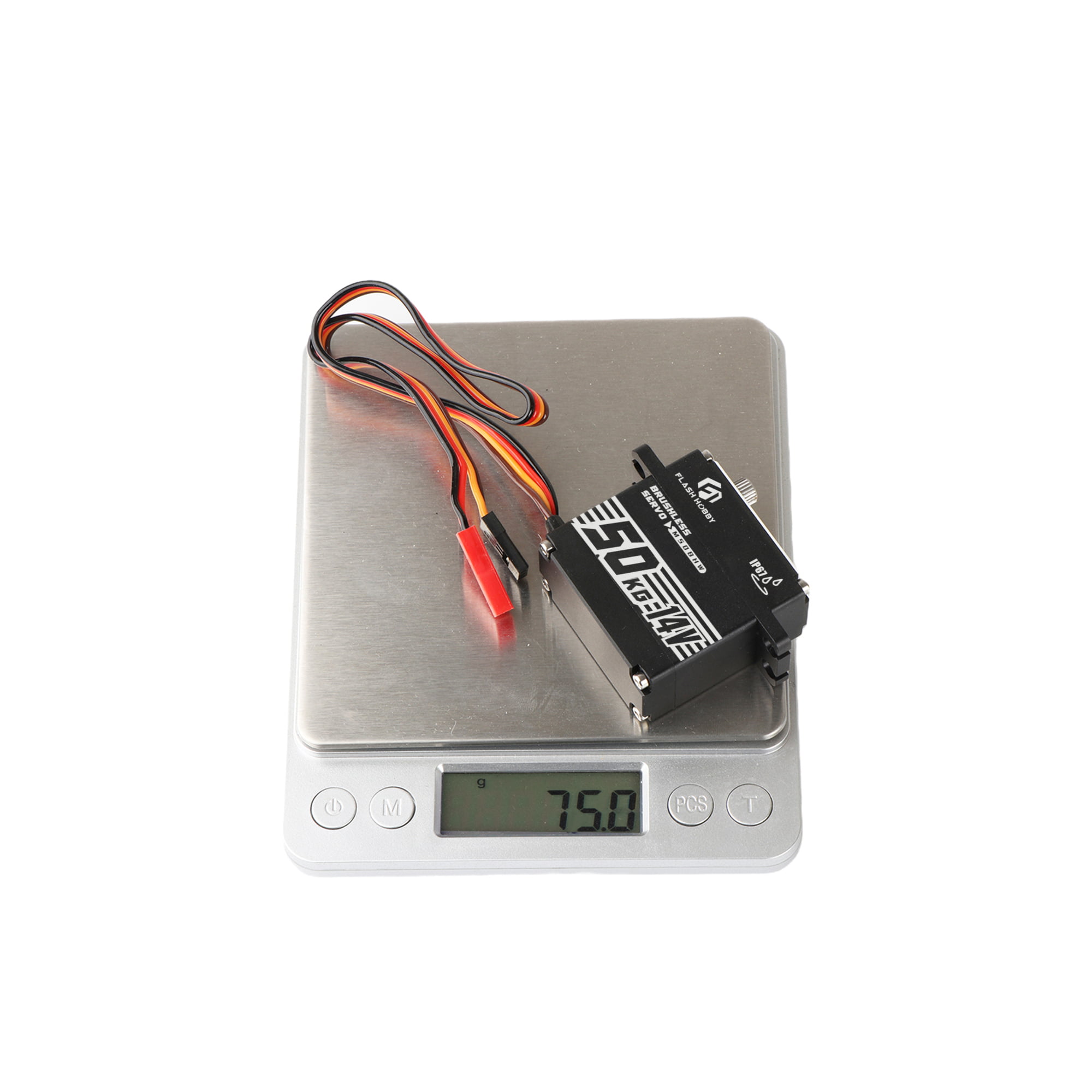

Weight	83g (without servo horn)
Test Voltage	At 10V	At 14V
Standing Torque	37kg-cm	50kg-cm
Speed	0.12sec/60°	0.09sec/60°
Idle Current	300mA	400mA
Running Current	4000mA	5500mA
Dead band width	1usec	1usec
Ball Bearing	2BB
Gear Material	Metal Gear
Case Material	Aluminum Case

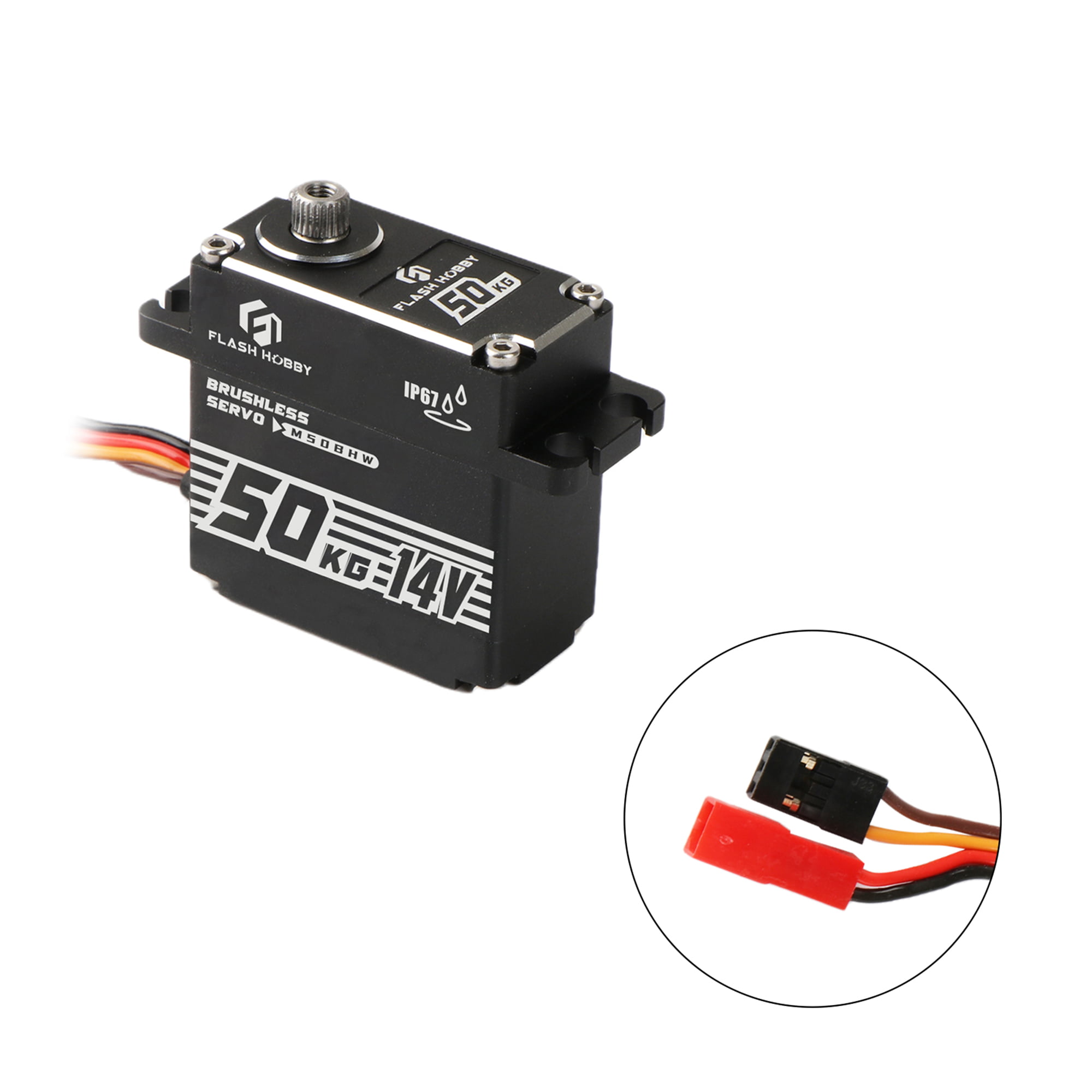

Connector Wire Length	300MM JR JST
Connector Wire Gauge	22AWG
Wire Info（Brown）	Negative
Wire Info （Red）	Positive
Wire Info （Black）	Negative
Wire Info （Yellow）	S Sinqle
