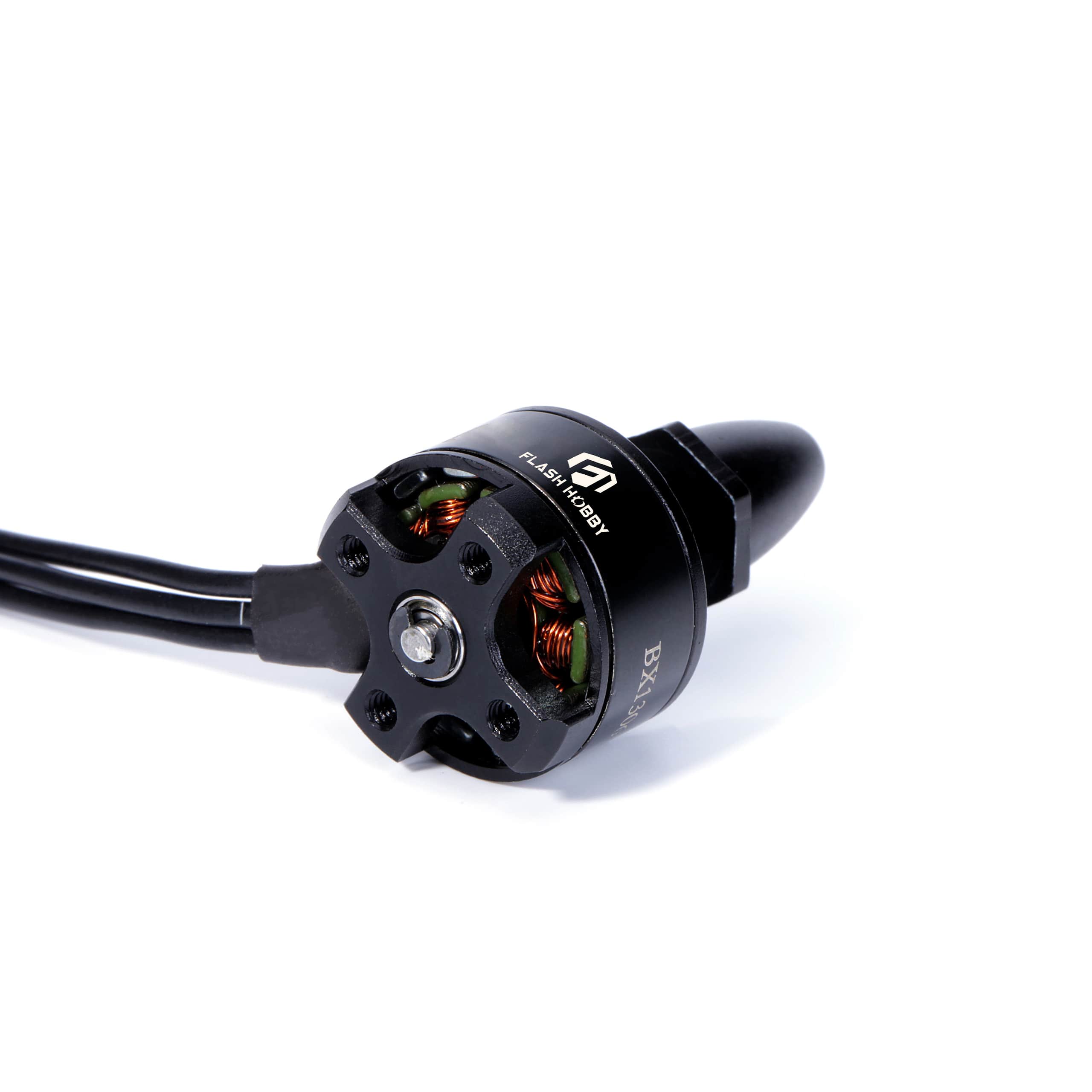

BX1306 Brushless DC Motor

Factory Directly BX1306 Brushless DC Motor made in China. Flash Hobby is a BX1306 Brushless DC Motor manufacturer and supplier in China.
●Weight: 12g (including the cables)
●Motor Size:18 x 15.1mm
●Stator Diameter: 13mm
●Stator Height: 6mm
●Shaft Diameter: 2.0mm
●Mounting Screw Pattern: 9x9mm(M2*4)
●Configuration:9N12P
●Motor Cable:26#Wire 150mm
●NSK Bearing
●6061 Aluminum bell
●KV Value: 3100KV,4000KV or customed KV
●Recommend: 3~4 inch prop application

Send Inquiry

Product Description

You can rest assured to buy BX1306 Brushless DC Motor from Flash Hobby factory and we will offer you the best after-sale service and timely delivery.

BX1306-3100KV Motor Specification

Max pull：339g(3S/GF5040)

Input Voltage：DC7.4-11.10V(1-2S)

Current: 9.86A

Suggested ESC: 7A~12A

Maximum Power：108.6W

Suggested Prop: 4~6 inch prop

BX1306-4000KV Motor Specification

Max pull：395g(3S/GF5040)

Input Voltage：DC7.4-11.10V(1-2S)

Current: 9.39A

Suggested ESC: 7A~12A

Maximum Power：137.6W

Suggested Prop: 4~6 inch prop

Motor Drawing:

Test Datas:

ltem NO.	Prop	Throttle	Volts (V)	Amps (A)	Watts (W)	Thrust (g)	Efficiency (g/W)	Operating temperature(℃)
BX1306 3100kv	GF4045	50%	11.06	0.65	7.19	121	16.83	46℃
		60%	11.06	1.21	13.39	171	12.77
		70%	10.98	2.90	31.84	219	6.88
		80%	11.09	4.86	53.90	269	4.99
		90%	11.09	6.35	70.42	306	4.35
		100%	10.95	6.22	68.11	301	4.42
BX1306 3100kv	GF5040	50%	10.98	1.89	20.75	187	9.01	69.2℃
		60%	11.03	3.91	43.13	247	5.73
		70%	11.03	5.95	65.63	296	4.51
		80%	10.93	8.39	91.70	332	3.62
		90%	11.06	10.34	114.36	355	3.10
		100%	11.03	9.86	108.76	339	3.12
BX1306- 3100kv	GF6040	50%	7.37	0.95	7.00	111	15.85	48.4℃
		60%	7.37	1.75	12.90	161	12.48
		70%	7.37	3.71	27.34	202	7.39
		80%	7.31	5.47	39.99	238	5.95
		90%	7.15	7.30	52.20	262	5.02
		100%	7.23	7.03	50.83	256	5.04
BX1306- 4000kv	GF3028	50%	11.06	0.72	8.0	105	13.19	42℃
		60%	11.09	1.21	13.4	143	10.66
		70%	11.09	2.83	31.4	186	5.93
		80%	11.09	4.59	50.9	231	4.54
		90%	11.03	5.81	64.1	267	4.17
		100%	11.03	5.81	64.1	267	4.17
BX1306- 4000kv	GF3028	50%	14.81	1.21	17.9	160	8.93	54.2℃
		60%	14.78	2.83	41.8	217	5.19
		70%	14.92	4.99	74.5	280	3.76
		80%	14.57	7.03	102.4	345	3.37
		90%	14.68	9.46	138.9	396	2.85
		100%	14.65	9.39	137.6	395	2.87

Product Detail:

Connected instruction:

FAQ

1、What is the MOQ of the regular item?

A: There isn’t MOQ limited for the stock item. But if need to change the color or design, we will set up the MOQ as per the different request.

2、If the order quantity is large, if can apply the discount from dealer price?

A: Yes, we will offer our best offer as per the different request.

3、If need change anything when the order confirmed, pls how we can do?

A: If you have request, pls contact with us within 2 days when the order was confirmed, otherwise, it can’t be cancelled or change any design of motor.

4、How long the delivery time?

A: It is about 7 days when the order is confirmed for the regular item.

5、What is the leadtime of OEM/OMD order?

A: Normally it is 15-30 days.

6、What is the MOQ of OEM/OMD order?

A: Single color Motor MOQ-200PCS

Multicolor Motor MOQ-1000PCS
