BLS4048RP 48KG BLS SERVO

●Suggested Retail Price: US$54.50
●Size: 40x20x40.50mm

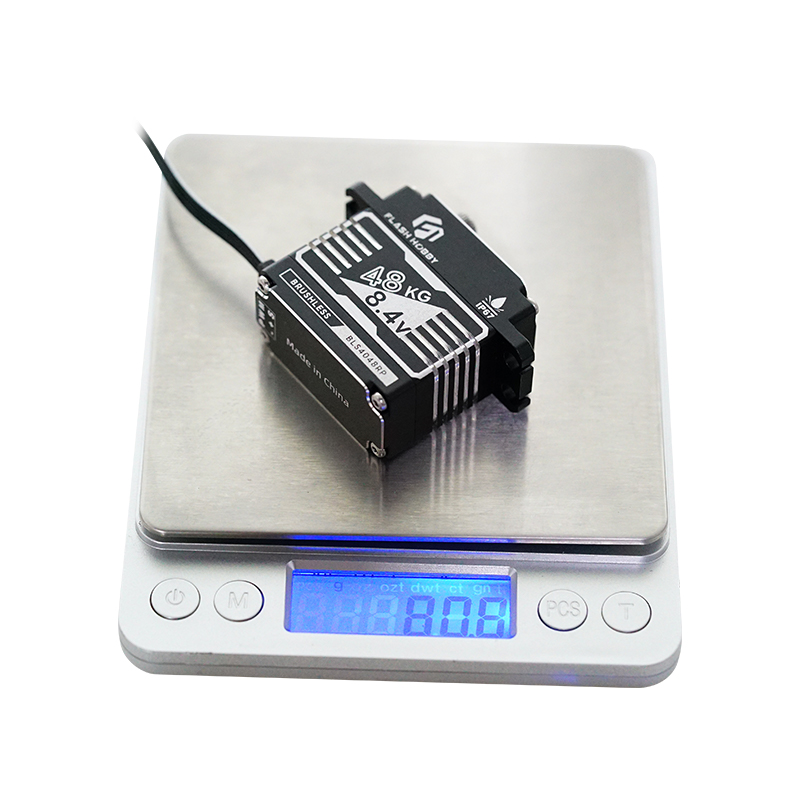

●Weight: 80g±10g(without servo horn)
●Gear: steel helica gears
●Operating speed: 0.13sec/60° @6.0V
0.10sec/60° @7.4V
0.09sec/60° @8.4V
Stall torque: 36.0kg-cm/500 oz-in @6.0V
42.0kg-cm/ 583 oz-in @7.4V
48.0kg-cm/ 666 oz-in @8.4V
●Motor Type: Brushless Motor
●Signal Type: Digital Control
●Case Material: CNC AL6061 Aluminum Case
●Connector Wire Length: 300MM JR Plug

Model:BLS4048RP

Send Inquiry

Product Description

BLS4048RP 8.4V 48KG Super Torque 0.09 SPEED Programmable Servo Brushless Motor compatible with Sanwa SSR, NB4 and Futaba mode


FEATURE:
●Programmable PWM Digital Amplifier
●32-Bit MCU
●High Precision Helical Gear
●Wide Operating Voltage (6.0 ~ 8.4 Volts DC)
●Dual Ball Bearing Supported Output Shaft
●25-Tooth Output Spline
●High Quality Brushless Motor
●Diamond Cut Aluminum Heat Sink Shell
●Water Resistant and Waterproof Case
●Mode Compatible Sanwa SSR, NB4 and Futaba mode

Helica gears will be with small false space, high bite, low noise and hgiht smoothness

Programmable Functions
●End Point Adjustments
●Direction
●Fail Safe
●Dead Band
●Speed (Slower)
●Soft Start Rate
●Overload Protection
●Data Save / Load
●Program Reset
