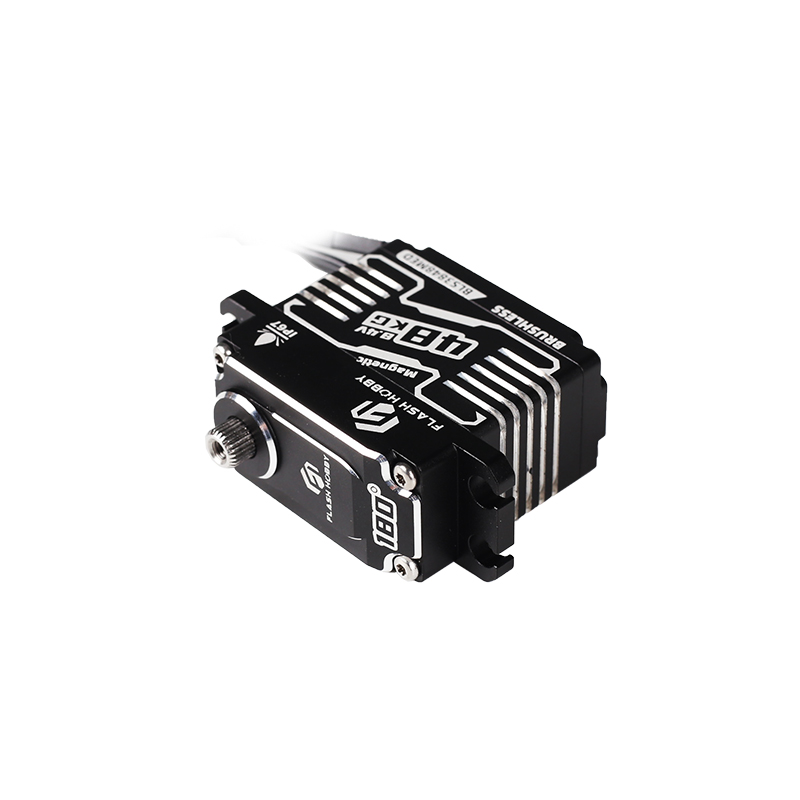

BLS3848MED 48KG BLS Servo

BLS3848MED 48KG BLS Servo
●Suggested Retail Price: US$63.85
●Size: 40x20x38.00mm
●Weight: 80g(without servo horn)
●Gear: Steel Gears
●Operating speed:
0.13sec/60° @6.0V
0.10sec/60° @7.4V
0.09sec/60° @8.4V
●Stall torque:
36.0kg-cm/500 oz-in @6.0V
42.0kg-cm/ 583 oz-in @7.4V
48.0kg-cm/ 666 oz-in @8.4V
●Motor Type: Brushless Motor
●Signal Type: Digital Control
●Case Material: CNC AL6061 Aluminum Case
●Connector Wire Length: 300MM JR Plug

Model:BLS3848MED

Send Inquiry

Product Description

BLS3848MED 8.4V 48KG Super Torque Programmable 14Bit Magnetic Encoder Servo compatible with Sanwa SSR, NB4 and Futaba mode

BLS3848MED 48KG BLS Servo FEATURE:
●Programmable PWM Digital Amplifier
●32-Bit MCU with14Bit Magnetic Encoder
●High Precision Gear
●Wide Operating Voltage (6.0 ~ 8.4 Volts DC)
●Dual Ball Bearing Supported Output Shaft
●25-Tooth Output Spline
●High Quality Brushless Motor
●Diamond Cut Aluminum Heat Sink Shell
●Water Resistant and Waterproof Case
●Mode Compatible Sanwa SSR, NB4 and Futaba mode

Programmable Functions
●End Point Adjustments
●Direction
●Fail Safe
●Dead Band
●Speed (Slower)
●Soft Start Rate
●Overload Protection
●Data Save / Load
●Program Reset
