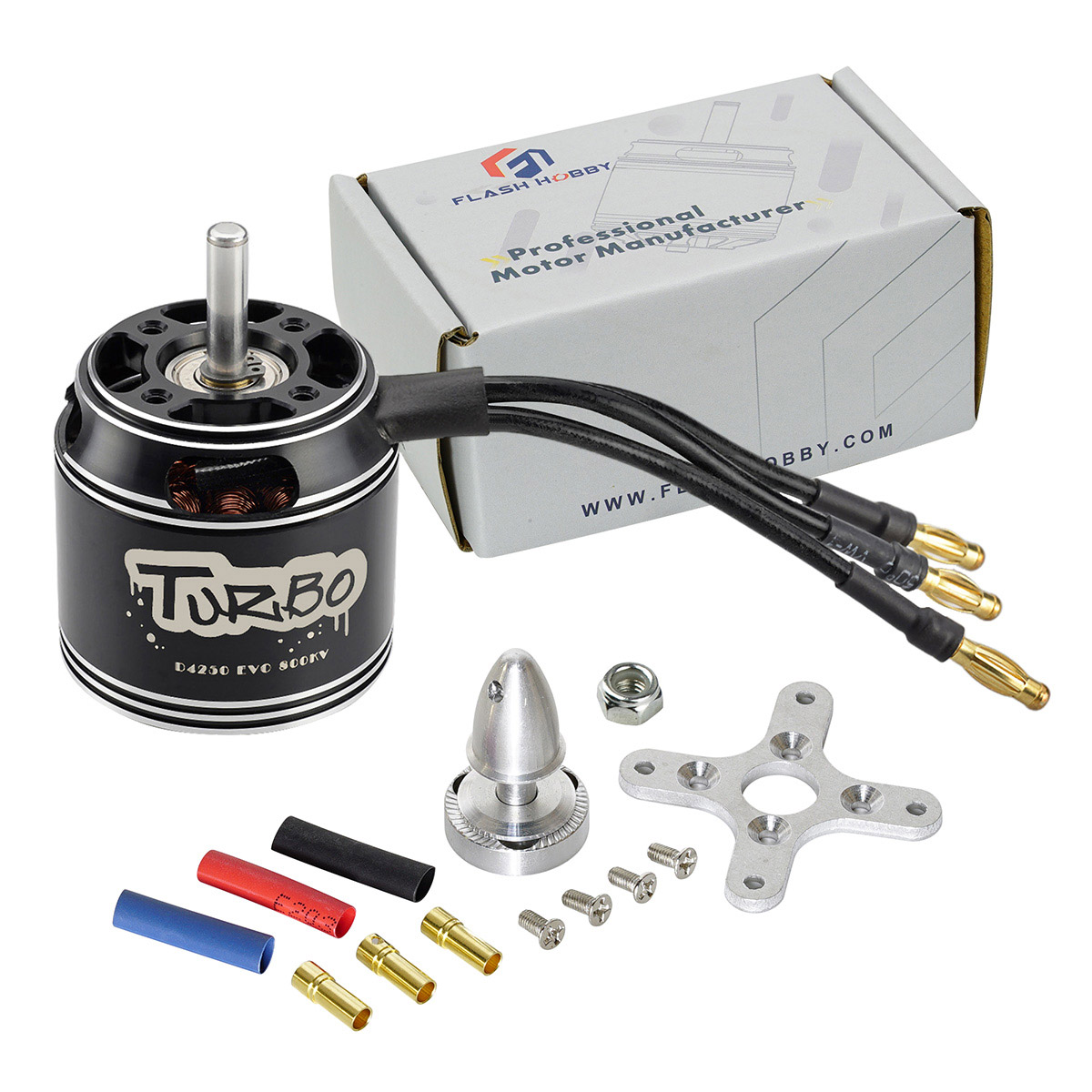

D4250EVO Fixed Wing Motor

You can rest assured to buy customized D4250EVO Fixed Wing Motor from Flash Hobby. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!
●Weight: 209g(Including wires)
●Motor Size: 42.8 x50mm
●Shaft Size: 5.068.0mm
●Stator Diameter: 35mm
●Stator Height: 20mm
●Motor Mount: 2525mm(M3*4)
●Configuration: 12N14P
●KV Value: 600KV, 800KV or customed KV

Model:D4250EVO

Send Inquiry

Product Description

Low Price Quality D4250EVO Fixed Wing Motor In Stock. Flash Hobby is a D4250EVO Fixed Wing Motor manufacturer and supplier in China.

D4250 EVO Brushless DC Motor Application

D4250EVO（3520） Outrunner Brushless DC Motor for Helicopter Cradle Coffee Machine Milk Tea Machine electric drilling machine mowing machine robotic arm

D4250 EVO Brushless DC Motor Features:
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing
High Temperature Resistant Copper Wire Winding

D4250 EVO Brushless DC Motor Specification

Weight: 209g(Including wires)
Motor Size: 42.8 x50mm
Shaft Size: 5.0*68.0mm
Stator Diameter: 35mm
Stator Height: 20mm
Motor Mount: 25*25mm(M3*4)
Configuration: 12N14P

KV Value for Selection:

KV Value: 600KV, 800KV or customed KV

KV: 600KV
Max watts: 1252W
Max Current: 57.83A
No Load current: 1.39A/10V
Resistance: 32.0mΩ
Battery: 5-6S Lipo
Suggested Prop: 14 inch prop

KV: 800KV
Max watts: 1196.0W
Max Current: 60.74A
No Load current: 2.37A/10V
Resistance: 20.3mΩ
Battery: 5-6S Lipo
Suggested Prop: 12 inch prop

D4250 EVO Motor Drawing:

D4250 EVO Motor Test Data:

MOTOR TECHNICAL DATA:
ltem NO.	Volts(V)	Prop	Throttle(%)	CURRENT (A)	Power(W)	Thrust (g)	PRM	Efficiency (g/W)	Operating temperature(℃)
D4250-600KV(EVO)	18.94	APC 12x6	40%	5.23	99.1	698	5546	7.0	48.0℃
	18.89		50%	7.10	134.1	755	6216	5.6
	18.83		60%	9.08	171.0	998	6766	5.8
	18.74		70%	11.32	212.1	1174	7281	5.5
	18.61		80%	15.02	279.5	1426	7966	5.1
	18.46		90%	20.94	386.6	1817	8713	4.7
	18.32		100%	26.21	480.2	2068	9373	4.3
	19.03	APC 14x7	40%	5.95	113.2	844	4735	7.5	56.2℃
	18.97		50%	8.48	160.9	1091	5365	6.8
	18.88		60%	12.02	226.9	1355	6001	6.0
	18.74		70%	17.90	335.4	1871	6763	5.6
	18.51		80%	24.27	449.2	2287	7417	5.1
	18.30		90%	32.63	597.1	2736	8059	4.6
	18.15		100%	41.61	755.2	3174	8573	4.2
	22.99	APC 12x6	40%	6.77	155.6	909	6436	5.8	52.7℃
	22.93		50%	9.31	213.5	1158	7186	5.4
	22.85		60%	12.16	277.9	1395	7790	5.0
	22.62		70%	15.96	361.0	1677	8461	4.6
	22.48		80%	21.78	489.6	2071	9284	4.2
	22.40		90%	29.94	670.7	2533	10172	3.8
	22.20		100%	38.53	855.4	2920	10806	3.4
	22.81	APC 14x7	40%	7.66	174.7	1139	5426	6.5	64.3℃
	22.73		50%	11.14	253.2	1388	6153	5.5
	22.58		60%	16.78	378.9	1960	6966	5.2
	22.39		70%	24.68	552.6	2548	7775	4.6
	22.22		80%	33.69	748.6	3099	8495	4.1
	21.92		90%	45.47	996.7	3668	9139	3.7
	21.65		100%	57.83	1252.0	4161	9623	3.3
D4250-800KV(EVO)	18.91	APC 12x6	40%	11.22	212.2	1141	6939	5.4	57.6℃
	18.82		50%	15.76	296.6	1436	7757	4.8
	18.72		60%	21.13	395.6	1762	8456	4.5
	18.57		70%	28.39	527.2	2123	9221	4.0
	18.28		80%	38.45	702.9	2567	10028	3.7
	17.87		90%	48.50	866.7	2904	10769	3.4
	17.34		100%	56.31	976.4	3215	11834	3.3
	22.68	APC 12x6	40%	11.55	262.0	1368	6036	5.2	59.1℃
	22.29		50%	18.25	406.8	1955	6930	4.8
	22.05		60%	29.28	645.6	2661	7918	4.1
	21.92		70%	45.01	986.6	3442	8830	3.5
	20.90		80%	56.96	880.0	3811	9314	4.3
	19.90		90%	58.80	940.6	3664	9099	3.9
	19.69		100%	60.74	1196.0	3716	9266	3.1
