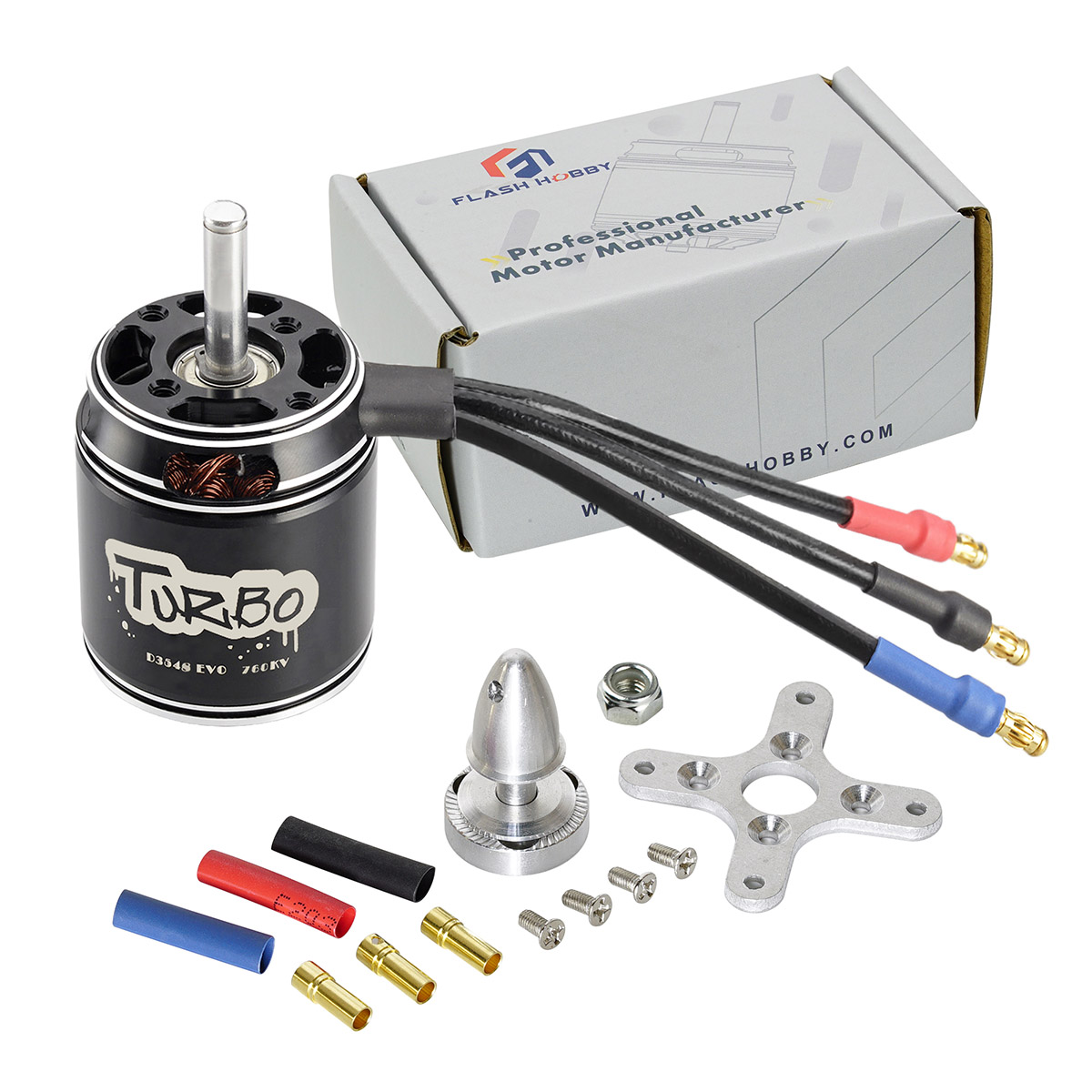

D3548EVO Fixed Wing Motor

As a professional high quality D3548EVO Fixed Wing Motor manufacturer, you can rest assured to buy D3548EVO Fixed Wing Motor from Flash Hobby factory and we will offer you the best after-sale service and timely delivery.
●Weight: 170g(Including wires)
●Motor Size: 35.3 x48mm
●Shaft Size: 5.0*65.5mm
●Stator Diameter: 28mm
●Stator Height: 26mm
●Motor Mount: 19*25mm(M3*4)
●Configuration: 12N14P
●KV Value: 790KV, 900KV,1150KV or customed KV

Model:D3548EVO

Send Inquiry

Product Description

Hot Sale China D3548EVO Fixed Wing Motor Manufacturers and Suppliers. Flash Hobby is a D3548EVO Fixed Wing Motor manufacturer and supplier in China.

D3548 EVO RC Brushless Motor Application

D3548EVO(2826) RC Outrunner Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter


D3548 EVO RC Brushless Motor Features:
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing

High Temperature Resistant Copper Wire Winding


D3548 EVO RC Brushless Motor Specification

Weight: 170g(Including wires)
Motor Size: 35.3 x48mm
Shaft Size: 5.0*65.5mm
Stator Diameter: 28mm
Stator Height: 26mm
Motor Mount: 19*25mm(M3*4)
Configuration: 12N14P

KV Value for Selection:

KV Value: 790KV, 900KV,1150KV or customed KV


KV: 790KV
Max watts: 353.6W
Max Current: 29.44A
No Load current: 1.54A/10V
Resistance: 34.4mΩ
Battery: 3-4S Lipo
Suggested Prop: 13 inch prop

KV: 900KV
Max watts: 1324.1W
Max Current: 55.8A
No Load current: 2.66A/10V
Resistance: 24.0mΩ
Battery: 3-6S Lipo
Suggested Prop: 9 inch prop

KV: 1150KV
Max watts: 623.8W
Max Current: 54.62A
No Load current: 3.34A/10V
Resistance: 19.0mΩ
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop


D3548 EVO Motor Drawing:


D3548 EVO Motor Test Data:

MOTOR TECHNICAL DATA:
ltem NO. Volts(V) Prop Throttle(%) CURRENT (A) Power(W) Thrust  (g) PRM Efficiency    (g/W) Operating           temperature()
D3548-760KV(EVO) 12.48  APC 12x6 40% 4.24  52.9  479  4862  9.0  39.5
12.46  50% 5.94  74.0  590  5360  8.0
12.43  60% 7.49  93.1  732  5772  7.9
12.40  70% 9.02  111.8  771  6136  6.9
12.36  80% 11.56  142.9  910  6606  6.4
12.28  90% 15.91  195.4  1171  7293  6.0
12.24  100% 18.24  223.3  1301  7600  5.8
12.46  APC 13x6.5 40% 5.05  62.9  568  4141  9.0  40.2
12.43  50% 7.36  91.5  726  4609  7.9
12.38  60% 9.76  120.8  888  5005  7.4
12.33  70% 13.21  162.9  1086  5503  6.7
12.22  80% 18.85  230.3  1339  6092  5.8
12.08  90% 25.95  313.5  1632  6639  5.2
12.01  100% 29.44  353.6  1755  6880  5.0
24.80  7x5 40% 8.02  198.9  711  10919  3.6  40.6
24.75  50% 10.45  258.6  812  12000  3.1
24.72  60% 12.62  312.0  924  12829  3.0
24.68  70% 15.04  371.2  1089  13430  2.9
24.64  80% 17.22  424.3  1214  14041  2.9
24.52  90% 22.67  555.9  1499  15252  2.7
24.47  100% 26.20  641.1  1623  15895  2.5
D3548-900KV(EVO) 12.43  APC 14x7 40% 9.10  113.1  804  4665  5.6  41.8
12.35  50% 12.72  157.1  1012  5209  5.4
12.29  60% 16.33  200.7  1240  5654  5.2
12.16  70% 21.92  266.5  1471  6198  4.8
11.76  80% 28.42  334.2  1785  6692  4.8
11.61  90% 37.49  435.3  2143  7229  4.6
11.49  100% 41.96  482.1  2277  7446  4.4
12.03  APC 15x8 40% 9.26  111.4  832  4142  7.5  43.7
12.01  50% 13.09  157.2  1041  4669  6.6
11.90  60% 17.61  209.6  1280  5099  6.1
11.79  70% 24.54  289.3  1575  5720  5.4
11.62  80% 33.24  386.2  1878  6257  4.9
11.32  90% 43.07  487.6  2257  6679  4.6
11.36  100% 49.12  558.0  2451  6905  4.4
16.55  APC 12x6 40% 11.88  196.6  1038  6768  5.3  45.1
16.47  50% 16.08  264.8  1310  7463  4.9
16.38  60% 20.36  333.5  1534  8021  4.6
16.28  70% 25.03  407.5  1745  8566  4.3
16.05  80% 32.93  528.5  2099  9243  4.0
15.72  90% 43.57  684.9  2457  9911  3.6
15.61  100% 49.24  768.6  2601  10235  3.4
16.45  APC 13x6.5 40% 13.56  223.1  1181  5666  5.3  46.3
16.12  50% 18.79  302.9  1336  6229  4.4
15.95  60% 25.25  402.7  1715  6830  4.3
15.68  70% 34.88  546.9  2081  7425  3.8
15.44  80% 45.69  705.5  2442  7998  3.5
15.41  90% 60.97  939.5  2729  8566  2.9
14.97  100% 65.43  979.5  2802  8619  2.9
24.82  APC 9x6 40% 15.78  391.7  1335  11047  3.4  47.9
24.69  50% 20.90  516.0  1687  12063  3.3
24.58  60% 25.69  631.5  1945  12928  3.1
24.43  70% 30.84  753.4  2221  13648  2.9
24.05  80% 39.76  956.2  2624  14643  2.7
23.76  90% 52.71  1252.4  3132  15864  2.5
23.73  100% 55.80  1324.1  3203  16065  2.4
D3548-1150KV(EVO) 12.44  APC9x6 40% 13.78  171.4  848  6461  4.9  44.7
12.34  50% 18.73  231.1  1129  7111  4.9
11.99  60% 22.77  273.0  1282  7546  4.7
11.90  70% 28.18  335.3  1488  8058  4.4
11.65  80% 36.04  419.9  1763  8645  4.2
11.50  90% 47.80  549.7  2050  9365  3.7
11.42  100% 54.62  623.8  2241  9693  3.6
14.36  10x5 40% 14.29  205.2  936  8096  4.6  43.4
14.26  50% 19.06  271.8  1154  8900  4.2
14.16  60% 23.51  332.9  1340  9549  4.0
13.77  70% 27.19  374.4  1469  9915  3.9
13.66  80% 33.96  463.9  1712  10666  3.7
13.49  90% 44.66  602.5  2032  11616  3.4
13.37  100% 49.80  665.8  2150  12003  3.2
18.21  APC8x4 40% 14.56  265.1  952  11804  3.6  42.5
18.10  50% 18.65  337.6  1131  12825  3.4
17.86  60% 22.19  396.3  1310  13595  3.3
17.78  70% 25.65  456.1  1432  14278  3.1
17.66  80% 29.26  516.7  1583  14840  3.1
17.50  90% 36.98  647.2  1850  16061  2.9
17.33  100% 42.39  734.6  2029  16579  2.8
Notes: The test condition oftemperature is motor surface temperature in 100% throttle while the motor run 15 s.environment temperature 26℃
