XSD 7A ESC

China XSD 7A ESC Factory Directly Supply. Flash Hobby is XSD 7A ESC manufacturer and supplier in China. 7A Micro DSHOT600 BLHeli_S Brushless ESC 1.0g 1-2S Lipo Input For RC Quadcopter Racing

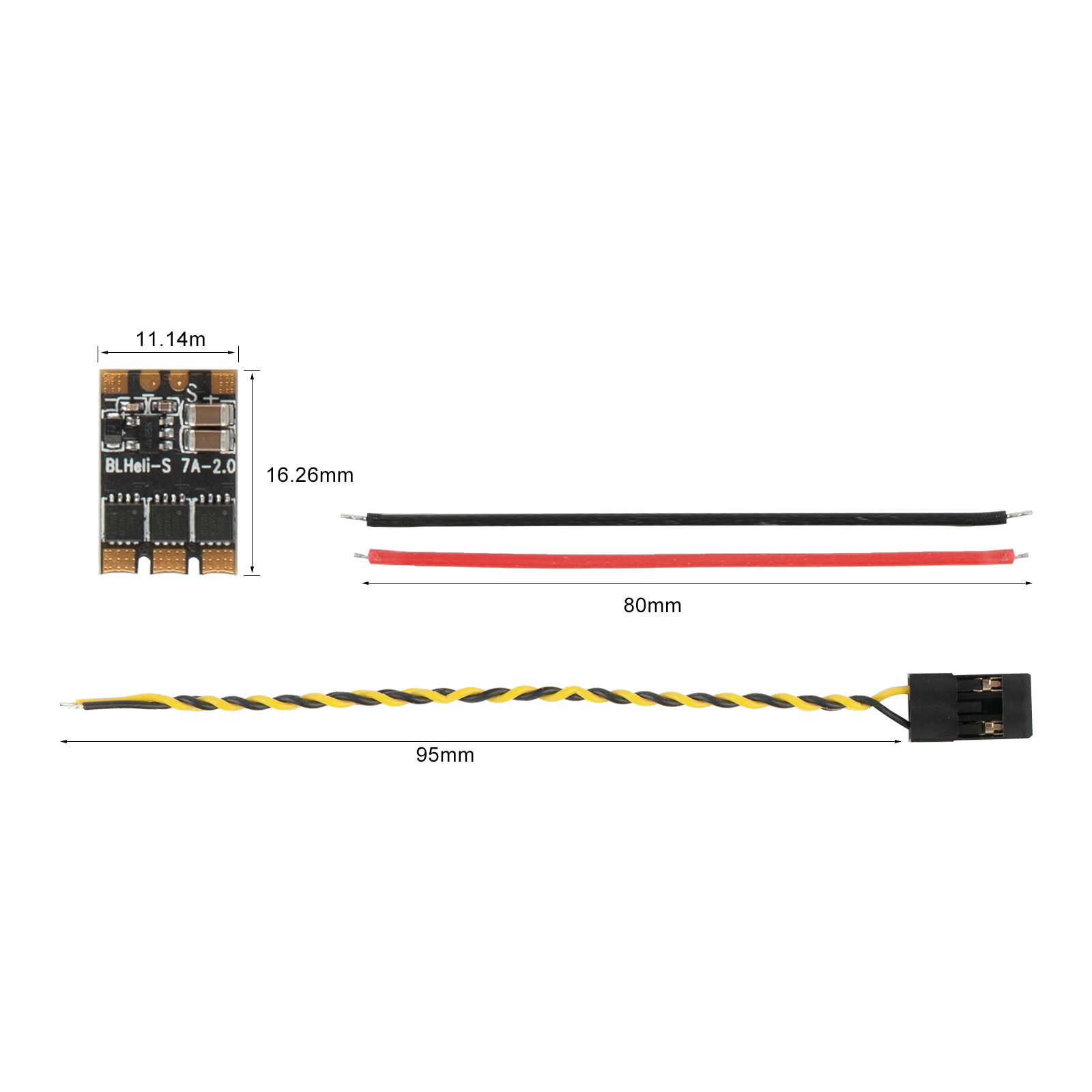

Size：11.14*16.26 mm
Net：1.0g
Working Voltage：1-2S
Continuous：7A
Burst(≤10s)：10A
Support：Dshot600/ 300/150, PWM, Oneshot125/42, Multishot, Damped Mode
Firmware：BLHELI_S

Features

1. Using the American Siliconlabs EFM8BB21F16G  QFN-20 MCU, the operating frequency is up to 50MHz;

2. Dedicated high-speed drive IC makes the start-up smoother. The ESC supports up to 500,000 rpm.

3. BLHeli-S firmware can be upgraded online via signal cable, program update is simpler; designed for multi-rotor to enhance superior performance, hardware generated motor PWM can improve smooth throttle response and reduce noise.

4. Damped light produces regenerative braking, which makes it more efficient. The motor decelerates more quickly when the throttle changes from large to small, and the stability and flexibility of the multi-rotor is significantly enhanced.

5. Support higher KV motor, more power load, suitable for violent flight of racing multi-rotor.

6. If you use the flight control of CleanFlight or BetaFlight firmware, you can use the flight control link BLHeli debugging software to set four ESC parameters at a time.

7. The ESC automatically detects the throttle signal and supports the pulse width input, Oneshot and Multishot of the normal PWM throttle mode of 1-2ms.

8. Support Dshot150, Dshot300 and Dshot600. Dshot is a digital signal with strong anti-interference ability, and the ESC does not need to calibrate the throttle stroke.

9. The signal line is a twisted-pair silicone cable, which increases its service life and more effectively reduces the interference caused by the transmission of signals in the copper wire, making the flight more stable.
