VTX03 5.8G 72CH 0mW 25mW 50mw 200mW

Brand name: AVTX03
Item name: vTx03 Super Mini FPV Transmitter
Output power: 0/25mW/50mW/200mW switchable (Set output power on 0, to avoid frequency interference)
Input voltage: 3.2-5.5V
5V camera supply,570mA(MAX)---200mW
5V camera supply,450mA(MAX)---50mW
5V camera supply,360mA(MAX)---25mW
Video system: NTSC/PAL

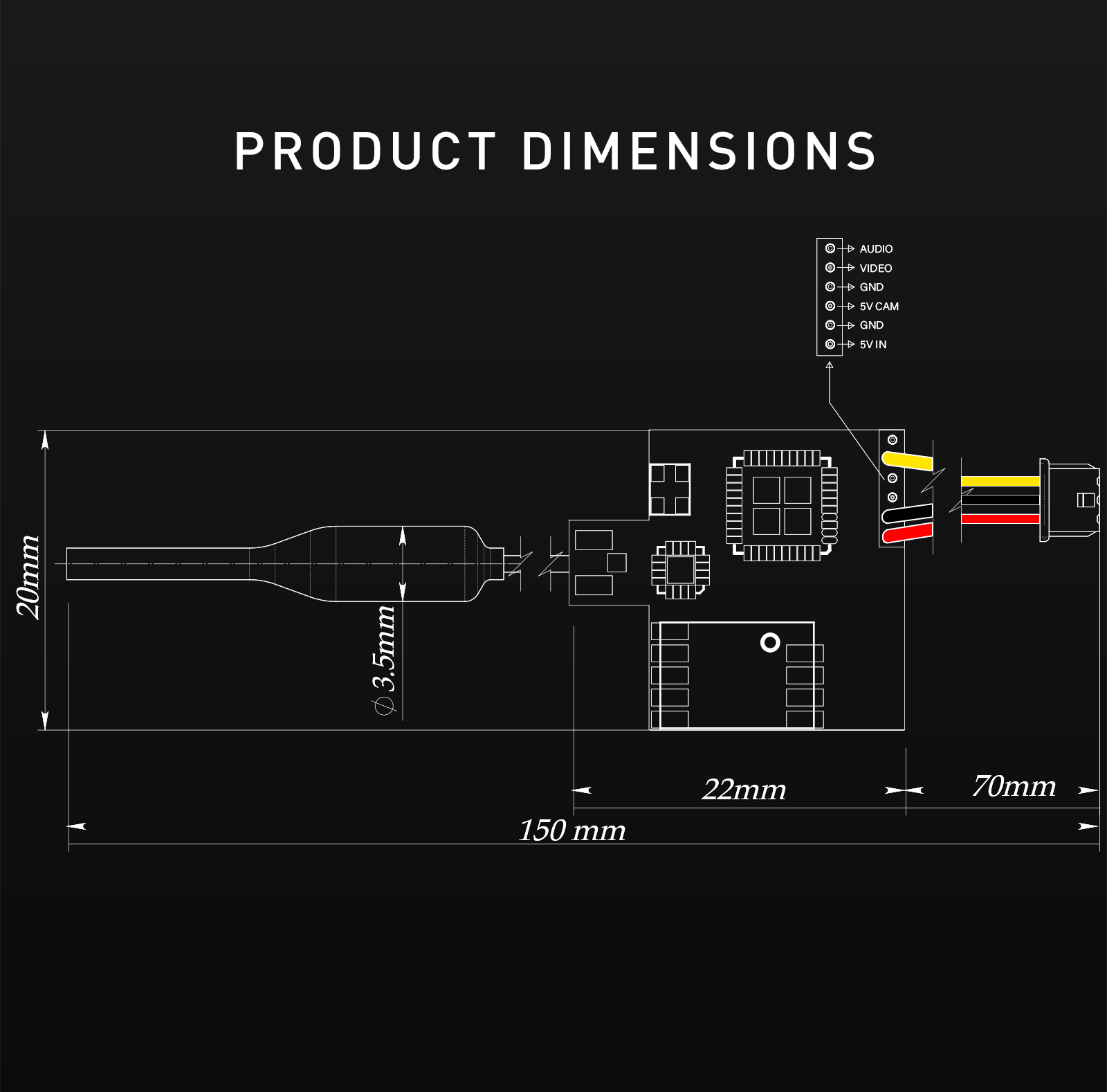

Antenna dimensions:65mmx3.5mm diameter
Antenna: lPEX
Frequency: 5.8GHz 9 bands 72 channels, with Raceband: 5325-5945 MHZ
Size: 21.8*19.80mm(L*W)
Weight: 3g

Model:VTX03 5.8G 72CH
