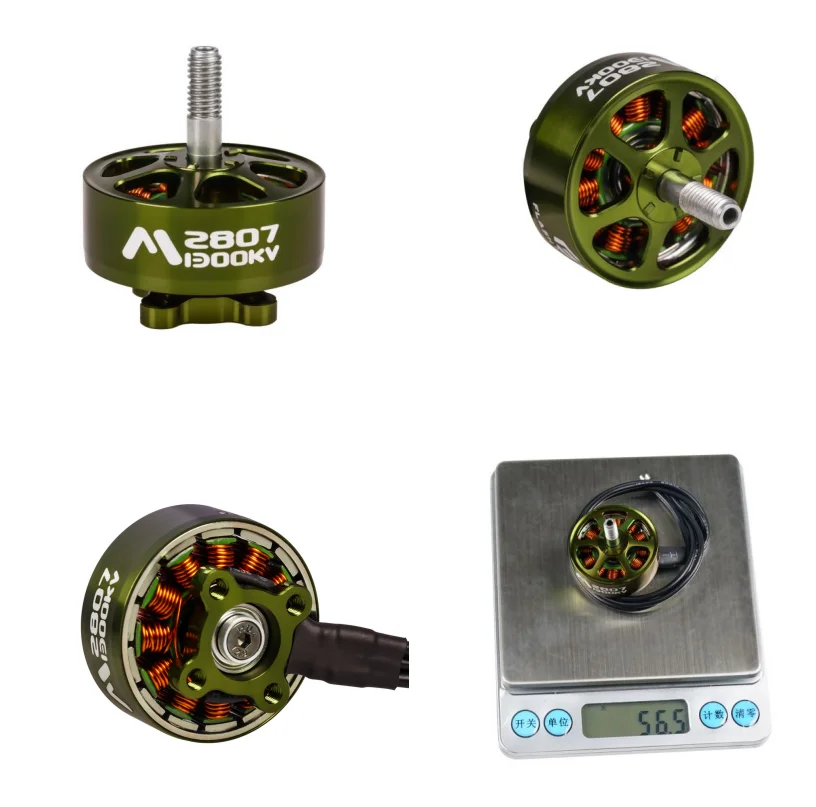

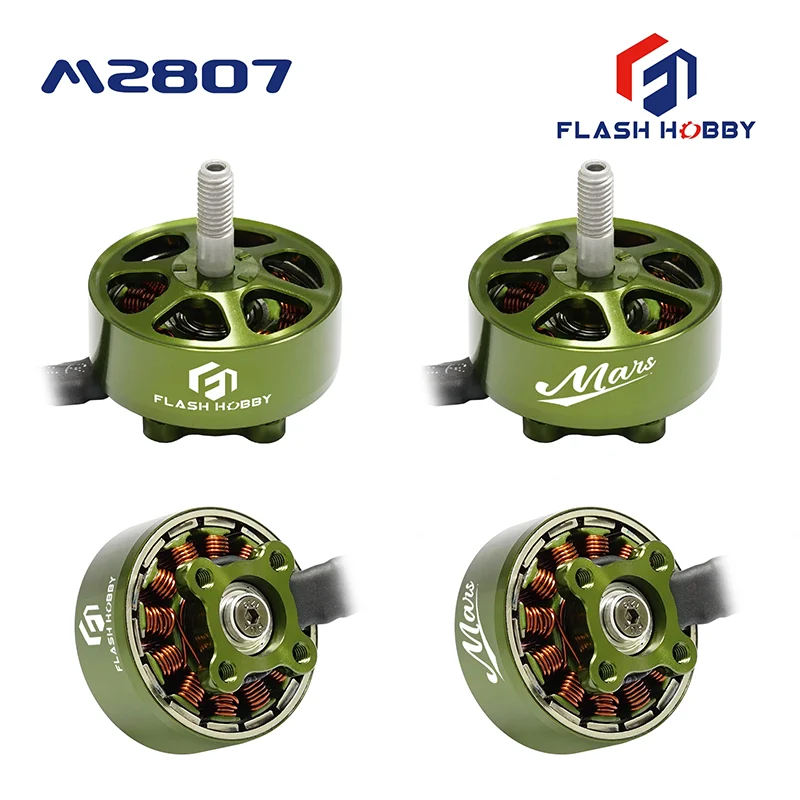

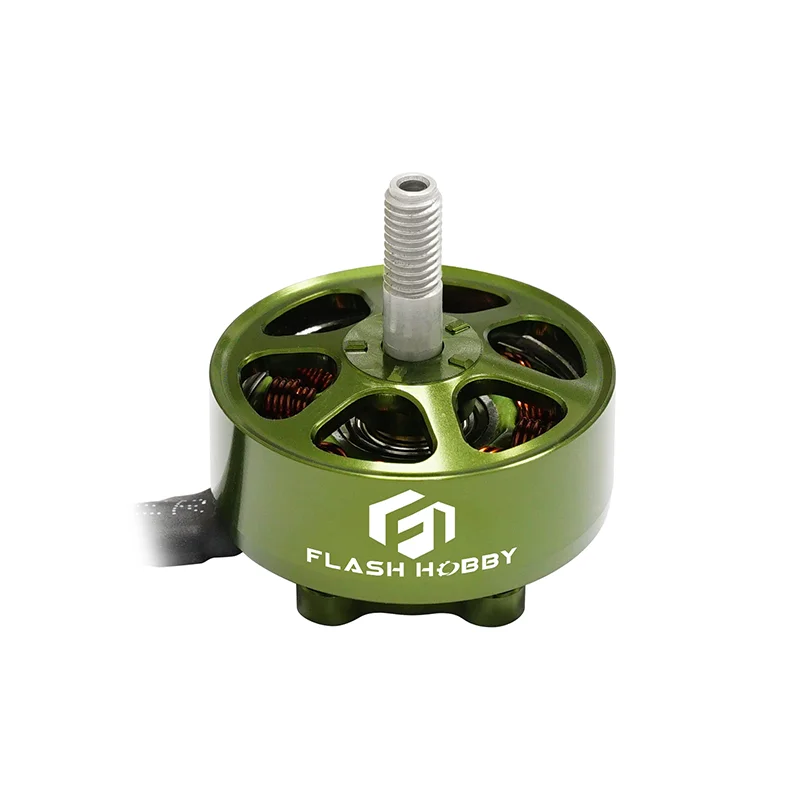

M2807 Motor

Flash Hobby is a world brand manufacturer and supplier in China. We have been specialized in Motors, ESCs and Servos for many years, supplying high quality RC solutions for many famous brands. Our star product M2807 is loved by customers all over the world and reaps a large number of favorable comments, which opens the door for our FPV series products.

Send Inquiry

Product Description

The M2807 1300KV motor is one of our most cost-effective products, utilizing an integrated structure and N52H magnets for unparalleled speed, dynamic balance and endurance, and can be adjusted according to your flight requirements for motor performance and KV. The M2807 is a unique product, say goodbye to worries about overheating or burning up during flight, and bring you a different flight experience.

M2807 Specification

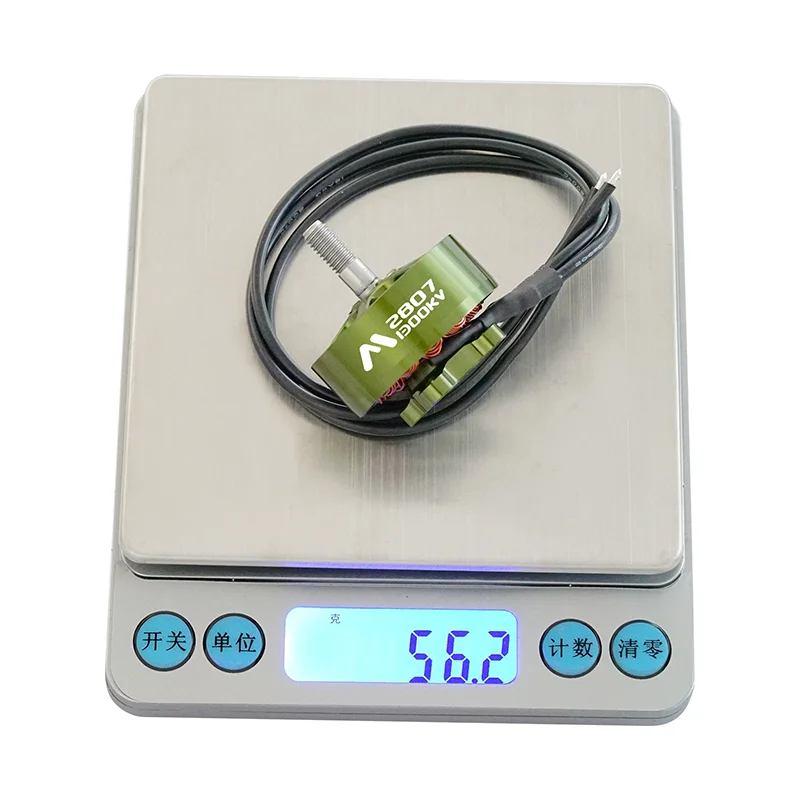

KV	KV1300	Weight(incl cable)	56.3g

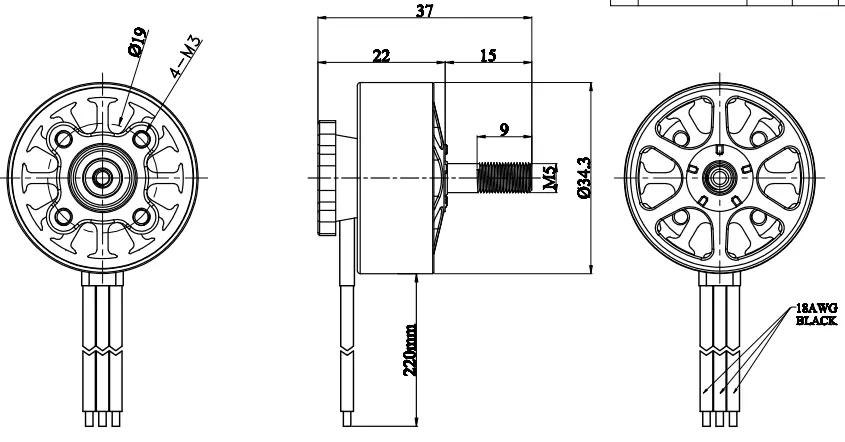

Motor Dimension	34.3x22 mm	resistance	0.071Ω
Motor Cable	18#AWG 220mm	Configuration	12N14P
Shaft Dia	5mm	Rated Voltage（Lipo)	3-6S
current no load	1.43/16V	Peak Current（60S）	46.13A
Max Power	1153.20W	Max Pull	2238g

MOTOR TECHNICAL DATA:

ltem NO.	Prop	Thrott1 e	Volts (V)	Amps (A)	Watts (W)	Revol ution (RPM)	Thrust (g)	Efficiency (g/W)	Operating temperature(℃)
M2807- 1300KV	HQ7537	50%	25.34	9.92	251.5	13428	835	3.32	55.0℃
		60%	25.29	15.61	394.8	15448	1144	2.90
		70%	25.22	22.42	565.4	16861	1374	2.43
		80%	25.15	29.41	739.6	18436	1619	2.19
		90%	25.08	37.59	942.8	19612	1781	1.89
		100%	25.00	46.13	1153.2	20380	1938	1.68
M2807- 1300KV	GF7040	50%	25.35	8.53	216.2	13971	815	3.77	49.7℃
		60%	25.31	13.45	340.3	16117	1090	3.20
		70%	25.25	19.42	490.2	17799	1353	2.76
		80%	25.18	26.76	673.9	19585	1662	2.47
		90%	25.10	34.79	873.2	21004	1926	2.21
		100%	25.02	43.51	1088.9	22031	2145	1.97
M2807- 1300KV	FH7035- 3R	50%	25.35	8.77	222.3	13851	818	3.68	51.2℃
		60%	25.30	13.86	350.6	15981	1137	3.24
		70%	25.24	19.93	503.1	17667	1398	2.78
		80%	25.17	27.26	686.3	19437	1748	2.55
		90%	25.10	35.30	885.9	20672	2024	2.28
		100%	25.02	43.90	1098.3	21741	2238	2.04
Notes:The test condition oftemperature is motor surface temperature in 100%throttle while the motor run 15 s.environment temperature 26℃
